Interruttore DELOCK 22023 19 mm 12 V con 5 terminali a saldare

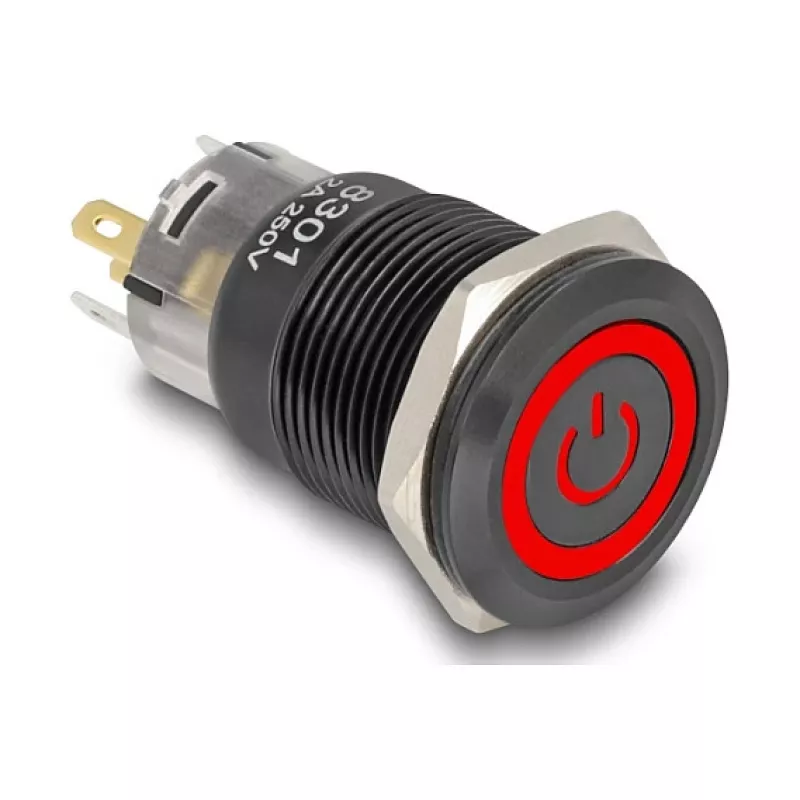

The DELOCK 22023 is a mechanical panel switch with a 19 mm diameter actuator designed for 12 V applications. It features five solder connection terminals for straightforward wiring and is intended for use in control panels, automotive installations, and electronics projects that require a compact manual on/off or multi-connection switching solution. The switch is built for panel mounting and offers a simple mechanical actuation mechanism suitable for frequent manual operation and easy replacement during maintenance.

Advantages

This 19 mm panel switch supports 12 V operation and provides five solder terminals that simplify permanent wiring and custom connections. Its mechanical design delivers tactile feedback for clear on/off actuation. The compact round actuator and standard panel mount format make it compatible with tight spaces and common control panel layouts. Solder connections ensure low-resistance joints for stable electrical contact when correctly assembled by a skilled technician.

Suitable for

• Control panels and operator consoles
• Automotive and vehicle electrical systems (12 V)
• DIY electronics and hobby projects requiring a compact manual switch
• Repair or replacement of similar-sized panel switches

Key specifications

• Actuator diameter: 19 mm
• Rated voltage: 12 V
• Contact style: mechanical on/off with multiple connections

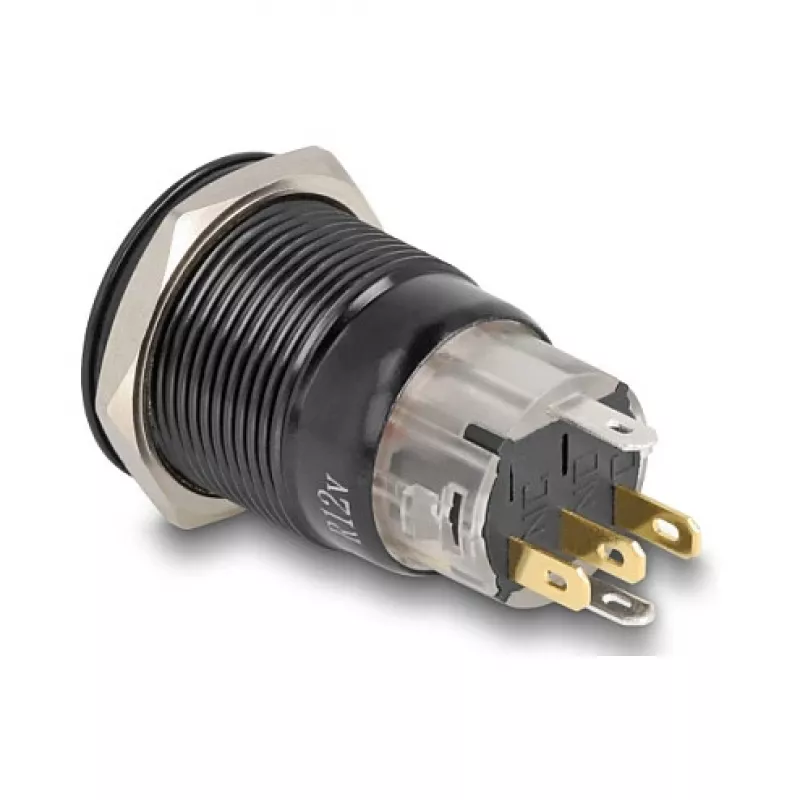

• Connection type: solder terminals (5 contacts)
• Mounting: panel mount (round cutout compatible)

How to use

Prepare the panel cutout to fit a 19 mm round actuator and secure the switch according to the panel mounting method. Route the wiring and tin lead ends before soldering to the five solder terminals, ensuring correct polarity and contact arrangement for your application. After soldering, inspect joints for cold solder or bridging and test the switch operation at 12 V under the intended load. If installed in a vehicle, isolate the battery or power source before wiring and verify fuse protection suitable for the circuit.

Recommendations

Use appropriate soldering technique and strain relief for connected wires to prevent mechanical stress on solder joints. Verify compatibility with the intended current and load; if higher currents or inductive loads are expected, add suitable protection such as relays or fuses. Follow safety procedures when working on automotive electrical systems and ensure secure panel mounting to prevent loosening during vibration.
