Interruttore luce Shelly Wall Switch 1 nero

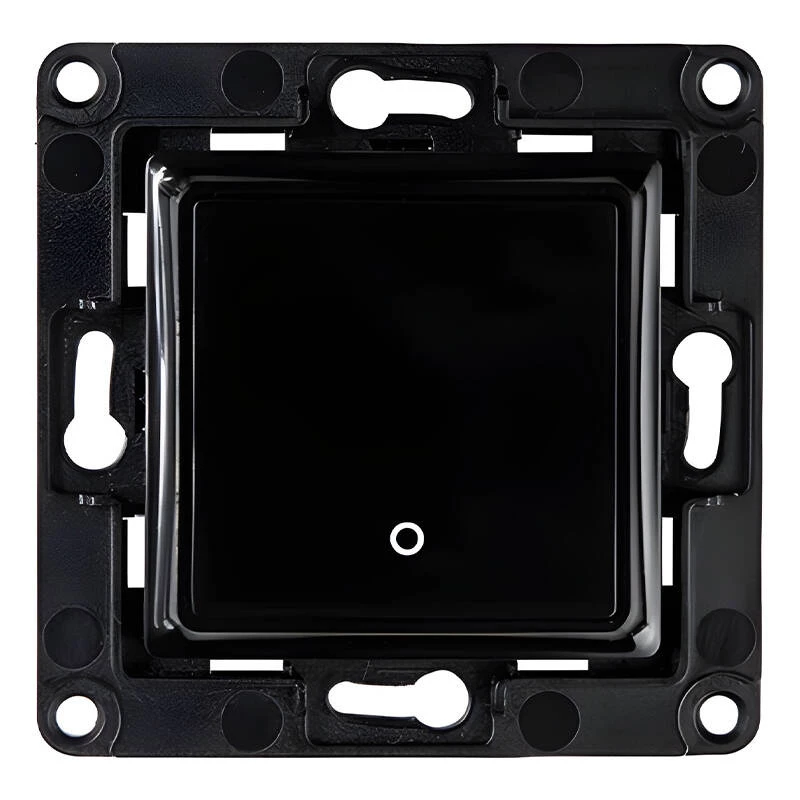

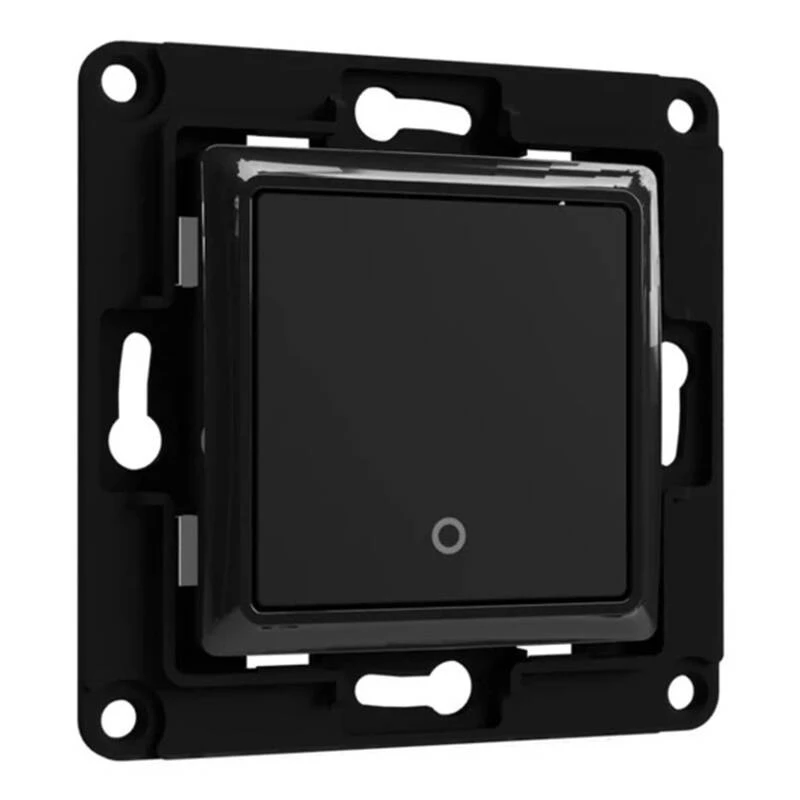

The Shelly Wall Switch 1 Black is a one-button wall switch designed to work with Shelly smart relays. It accepts attachable relay holders compatible with multiple Shelly relay models (Shelly 1 / 1PM, Shelly Plus 1 / Plus 1PM, Shelly 1L / Dimmer 2). The switch measures 70 mm wide, 80 mm high and 12 mm deep, and is designed to fit into existing switch consoles without additional wiring. Wall frames and relays are sold separately.

Advantages

The compact design allows installation in tight spaces and existing switch panels without expanding wall openings. It functions as a normal manual switch while also supporting control through a home automation system when paired with the appropriate Shelly relay. The attachable relay holders provide compatibility with several Shelly relay models, enabling flexible integration and potential cost savings.

Suitable for

• Replacing or upgrading a standard single-button light switch
• Integrating a manual switch into a Shelly-based smart home setup
• Installations with limited space behind the switch panel

Key specifications

• Model: Shelly Wall Switch 1 Black
• Button control type: 1 button
• Dimensions (W×H×D): 70 mm × 80 mm × 12 mm
• Compatible relay holders: Shelly 1 / 1PM, Shelly Plus 1 / Plus 1PM, Shelly 1L / Dimmer 2
• Wall frames and relays: sold separately
• Brand: Shelly
• MPN: WS1 black
• EAN: 3800235266168

How to use

Mount the Shelly Wall Switch 1 into an existing switch console and attach the appropriate relay holder for the Shelly relay you plan to use. Connect the selected Shelly relay according to the relay’s wiring instructions; no extra wiring for the switch itself is required. The switch operates manually as a standard push button and can also be controlled remotely once the relay is installed and configured in your home automation system.

Recommendations

Use the switch with the matching Shelly relay holder for reliable operation and follow the relay manufacturer’s wiring and safety instructions. Ensure power is turned off during installation and verify compatibility of the chosen relay model before purchase.
