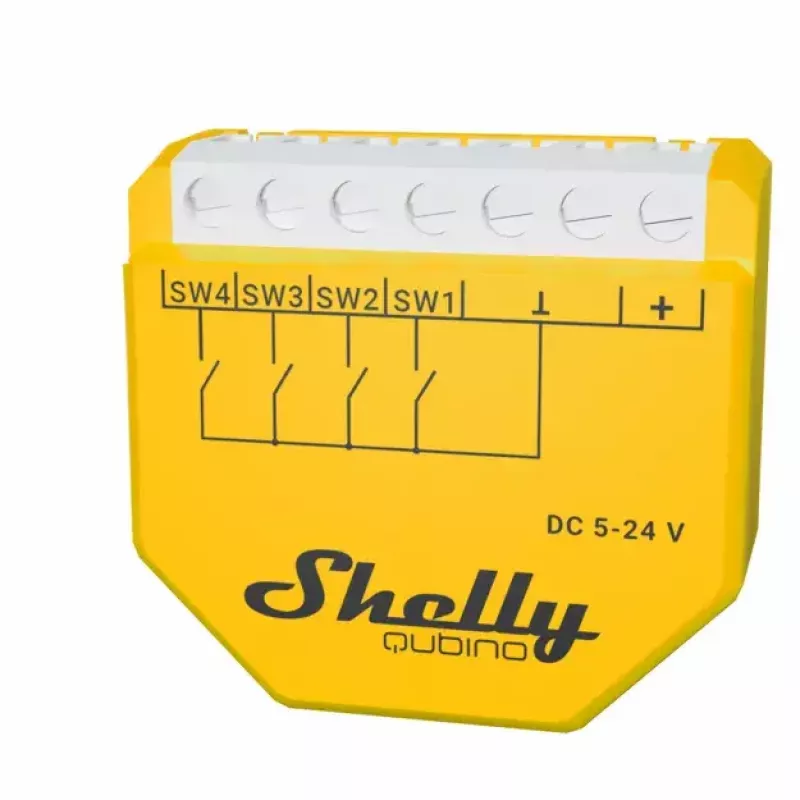

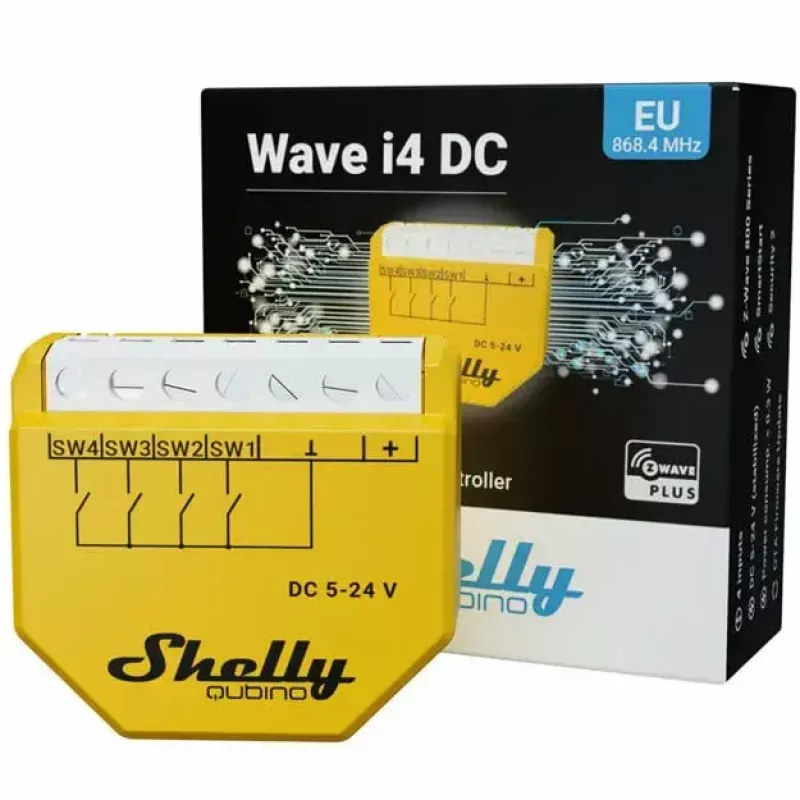

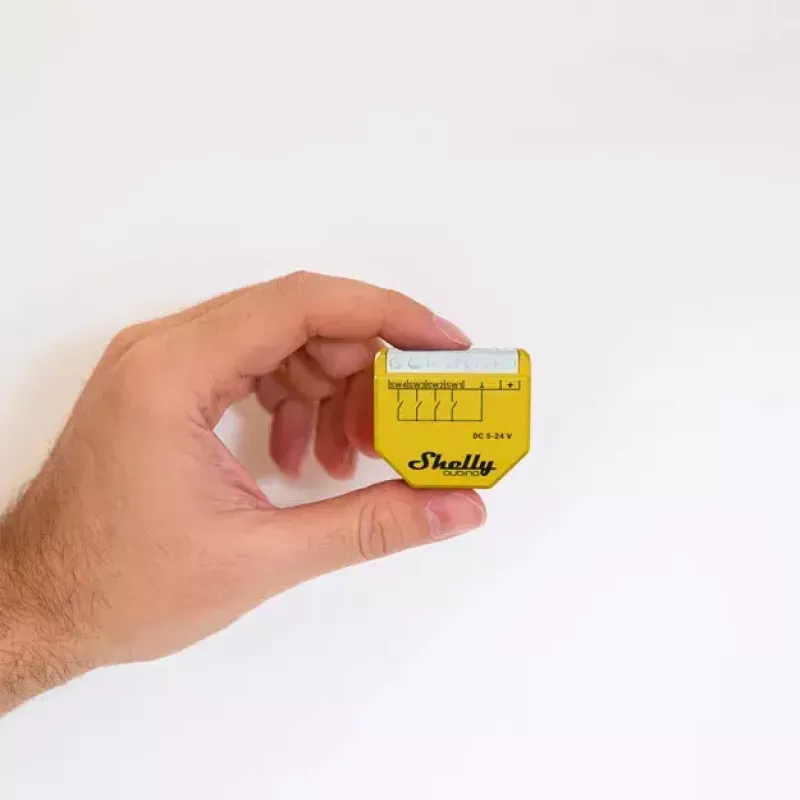

Interruttore smart Shelly Qubino Wave i4 DC giallo wireless 5-24V

The Shelly Qubino Wave i4 DC is a compact Z-Wave wireless controller designed to provide manual control of scenes and other Z-Wave devices. Small enough to fit behind wall switches, it monitors and controls four inputs, supports multi-click actions and associations, and operates on low-voltage DC supply. The device is compatible with the latest Z-Wave S800 chip generation and works with any certified Z-Wave gateway.

Advantages

Wave i4 DC enables manual activation or deactivation of created scenes, synchronized actions and complex trigger scenarios, while allowing direct device-to-device associations without a hub. It supports up to 12 different actions via multi-click, can establish up to 8 associations, and fits into retrofit installations behind conventional switches. The unit is energy-efficient, supports wide voltage ranges and is interoperable with thousands of Z-Wave certified devices.

Suitable for

• Retrofit installation behind existing wall switches or push-buttons
• Manual control of lighting, blinds, outlets and other Z-Wave devices
• Homes or buildings using a Z-Wave gateway for scene management
• Direct device associations when operating without a gateway

Key specifications

• Brand: Shelly (Qubino)
• Model / MPN: Wavei4DC
• EAN: 3800235269084
• Protocol: Z-Wave (S800 generation)
• Inputs: 4 digital inputs
• Power supply: designed for low-voltage DC (5–24 VDC); device also noted to support 110–240 V AC in documentation — follow installation instructions
• Dimensions (from product data): 37 × 42 × 16 mm
• Power consumption: 0.3 W (typical)
• Multi-click / multi-action: up to 12 possible actions; up to 3 automation actions per button
• Associations: up to 8 triggered actions (2 associations per button)

How to use

Install Wave i4 DC into the switch box behind a wall switch or push-button according to local electrical codes and the product wiring diagram. Include the device into your Z-Wave network using a compatible gateway to enable remote control and scene configuration. Configure multi-click actions, scene activations and associations through your Z-Wave gateway or directly assign associations to other Z-Wave devices to operate without a hub. Use single click, double click or long press to trigger different scenes or device actions.

Recommendations

Follow the manufacturer’s wiring diagram and safety instructions during installation. Verify voltage requirements for your specific setup (5–24 VDC for low-voltage installations or 110–240 VAC if applicable) and ensure compatibility with your Z-Wave gateway and other devices before finalizing associations or scenes.
