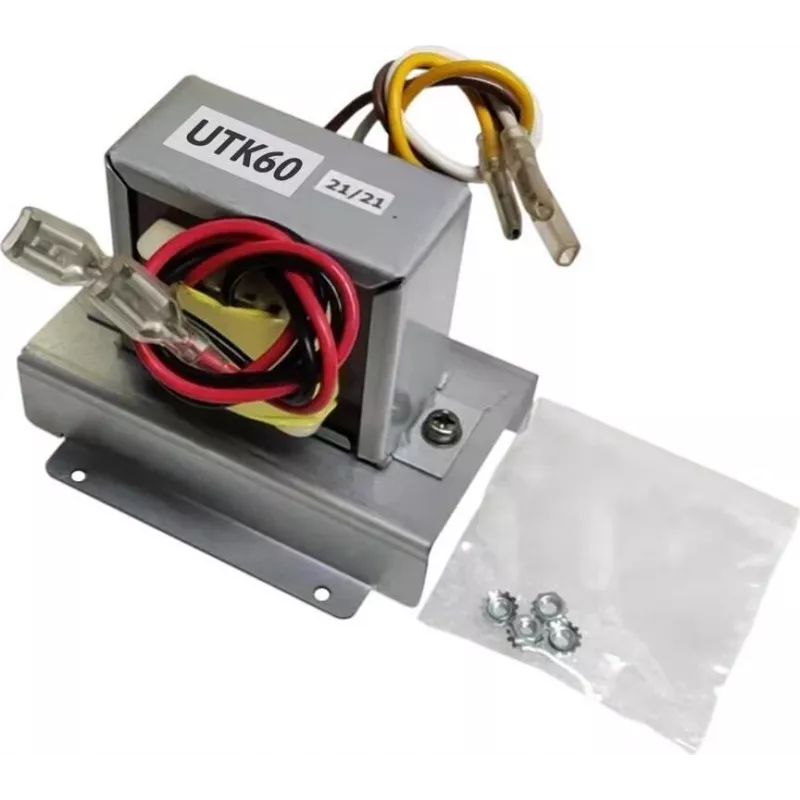

INTUSONIC UTK60 kit trasformatore di linea 100V 60W per altoparlanti da 8 ohm 12604181

The INTUSONIC UTK60 is a 100V line transformer kit that adapts low-impedance 8-ohm speakers for use in constant-voltage PA and background music systems. Unlike many transformers that are limited to a single power tap, this 60W unit provides a straightforward impedance-matching solution for commercial audio installations.

Highlights

• 60W RMS power handling for medium-sized speaker loads
• 100V constant-voltage input for distributed audio lines
• 8-ohm output matches standard low-impedance speakers
• Screw terminal connections for secure wiring
• Passive design requires no external power

In daily use

Install the UTK60 inside a speaker cabinet to connect an 8-ohm loudspeaker to a 100V PA line. The transformer steps down the high line voltage to a safe level for the speaker, enabling long cable runs without significant signal loss. It is suitable for background music in shops, restaurants, and offices, as well as public address announcements.

Full specifications

• Product type: 100V line transformer kit
• Transformer type: Constant voltage (ELA)
• Power rating (RMS): 60 W
• Input voltage: 100 V
• Output impedance: 8 Ohm
• Channels: Single channel
• Connection type: Screw terminals
• Function: Impedance matching
• Audio signal path: Passive
• Target speaker type: Passive 8 Ohm loudspeakers

Final note

The UTK60 is a practical choice for integrators who need a reliable transformer for 100V line speaker adaptation.
