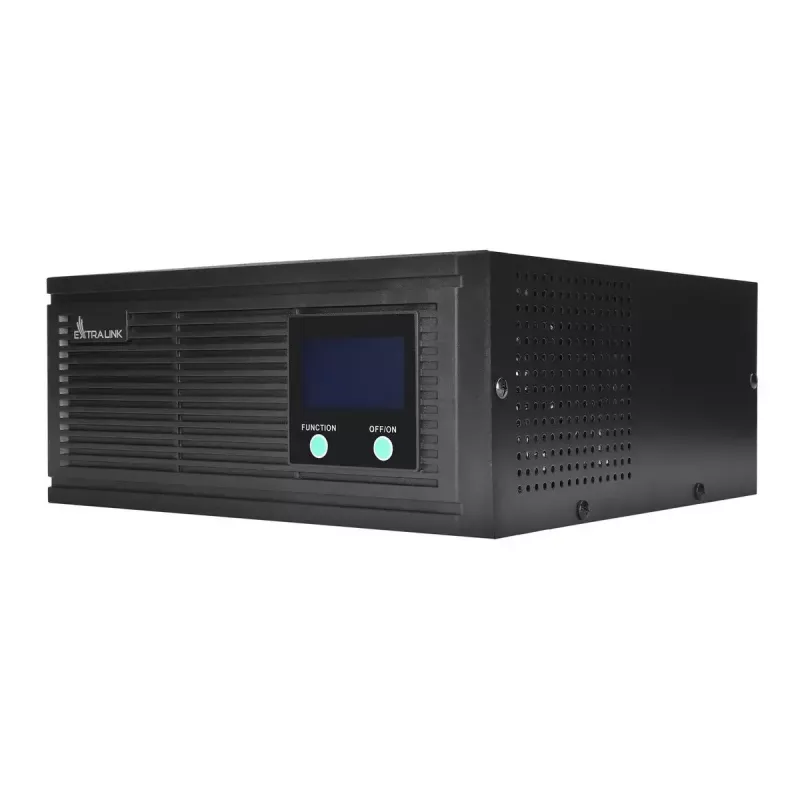

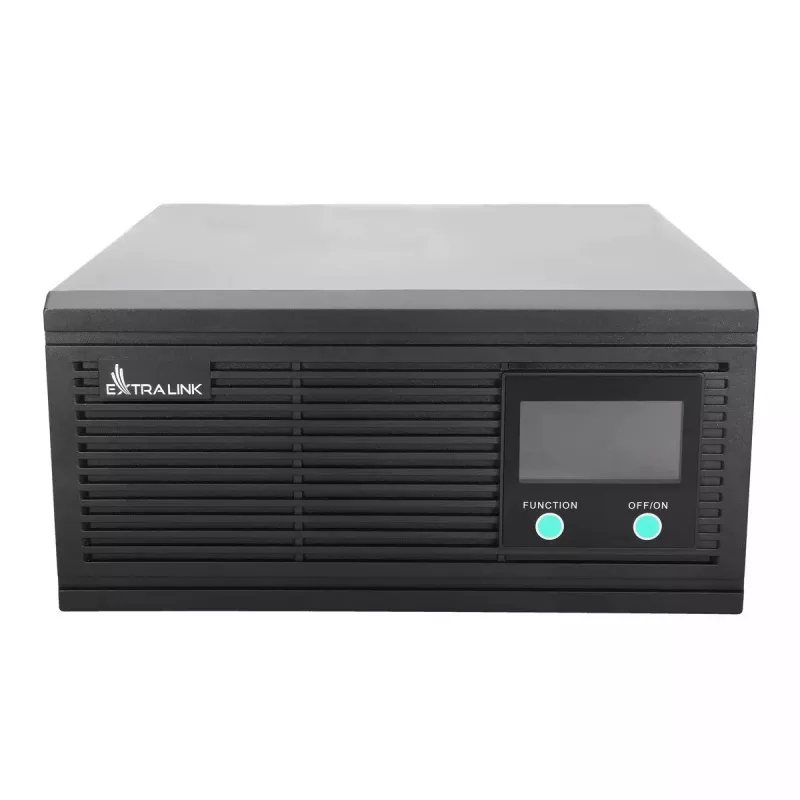

Inverter di potenza Extralink Piorun 3000VA 2100W sinusoidale pura 24VDC

The Extralink Piorun 3000VA 2100W pure sine wave inverter is a 24VDC power inverter designed for universal use where stable AC power is required from a DC battery source. It delivers a true sine wave 220V output and includes active cooling in a compact ABS and metal housing. With dimensions of 435mm (W) × 245mm (D) × 185mm (H) and a weight of 18.05 kg, the unit is suitable for stationary installations that need reliable conversion from 24V battery systems to mains-grade AC.

Advantages

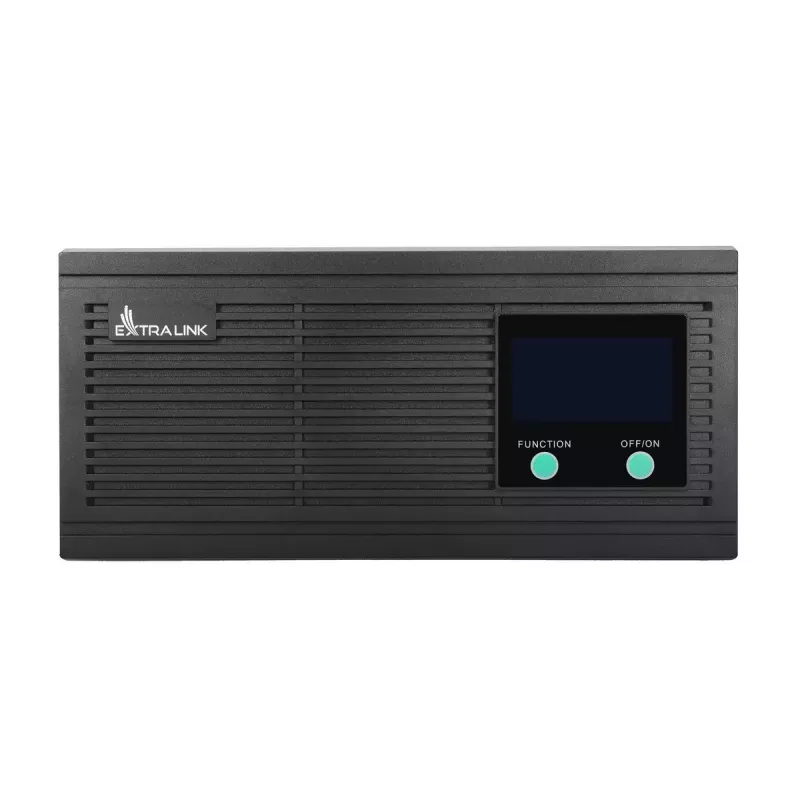

The pure sine wave output matches grid-quality AC, making the inverter compatible with sensitive electronics and inductive loads. Built-in multi-level protection covers overload, overvoltage, undervoltage, short circuit and over-temperature conditions to protect both the inverter and connected devices. An integrated LCD provides real-time monitoring of input voltage, output voltage, battery charge level and load. The combination of metal and ABS casing and active cooling improves durability and thermal performance for continuous or intermittent operation.

Suitable for

• Home backup systems and UPS configurations with 24V battery banks
• Powering sensitive electronics such as laptops, TVs and medical or laboratory equipment that require pure sine wave power
• Small office equipment including routers, servers and network devices
• Refrigeration, pumps and other inductive appliances compatible with a 220V supply

Key specifications

• Rated output power: 2100 W (continuous)
• Surge capacity: 3000 VA
• DC input voltage: 24 VDC
• AC output voltage: 220 V (pure sine wave)
• Input voltage operating range: nominal 24 V with supported 145–275 V AC sensing range
• Cooling: active cooling (fan)
• Enclosure: ABS and metal housing; product colour: black
• Dimensions (W × D × H): 435 × 245 × 185 mm
• Weight: 18.05 kg

How to use

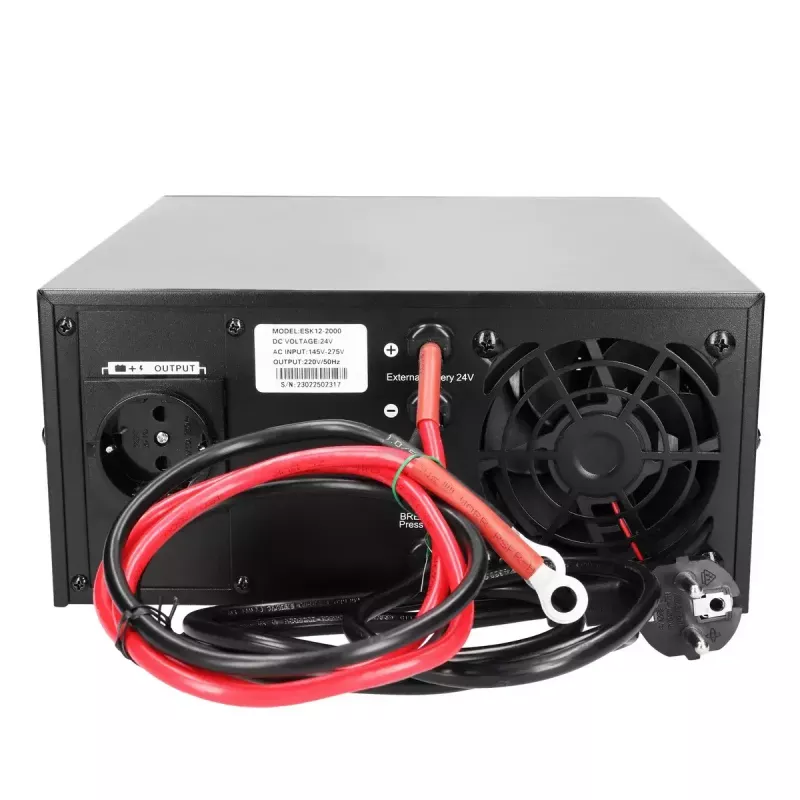

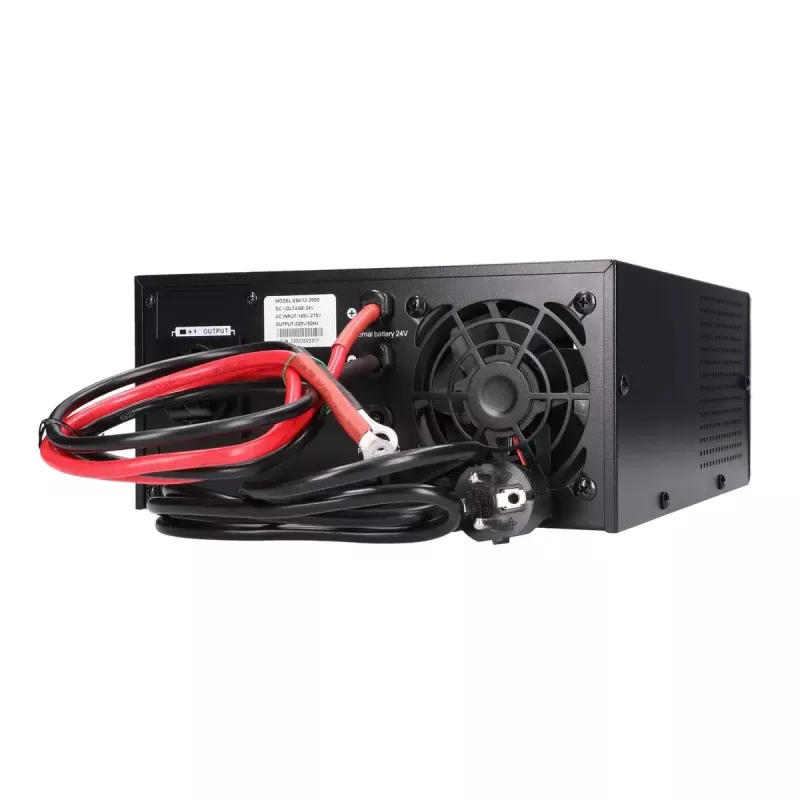

Install the inverter on a flat, stable surface with adequate ventilation for the fan; keep clearance around the unit to ensure airflow. Connect a correctly sized 24V battery bank to the DC input following polarity markings and manufacturer safety procedures. Connect AC loads to the inverter's output terminals or outlets, ensuring the total connected load does not exceed the rated continuous power. Use the LCD to monitor input and output voltages, battery charge level and load; verify settings and status before placing sensitive equipment on the inverter. When used as a UPS with compatible 24V batteries, the inverter charges the battery while mains are present and automatically switches to battery supply during an outage.

Recommendations

For safe and reliable operation, use batteries and cabling sized for the inverter's current draw and keep the inverter in a dry, ventilated environment. Avoid sustained loads near the maximum rating to reduce thermal stress, and periodically check the cooling fan and ventilation openings for dust. For UPS applications, pair the inverter with Extralink 24V batteries or equivalent high-quality batteries and configure appropriate battery management and fusing to protect against short circuits and overcurrent conditions.
