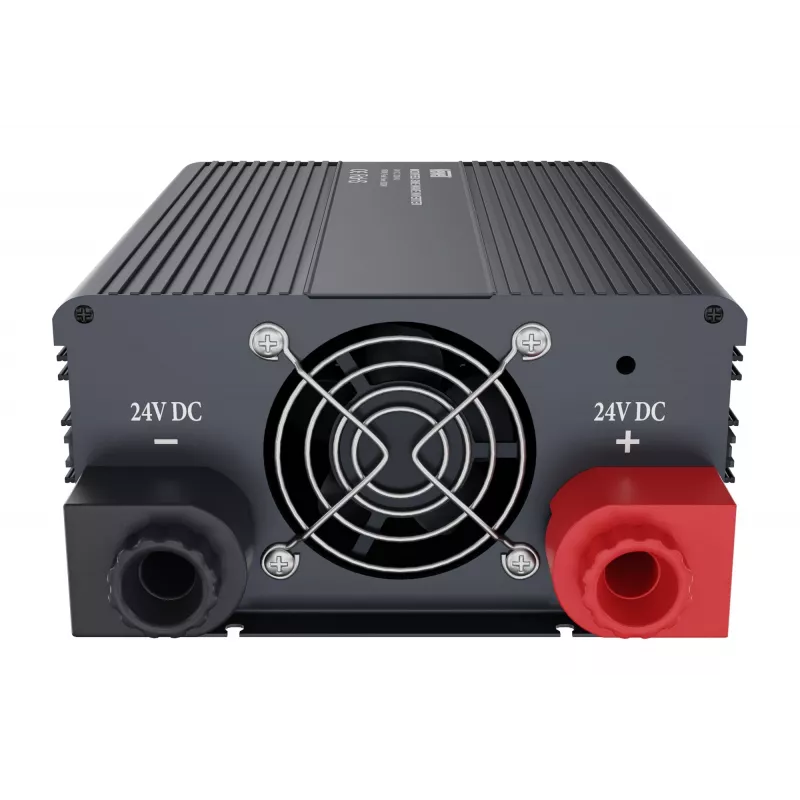

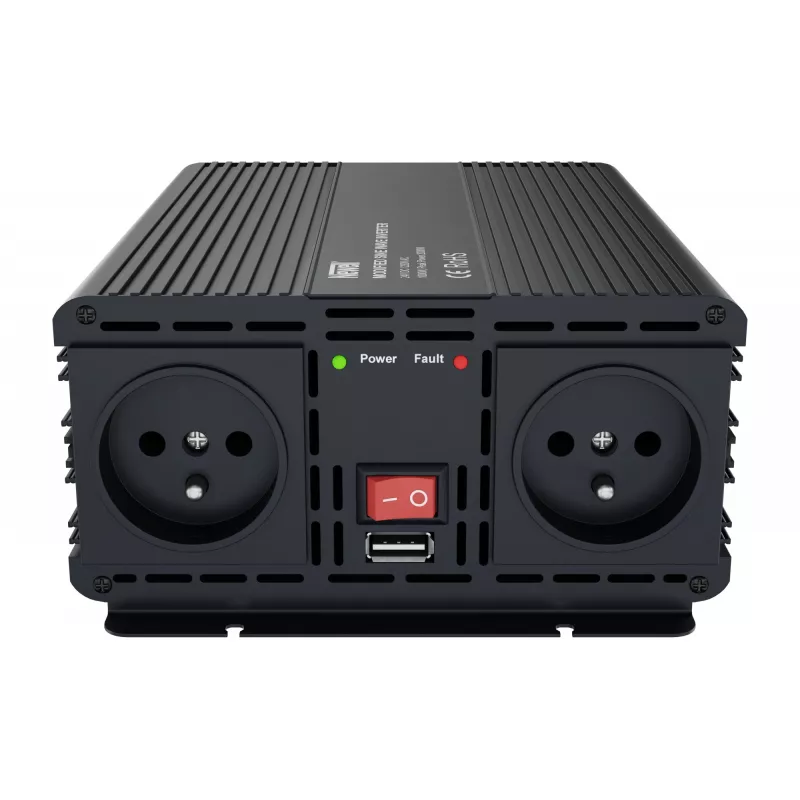

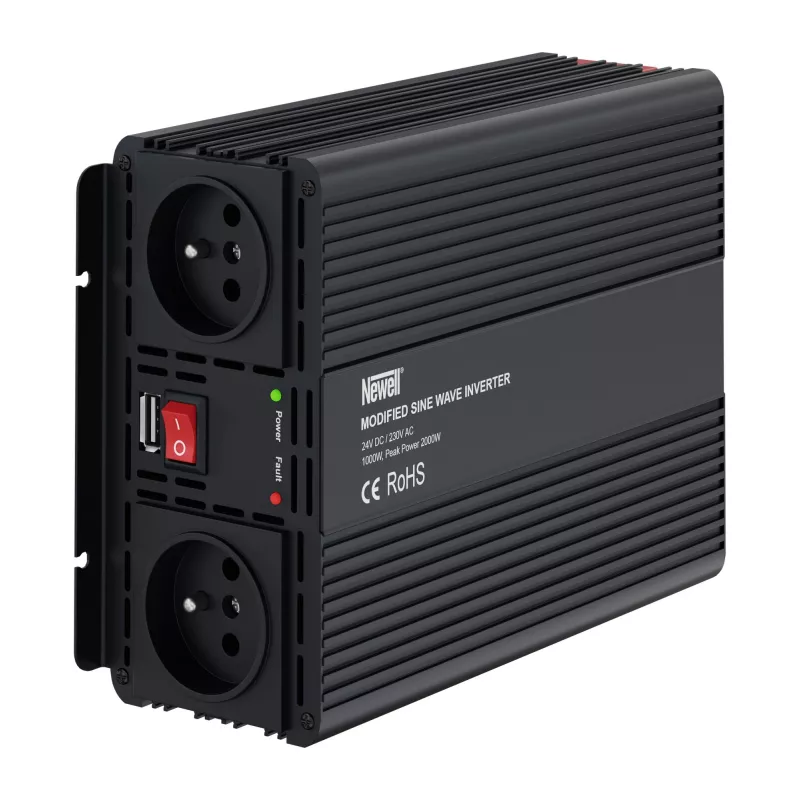

Inverter di potenza Newell a onda sinusoidale modificata - 24 V / 230 V, 1000 W

The Newell Modified Sine Wave Power Inverter converts 24V DC battery power to 230V AC, providing a reliable power source for your electronic devices. With a continuous output of 1000W and a peak surge of 2000W, it is ideal for use in caravans, boats, trucks, and off-grid systems. The modified sine wave output is compatible with most household appliances and power tools.

Advantages

High efficiency of over 85% ensures minimal power loss. Multiple protection features including low voltage alarm and shutdown, over voltage shutdown, overload, short circuit, over temperature, and reverse polarity protection (via fuse) safeguard your devices and the inverter. Intelligent cooling fan adjusts speed based on temperature for quiet operation.

Suitable for

• Caravans and motorhomes
• Boats and yachts
• Trucks and commercial vehicles
• Off-grid solar systems
• Emergency backup power

Key specifications

• Input Voltage: 24V DC
• Output Voltage: 230V AC
• Continuous Power: 1000W
• Peak Power (Surge): 2000W
• Output Waveform: Modified Sine Wave
• Output Frequency: 50 Hz
• Efficiency: >85%
• Low Voltage Alarm: 21.5V ± 0.5V
• Low Voltage Shutdown: 20.5V ± 0.5V
• Over Voltage Shutdown: 30V ± 0.5V
• Protections: Overload, Short Circuit, Over Temperature, Reverse Polarity (fuse)
• Cooling: Intelligent Cooling Fan
• Output Socket: 1x Schuko
• Input Connection: DC Battery Terminals
• LED Indicators: Power, Fault
• Operating Temperature: -10°C to 50°C
• Certifications: CE, RoHS

Recommendations

For optimal performance, use with a deep-cycle battery and ensure proper ventilation. The inverter is not suitable for sensitive electronic devices requiring pure sine wave (e.g., some medical equipment, variable speed tools).
