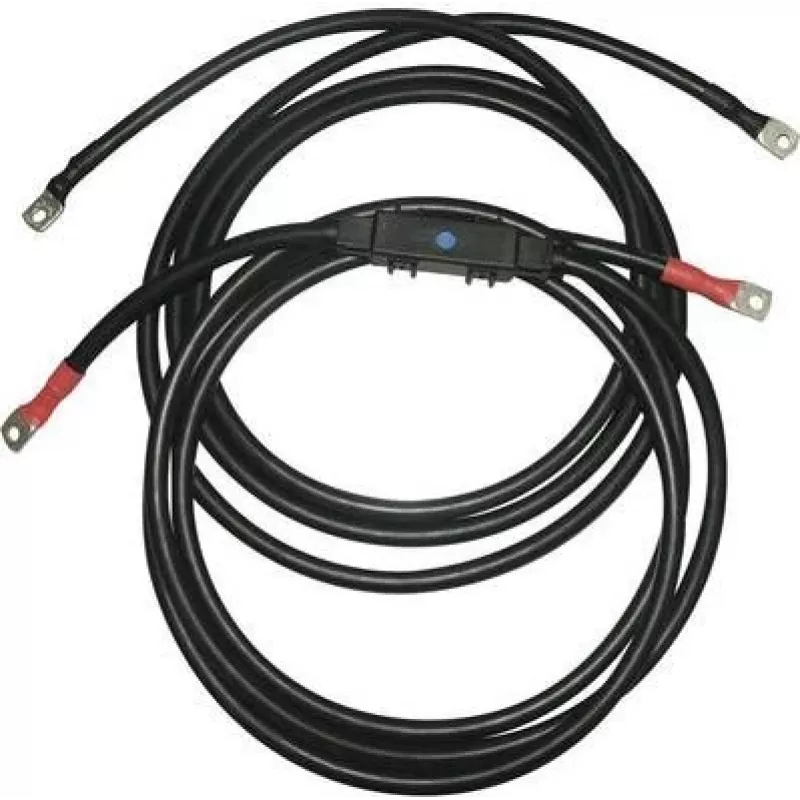

IVT set di cavi di collegamento batteria 2m 35mm² per inverter serie SW 2000W (421005)

Connecting a high-power inverter to a battery demands cables that can handle heavy current without voltage drop or overheating. The IVT 421005 cable set provides the robust link your IVT SW-Series 2000W inverter needs, ensuring reliable power delivery from battery to inverter in 12V, 24V, or 48V DC systems.

Who is it for

This cable set is for installers and DIY users setting up IVT SW-Series 2000W inverters in vehicles, boats, off-grid solar systems, or backup power stations. If you need a secure, low-resistance connection between your battery bank and inverter, these cables are essential.

Main features

• 2-meter length with 35 mm² cross-section for minimal voltage drop
• High-purity copper conductors for maximum conductivity
• Red and black PVC-insulated cables for easy polarity identification
• Pre-attached M10 ring terminals on both ends for quick, secure connections
• Supports continuous current up to 200A (2400W at 12V)

Specifications

• Product type: Battery connection cable set
• Compatibility: IVT SW-Series 2000W power inverters
• Cable length: 2 meters (200 cm)
• Cable cross-section: 35 mm²
• Conductor material: High-purity copper
• Number of cables: 2 (positive and negative)
• Cable colours: Red (positive), Black (negative)
• Terminal type: Ring terminals (M10 hole diameter)
• Max continuous current: 200 A
• Max power rating at 12V: 2400 W
• Insulation material: PVC
• Operating voltage: 12V / 24V / 48V DC systems

Tips

Always disconnect the battery before installing the cables. Ensure the ring terminals are tightly fastened to both the battery and inverter terminals to prevent resistance and heat buildup. Use cable glands or grommets when passing through bulkheads to protect the insulation.
