IWH Interruttore a bilanciere con illuminazione rossa 12V/24V 10A ON-OFF SPST 19029

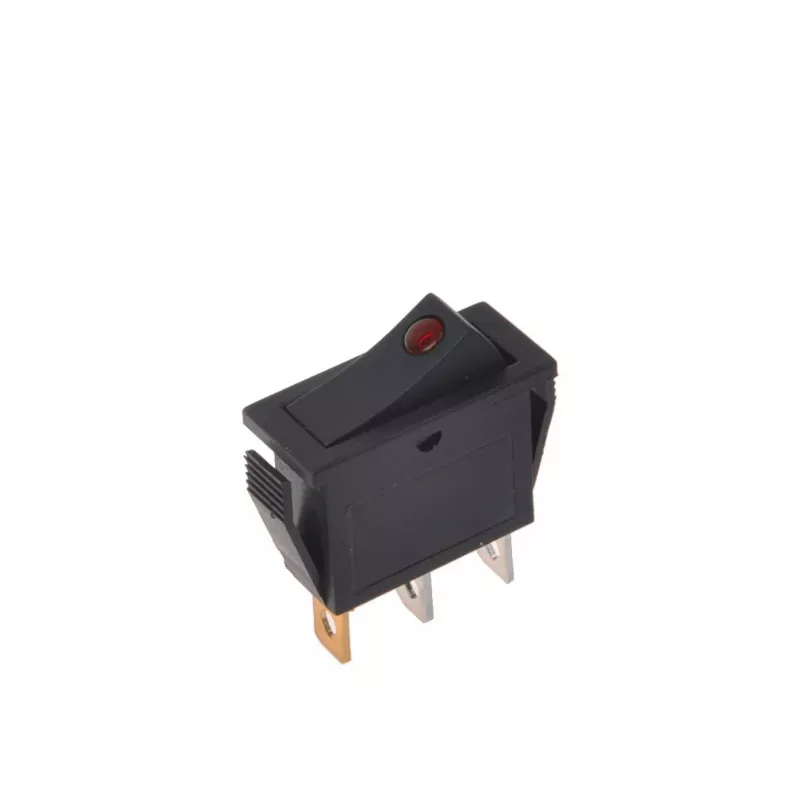

Controlling 12V or 24V circuits in vehicles, boats, or industrial panels often requires a switch that is both robust and easy to see in low light. This red illuminated rocker switch provides a clear ON-OFF operation and a built-in red indicator, so you can tell at a glance whether the circuit is live.

Who is it for

It suits automotive, marine, industrial, and DIY applications where a simple single-pole single-throw switch is needed. The red actuator and illumination make it especially useful for dashboards, control panels, or any setup where visual status matters.

Main features

• Rocker switch with ON-OFF function
• Single pole, single throw (SPST)
• Rated for 12V and 24V DC, up to 10A
• Red illuminated actuator for clear status indication
• Snap-in panel mounting with blade terminals (6.3mm)
• Operating temperature range: -20°C to +85°C

Specifications

• Switch type: Rocker switch
• Switching function: ON-OFF
• Number of poles: 1
• Number of throws: 1
• Operating voltage (DC): 12V / 24V
• Max current rating: 10 A
• Actuator colour: Red
• Illumination: Yes
• Illumination colour: Red
• Number of terminals: 3
• Terminal type: Blade terminals (6.3mm)
• Mounting type: Panel mount (snap-in)
• Panel cutout dimensions (W x H): approx. 21 x 30 mm
• Housing material: Plastic
• Operating temperature range: -20°C to +85°C
• Electrical life: >10,000 cycles
• Product contents: 1x rocker switch

Tips

Check the panel cutout dimensions before installation to ensure a proper snap-in fit. For 24V circuits, the switch handles the same 10A rating, but always verify your load does not exceed the maximum current.
