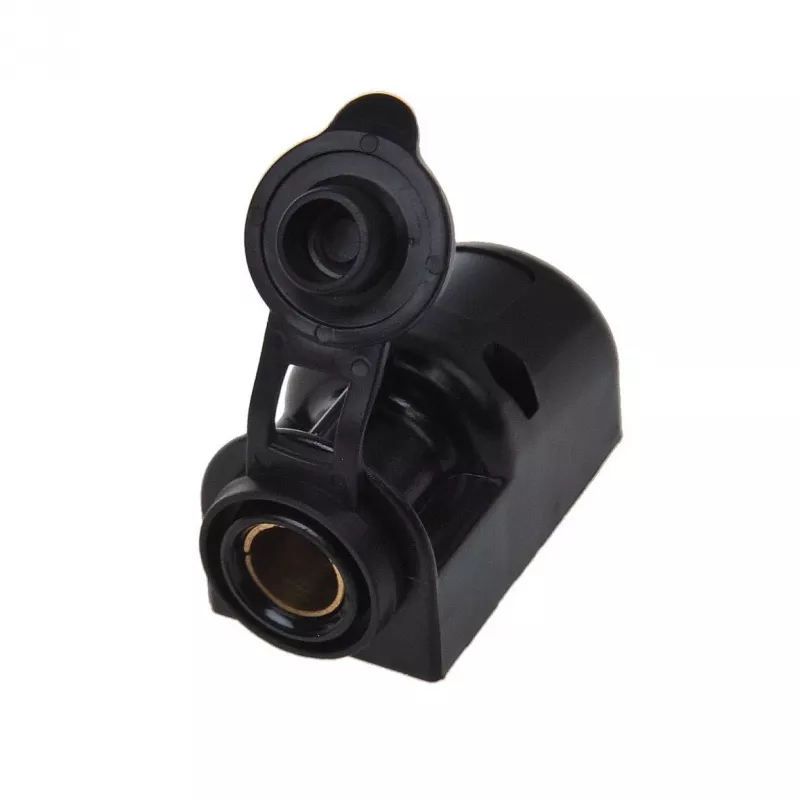

IWH presa DIN da parete 12/24V 16A nero 019009

Powering 12V or 24V devices in vehicles or boats often means dealing with flimsy sockets that can't handle higher currents. The IWH Surface-Mount DIN Socket solves this by providing a robust 16A connection point that mounts securely to any flat surface.

Who is it for

This socket is for anyone needing a reliable power outlet in a car, truck, caravan, boat, or other 12/24V DC system. It's especially useful for powering high-draw accessories like coolers, air compressors, or work lights.

Main features

• DIN (ISO 4165) socket standard for compatibility with DIN plugs
• High 16A current rating for demanding devices
• Surface-mount design with screw fixing for easy installation
• Integrated dust and splash cap protects the socket when not in use
• Durable plastic housing in black
• Screw terminals for secure wiring

Specifications

• Product type: Surface-mount power socket
• Socket standard: DIN (ISO 4165)
• Input voltage: 12V DC / 24V DC
• Max current: 16 A
• Number of sockets: 1
• Connection type: Screw terminals
• Housing material: Durable plastic
• Colour: Black
• Mounting type: Surface mount
• Internal socket diameter: approx. 12 mm

Tips

When installing, ensure the mounting surface is flat and clean. Use appropriate gauge wire for 16A loads to prevent voltage drop. The dust cap should be closed when the socket is not in use to keep out dirt and moisture.
