Jack Keystone schermato Cat.6A senza attrezzi Equip 767221

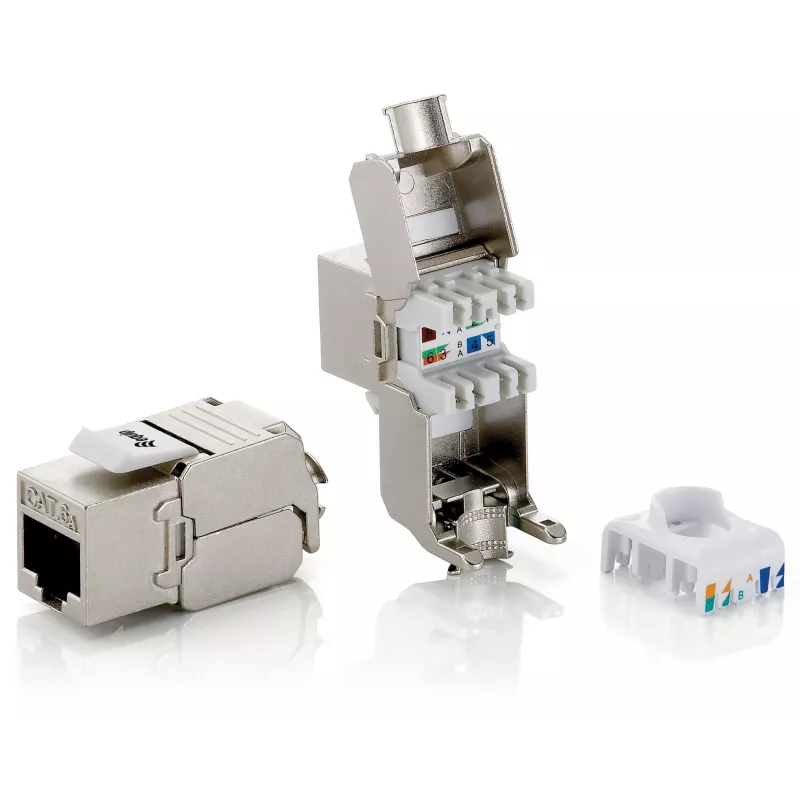

The equip® Cat.6A Shielded Keystone Jack Toolfree (model 767221) is a shielded RJ45 keystone connector designed for Cat.6A cabling installations. It features a metallic finish and gold-plated contacts and is compatible with faceplates, wall-mount outlets and patch panels. The jack conforms to ISO/IEC 11801 and EN 50173 standards and is intended for easy, tool-free installation in structured cabling systems.

Advantages

The shielded construction reduces electromagnetic interference for improved signal integrity, while gold-plated connector contacts ensure reliable conductivity and corrosion resistance. The toolless design allows quick installation without specialized tools. Compact dimensions (16 mm width, 20.1 mm depth, 37.8 mm height) make it compatible with standard keystone openings and convenient for use in dense patching environments.

Suitable for

• Cat.6A structured cabling installations
• Faceplates, wall-mount outlets and patch panels
• Environments requiring enhanced EMI/RFI protection
• Quick on-site terminations without tools

Key specifications

• Brand: EQUIP
• Model / MPN: 767221
• EAN: 4015867176528
• Category: Cat.6A shielded keystone jack
• Connector type: RJ45, shielded
• Contacts: gold-plated
• Standards: ISO/IEC 11801, EN 50173
• Installation: tool-free
• Dimensions: 16 mm (W) x 20.1 mm (D) x 37.8 mm (H)

How to use

Prepare the Cat.6A cable according to standard termination practice, insert the conductors into the jack following the colour code printed on the module, and engage the toolless termination mechanism to secure the wires. Snap the keystone jack into the faceplate, wall outlet or patch panel until it clicks into place. Verify continuity and performance with appropriate network test equipment after installation.

Recommendations

Use shielded cables and ensure correct grounding of the outlet, faceplate or patch panel to maintain the effectiveness of the jack's shield. Test the connection after installation to confirm Cat.6A performance and inspect contacts periodically in high-humidity or corrosive environments.
