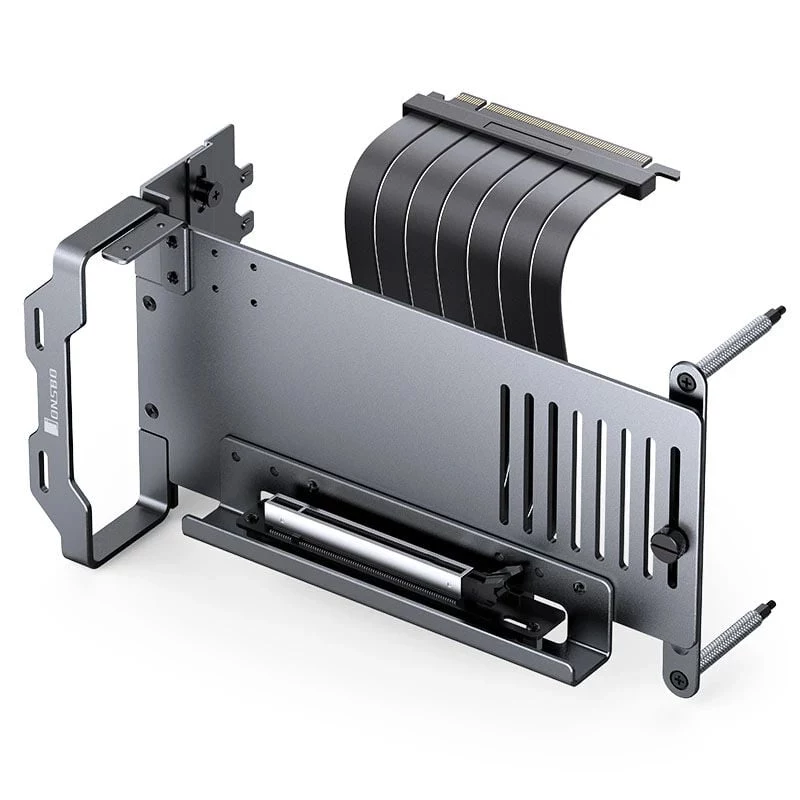

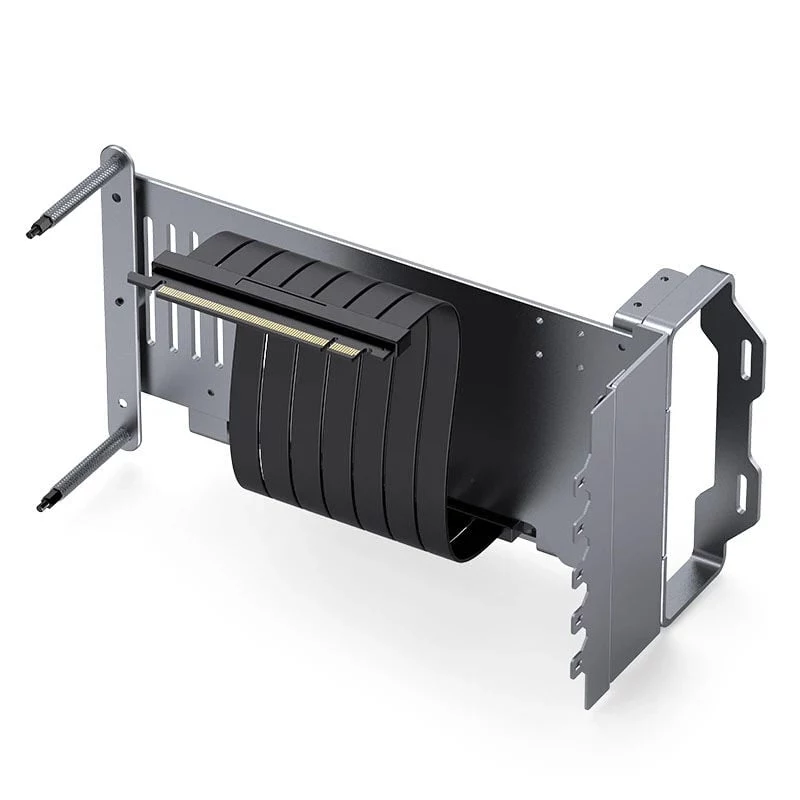

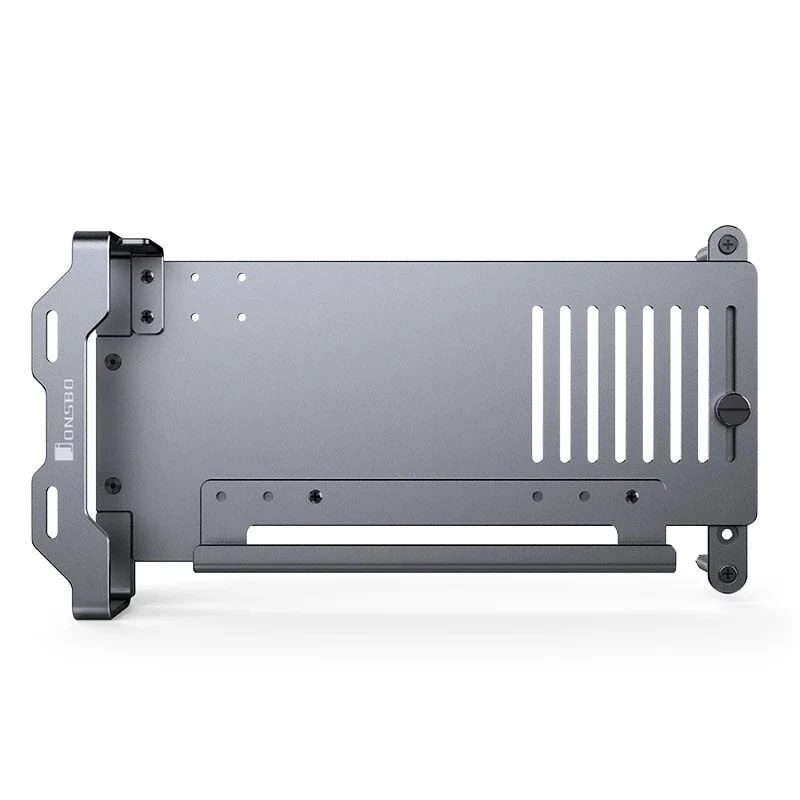

Jonsbo A50 kit di montaggio verticale GPU, cavo riser PCIe 5.0 175 mm, grigio (A50 GRAY)

The Jonsbo A50 Vertical GPU Mount Kit allows you to install your graphics card vertically, showcasing its design while maintaining optimal performance. This kit includes a high-quality PCIe 5.0 riser cable, ensuring full bandwidth for the latest GPUs. The sturdy steel bracket provides secure mounting, and the gray finish complements a wide range of system builds.

Advantages

Vertical GPU mounting improves airflow and aesthetics, making your build stand out. The PCIe 5.0 riser cable supports data transfer rates up to 128 GB/s, ensuring no performance loss compared to direct motherboard installation. The kit is compatible with most ATX cases that have 7 available PCIe slots, and it supports up to 3-slot thick graphics cards.

Suitable for

• Gamers and PC enthusiasts looking to showcase their graphics card
• Users with ATX cases that have sufficient clearance for vertical GPU mounting
• Builds requiring PCIe 5.0 bandwidth for high-end GPUs

Key specifications

• Product Type: Vertical GPU Mount Kit
• PCIe Standard: PCIe 5.0 (Gen 5)
• Riser Cable Length: 175 mm
• Riser Cable Interface: PCIe x16
• Color: Gray
• Holder Material: Steel / SECC
• Cable Material: Copper conductors, FPC (Flexible Printed Circuit)
• Compatibility: Universal ATX cases (requires sufficient clearance), up to 3-slot GPUs
• Mounting Type: Screw-in (to existing PCIe slots)
• Data Transfer Rate: Up to 128 GB/s (PCIe 5.0 x16 bi-directional)
• Backward Compatibility: PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.0
• EMI Shielding: Yes
• Cable Design: Flexible, high-speed shielded ribbon cable
• Connector Plating: Gold-plated contacts
• Installation Requirements: Requires 7 free PCIe slots at the rear of the case
• Purpose: Vertical GPU display, improved aesthetics
• Included Components: Vertical GPU bracket, PCIe 5.0 riser cable

Recommendations

For best results, ensure your case has at least 7 PCIe slot covers and enough depth to accommodate the vertical GPU. The kit is designed for standard ATX cases; compatibility with smaller form factors may vary. Always check GPU dimensions and clearance before installation.
