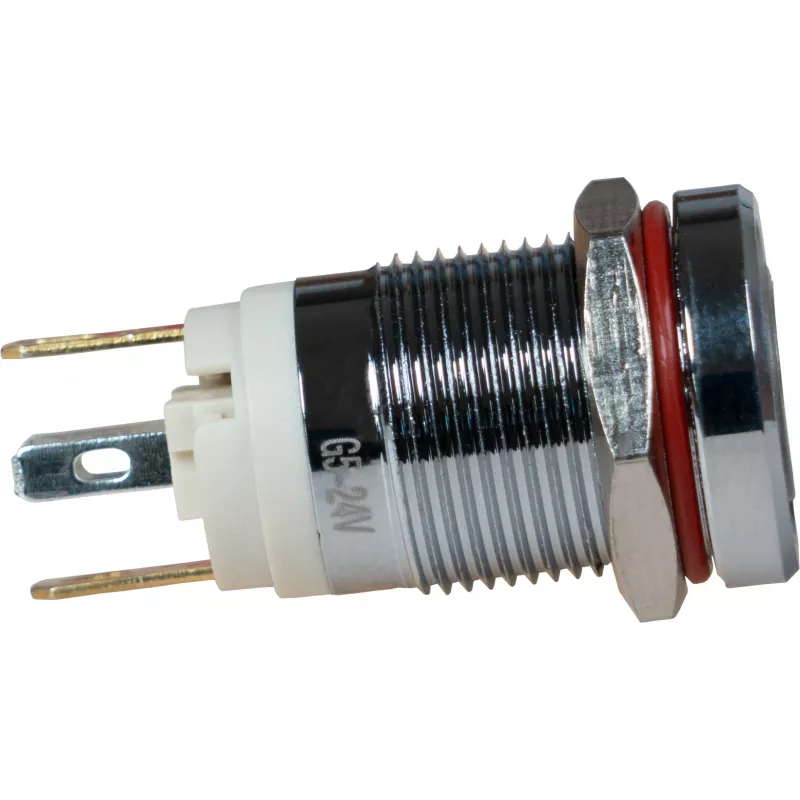

JOY-IT Button12E-01 Pulsante a ritenuta antieffrazione, verde, 12mm, IK10, IP67

In public access control systems, a door release button must withstand deliberate abuse and harsh weather. The JOY-IT Button12E-01 is a vandal-proof latching push button switch engineered for exactly such environments. Its stainless steel housing and flush actuator resist impacts up to IK10, while the IP67 sealing keeps out dust and water. The green actuator provides clear visual indication, and the latching operation maintains state until pressed again. With a 12 mm mounting cutout and 26.5 mm depth, it fits standard panels. Rated for 3 A at 250 V AC/DC, it handles a wide range of control loads. Whether for industrial machinery, kiosks, or outdoor intercoms, this switch delivers reliable, long-lasting performance.

Key specifications

• Product type: Vandal-proof push button switch
• Operation type: Latching (maintained)
• Actuator color: Green
• Mounting cutout diameter: 12 mm
• Overall length (depth): 26.5 mm
• Impact protection: IK10
• Ingress protection: IP67
• Housing material: Stainless steel
• Contact configuration: 1 NO (normally open)
• Terminal type: Solder lugs
• Switching voltage (max): 250 V AC/DC
• Switching current (max): 3 A
• Actuator style: Flat/flush
• Mechanical life: 500,000 cycles
• Electrical life: 50,000 cycles
• Operating temperature: -20°C to +55°C
• Mounting type: Panel mount

Why choose it

This switch is built to survive in demanding public and industrial settings. The stainless steel body and IK10 impact rating mean it can take hits without failing, while IP67 ensures operation even when exposed to rain or dust. The latching action provides a clear on/off state, and the green color is easily recognizable. With a long mechanical life, it reduces maintenance and replacement costs.

Ideal use cases

• Access control door release buttons in public buildings
• Outdoor intercom and gate control systems
• Industrial control panels requiring robust switches
• Kiosks and vending machines exposed to vandalism
• Emergency stop or reset buttons in harsh environments

Good to know

The switch mounts in a 12 mm hole and is secured with a nut (not included). Solder lug terminals allow secure wiring. Ensure the panel thickness is compatible with the 26.5 mm depth. For high-current applications, verify that the 3 A rating meets your load requirements. The latching mechanism means the button stays in the pressed position until pressed again, which is ideal for toggling circuits.
