JOY-IT Button22NA-01 Pulsante di emergenza, blocco meccanico, rosso/verde, Ø22 mm, IP67, IK10

With an IP67 rating, the JOY-IT Button22NA-01 emergency stop button is fully protected against dust and temporary immersion, making it ideal for harsh industrial environments. Its mechanical latching mechanism ensures the button stays engaged until manually reset, providing a reliable safety solution.

Overview

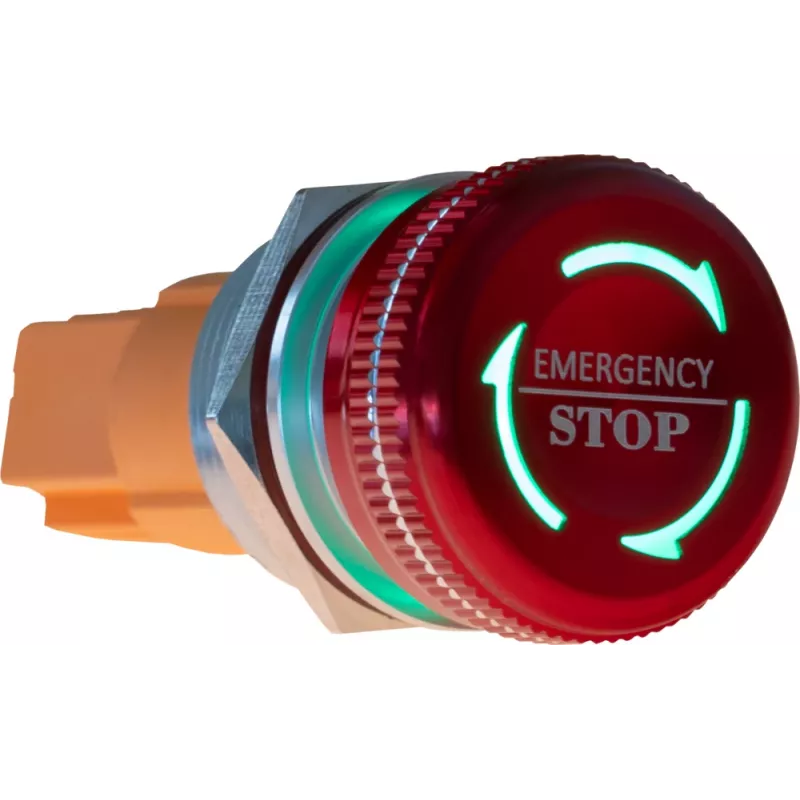

The Button22NA-01 is a robust emergency stop button designed for panel mounting. It features a 22 mm diameter mounting hole, a red mushroom head with a green indicator, and a mechanical latching function. The button is rated IK10 for impact resistance, ensuring durability in demanding applications.

What stands out

• IP67 protection against dust and water
• IK10 impact resistance
• Mechanical latching for secure operation
• Red and green colour combination for clear status indication
• Compact design: 21.90 mm diameter, 46.50 mm height

Technical details

• Brand: JOY-IT
• Model: Button22NA-01
• MPN: Button22NA-01
• EAN: 4250236825083
• Product colour: Red, Green
• Mounting diameter: 22 mm
• Dimensions (Ø x H): 21.90 mm x 46.50 mm
• IP rating: IP67
• IK rating: IK10
• Latching type: Mechanical
• Quantity per pack: 1

Our verdict

The JOY-IT Button22NA-01 is a top-tier emergency stop button that combines rugged construction with reliable performance. Its IP67 and IK10 ratings make it suitable for the toughest environments, and the mechanical latching ensures safety. A must-have for any industrial control panel.
