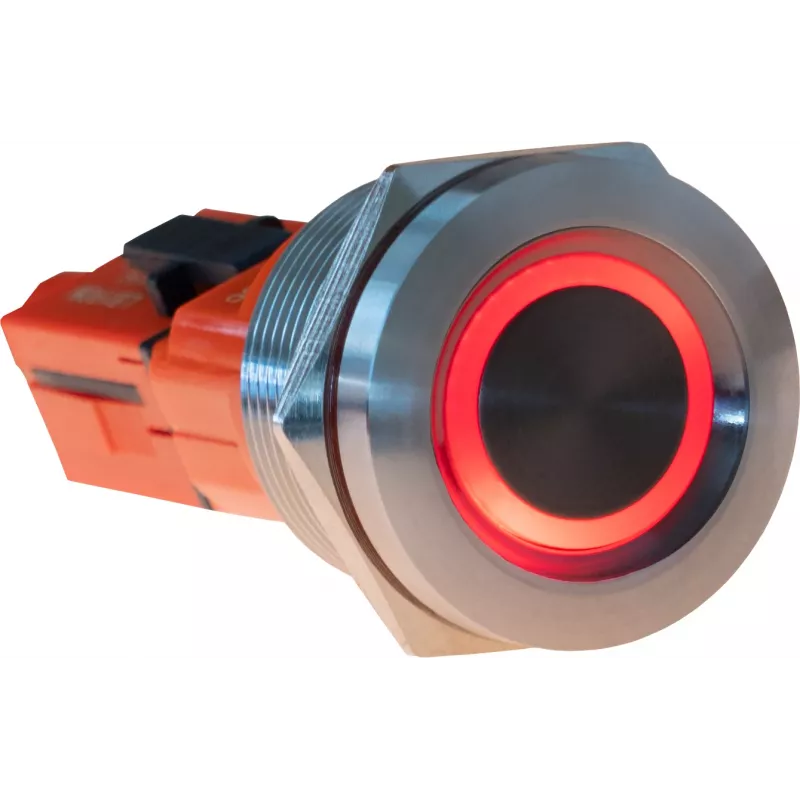

JOY-IT Button22T-01 Pulsante (contatto NA), LED rosso/blu, 22mm, IP68, IK10

Industrial control panels, marine dashboards, and outdoor kiosks demand switches that can withstand harsh environments while providing clear visual feedback. The JOY-IT Button22T-01 momentary push button switch meets these challenges with a robust stainless steel housing, dual-color LED illumination, and an IP68/IP69K protection rating. Its 22 mm mounting diameter and 38 mm overall length make it a drop-in replacement for standard panel cutouts, while the momentary action ensures precise control for applications such as machine start/stop, door release, or signal acknowledgment.

Key specifications

• Operation type: Momentary (non-latching) – returns to rest position when released
• Mounting diameter: 22 mm (standard industrial panel cutout)
• Overall length: 38 mm
• Ingress protection: IP68 – dust-tight and protected against continuous immersion in water
• Impact protection: IK10 – highest resistance to mechanical impact (20 joules)
• Housing material: Stainless steel for corrosion resistance and durability

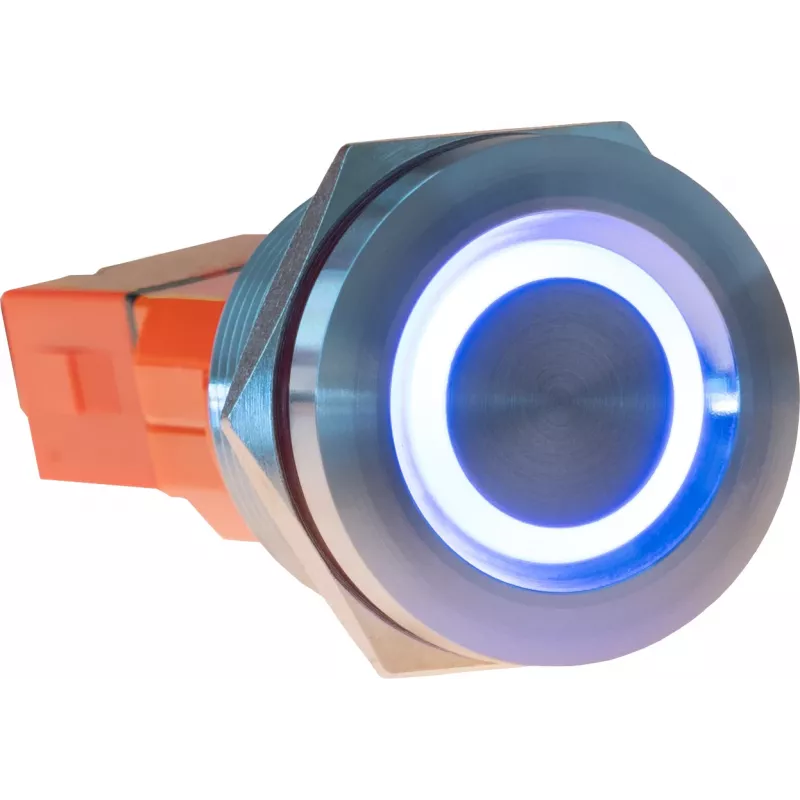

• Illumination: Dual-color LED – red and blue, selectable via wiring
• LED operating voltage: 12V DC
• Contact configuration: 1 NO + 1 NC (SPDT) for flexible circuit design
• Max. switching voltage/current: 250V AC / 5A
• Terminal type: Screw terminals for secure, tool-free wiring
• Mechanical life: 500,000 cycles
• Electrical life: 50,000 cycles at rated load
• Operating temperature range: -20°C to +55°C

Why choose it

This switch is built for reliability in demanding environments. The stainless steel body resists corrosion from salt spray, chemicals, and moisture, while the IK10 rating ensures it survives accidental impacts from tools or falling objects. The dual-color LED provides clear status indication even in bright sunlight or dark conditions, reducing operator error. With a mechanical life of half a million cycles, it offers long-term performance with minimal maintenance, lowering total cost of ownership.

Ideal use cases

• Industrial machinery control panels (start/stop, jog functions)
• Outdoor access control systems (gate openers, door releases)
• Marine and RV dashboards (bilge pump, horn, lighting control)
• Food processing equipment (washdown areas requiring IP68)
• Security and alarm panels (panic buttons, reset switches)

Good to know

Installation is straightforward: drill a 22 mm hole, insert the switch, and tighten the included mounting nut. The screw terminals accept wire sizes up to 2.5 mm², and the LED can be powered separately from the switch contacts, allowing independent illumination control. For applications requiring a latching action, consider pairing this momentary switch with a relay or PLC logic. The switch is sold individually; bulk packaging options are available for OEM projects.
