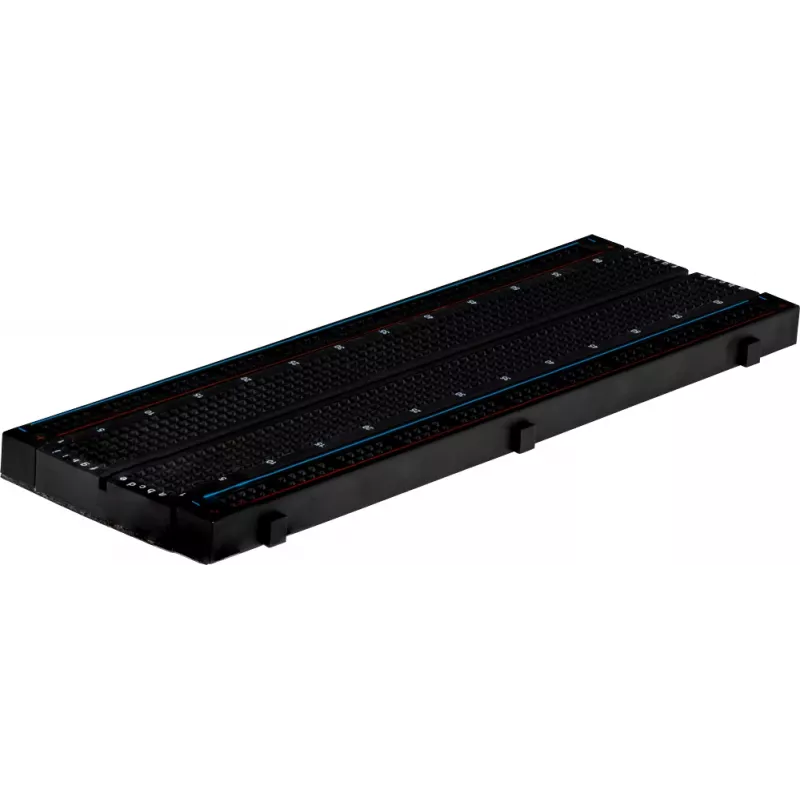

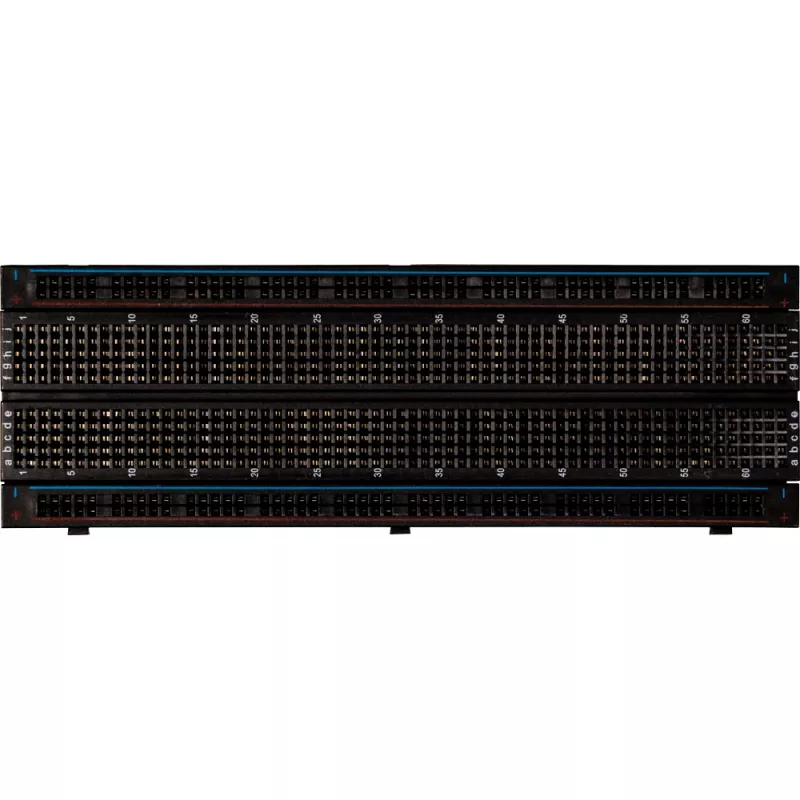

JOY-IT RB-Breadboard2-B breadboard 830 punti di contatto senza saldatura per Raspberry Pi e prototipazione elettronica - nero

Prototyping circuits on a Raspberry Pi often involves a mess of jumper wires and unstable connections. The JOY-IT RB-Breadboard2-B solves this by providing a reliable 830 tie point solderless breadboard with a self-adhesive backing, perfect for building and testing circuits without soldering.

Who is it for

This breadboard is ideal for hobbyists, students, and professionals working with Raspberry Pi, Arduino, or other microcontrollers. It suits anyone who needs a reusable platform for rapid circuit prototyping, from simple LED blinkers to complex sensor arrays.

Main features

• 830 tie points: 630 in the main prototyping area and 200 in four power distribution rails
• Solderless design with nickel-plated phosphor bronze contacts for reliable connections
• Self-adhesive backing for secure mounting on projects or enclosures
• Standard 2.54 mm (0.1 inch) pin pitch, compatible with most components and jumper wires
• Durable ABS plastic body, reusable for thousands of insertions

Specifications

• Number of tie points: 830
• Main prototyping area tie points: 630
• Power distribution tie points: 200 (4 rails x 50)
• Power rails: 2 (each with 2 rows)
• Contact material: Nickel-plated phosphor bronze
• Body material: ABS plastic
• Pin pitch: 2.54 mm (0.1 inch)
• Maximum voltage: 300V AC/DC
• Maximum current: 1A per contact
• Insulation resistance: >100 MΩ
• Operating temperature: -20°C to +80°C
• Adhesive backing: Yes (self-adhesive)
• Colour: Black

Tips

Use the power rails to distribute VCC and GND across your circuit. For Raspberry Pi projects, connect the 5V and 3.3V pins to separate rails to avoid confusion. The adhesive backing allows permanent mounting, but you can also use screws or standoffs if you prefer a non-permanent setup.
