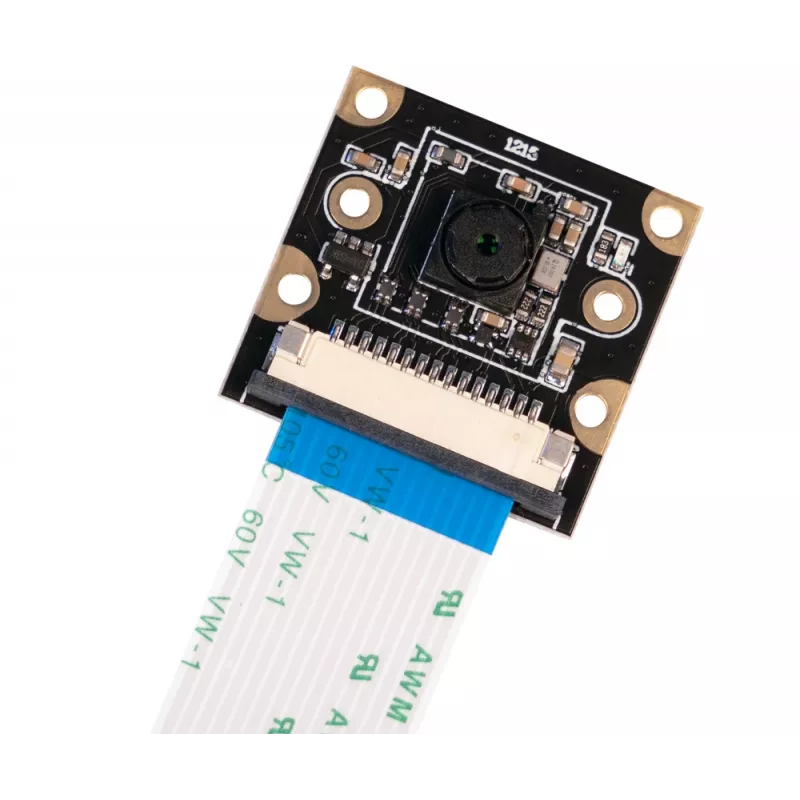

JOY-IT RB-CAMERA-JT-V2-120 modulo fotocamera grandangolare 8MP 120° per Raspberry Pi

Capture stunning 8-megapixel stills and smooth 1080p video with the JOY-IT RB-CAMERA-JT-V2-120, built around the Sony IMX219 sensor and engineered for Raspberry Pi. Its 120° diagonal field of view and f/2.0 aperture deliver bright, expansive shots with fixed focus simplicity.

Overview

The RB-CAMERA-JT-V2-120 is a CMOS camera module designed for Raspberry Pi development boards with a CSI interface. It connects via a 15-pin MIPI CSI-2 ribbon cable and supports multiple video resolutions, including 1080p at 30 fps, 720p at 60 fps, and 640x480 at 90 fps. The module measures just 25 x 24 mm and operates in temperatures from -20°C to 60°C.

What stands out

• High-resolution 8MP Sony IMX219 sensor for detailed images
• Ultra-wide 120° field of view for immersive scenes
• Flexible video modes: 1080p30, 720p60, and VGA90
• Plug-and-play with Raspberry Pi CSI port

Technical details

• Sensor: Sony IMX219, 1/4" CMOS, 8 megapixels (3280 x 2464)
• Lens: f/2.0 aperture, 2.96 mm focal length, fixed focus
• Field of view: 120° diagonal
• Interface: 15-pin MIPI CSI-2, 15 cm FFC cable included
• Operating temperature: -20°C to 60°C
• PCB color: green

Our verdict

A reliable wide-angle camera for Raspberry Pi projects that demand high resolution and broad coverage, from security monitoring to computer vision.
