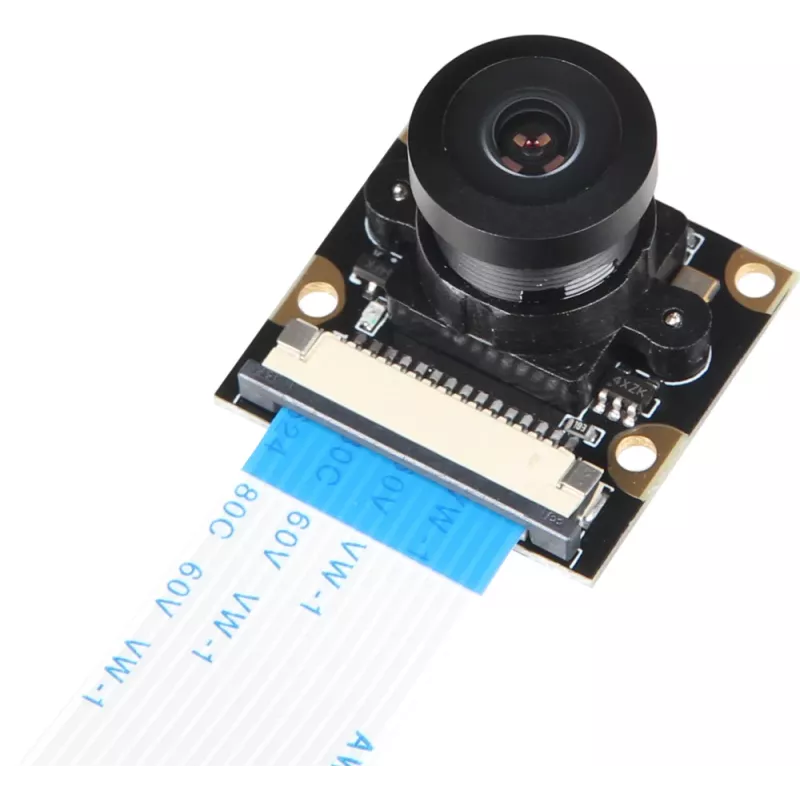

Joy-IT RPI WWCAM - modulo fotocamera Raspberry Pi 5MP 160° grandangolare - interfaccia CSI

The Joy-IT RPI WWCAM is a high-performance camera module designed specifically for Raspberry Pi. Featuring a 5MP OV5647 CMOS sensor with a 160° wide-angle lens, it delivers crisp still images at 2592x1944 resolution and smooth video at 1080p 30fps. The camera connects via the CSI interface, ensuring low-latency data transfer. Its IR-sensitive design (no IR cut filter) makes it ideal for night vision applications when paired with IR LEDs. The included FFC cable simplifies installation. Whether for surveillance, time-lapse, or robotics, this camera offers excellent value and versatility.

Advantages

High-resolution 5MP sensor for detailed images; ultra-wide 160° field of view captures more scene; IR-sensitive for low-light and night vision; plug-and-play compatibility with all Raspberry Pi models featuring a CSI port; compact and lightweight design.

Suitable for

• Raspberry Pi-based surveillance and security cameras
• Time-lapse photography and wildlife monitoring
• Robotics and computer vision projects
• Home automation and smart camera systems
• Educational STEM projects

Key specifications

• Sensor: 5MP OV5647 CMOS
• Still resolution: 2592 x 1944 pixels
• Video: 1080p @ 30fps, 720p @ 60fps, 640x480p @ 90fps
• Field of view: 160° (wide angle)
• Focal length: 2.8 mm
• Aperture: F2.9
• Interface: CSI (Camera Serial Interface)
• Compatibility: Raspberry Pi (all models with CSI port)
• Lens: Fixed focus
• IR filter: No (IR sensitive)
• Cable: FFC cable included (approx. 15 cm)
• Operating voltage: 3.3V

Recommendations

For best results, use with a Raspberry Pi 3 or newer. For night vision, pair with an IR LED illuminator. Ensure the CSI ribbon cable is securely connected to both the camera and the Pi board.
