JUNG A1790DWW display Standard per termostato ambiente, bianco alpino

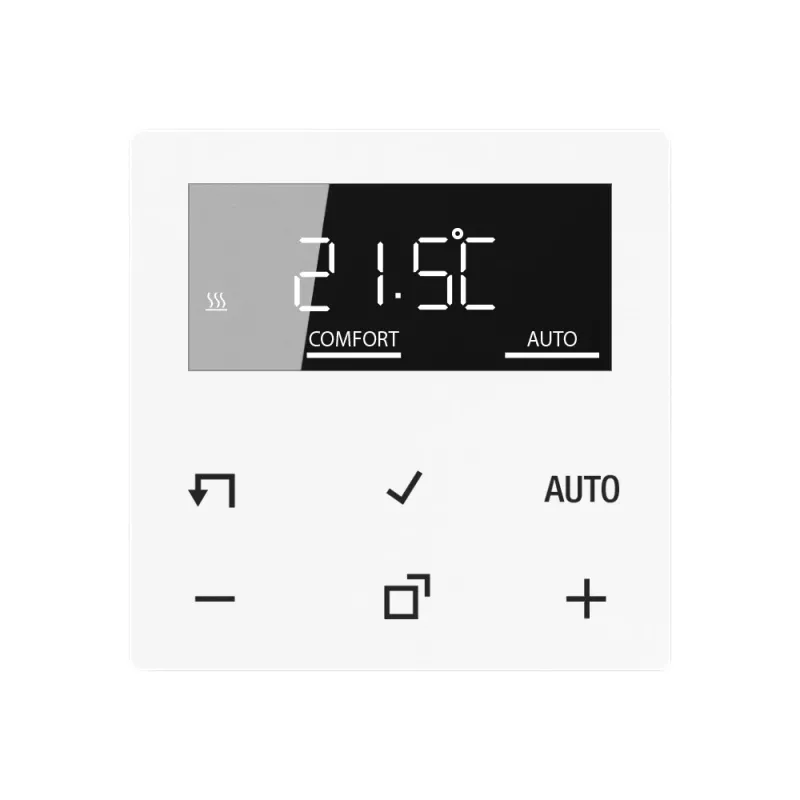

The JUNG A1790DWW Display Standard is a premium control interface designed for room temperature regulation in residential and commercial building automation systems. As part of the JUNG A Series, this flush-mounted LCD display provides intuitive control and clear visual feedback for your heating and cooling systems.

Advantages

High-quality thermoplastic construction ensures durability and a sleek appearance. The backlit LCD screen offers excellent readability, while the rotary knob with push function allows easy adjustment of temperature and operating modes. Compatible with JUNG AS, A, CD, and LS design lines, it integrates seamlessly into modern interiors.

Suitable for

• Residential heating and cooling control
• Commercial building automation
• Integration with JUNG room temperature controller base units

Key specifications

• Product Type: Display Standard for Room Temperature Controller
• Series: JUNG A Series
• Colour: Alpine White (Alpinweiß)
• Display: LCD with backlight
• Control: Rotary knob with push function
• Mounting: Flush-mounted (requires separate base unit)
• Material: Thermoplastic (PC)
• Protection Class: IP20
• Operating Temperature: 0 °C to +40 °C
• Temperature Setting Range: +5 °C to +30 °C
• Functions: Display of actual/set temperature, operating mode selection, timer programming (with compatible base unit)
• Power Supply: Via connected room temperature controller base unit
• Installation Depth: Approx. 32 mm

Recommendations

For optimal performance, pair this display with a compatible JUNG room temperature controller base unit. Professional installation is recommended to ensure proper flush-mounting and electrical connection.
