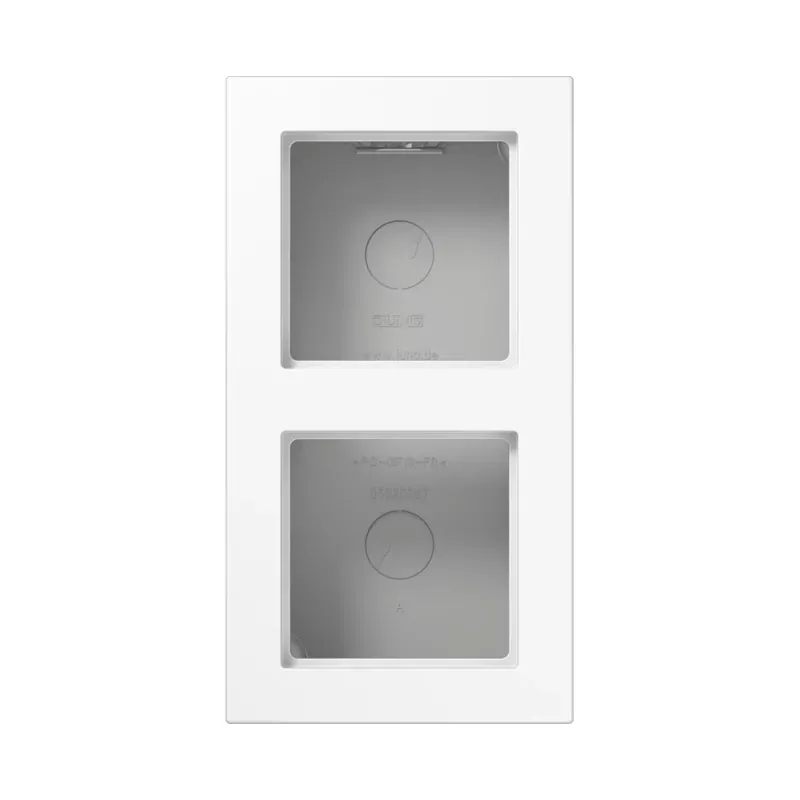

JUNG A5582BFAWW custodia da incasso, 2 moduli, bianco alpino

When installing switches and sockets on solid walls, a surface-mounted housing is required to enclose the wiring and provide a stable base. The JUNG A5582BFAWW is a 2-gang surface-mounted housing in alpine white, designed for two individual devices from the JUNG A range.

Who is it for

Electricians and installers who need a reliable, halogen-free enclosure for surface mounting of JUNG A series inserts, particularly in residential and commercial buildings where flush mounting is not possible.

Main features

• 2-gang surface-mounted housing for two JUNG A devices
• Alpine white (RAL 9010) glossy finish
• Made of halogen-free, UV-resistant thermoplastic (PC-GF10)
• Impact resistance IK05
• Pre-punched cable entries from rear and sides
• Internal depth 40 mm

Specifications

• Product type: Surface-mounted housing
• Number of gangs: 2
• Colour: Alpine white
• Material: Thermoplastic (PC-GF10)
• Halogen-free: Yes
• UV-resistant: Yes
• Impact resistance: IK05
• Protection class: IP20
• Mounting type: Surface mounting
• Design line: JUNG A 500 / A range
• RAL colour code: RAL 9010
• Surface finish: Glossy
• Orientation: Vertical
• Internal depth: 40 mm
• Cable entry: Pre-punched entries from rear and sides
• Suitable for: Two individual devices from JUNG A range
• Operating temperature: -5 to +45 °C

Tips

Combine with JUNG A series inserts such as switches, sockets, or dimmers to create a complete surface-mounted installation. The halogen-free material makes it suitable for use in public buildings.
