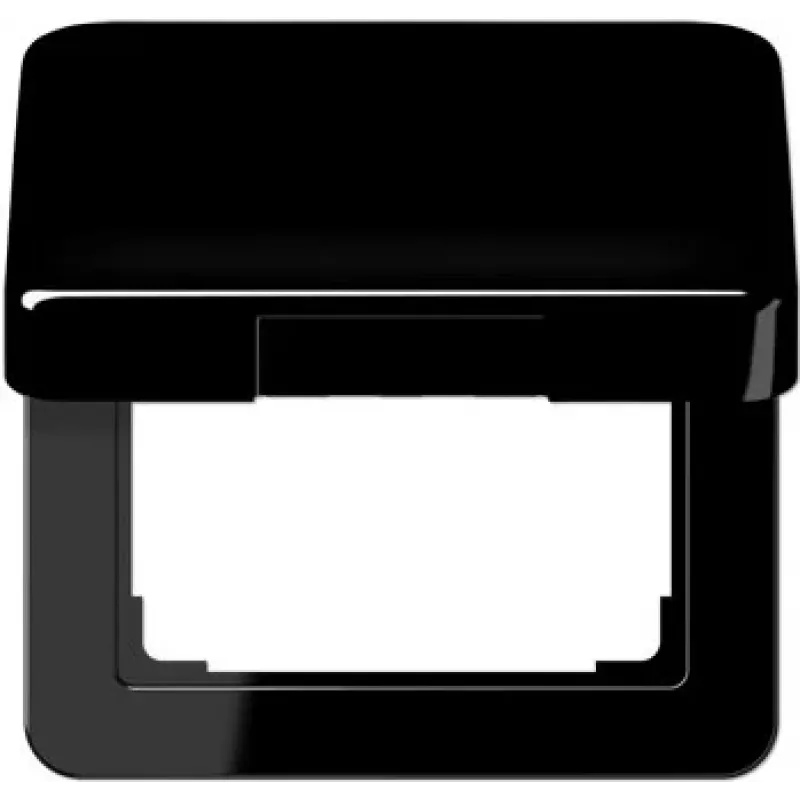

JUNG CD590KLSW Placca con coperchio a scatto 50x50 mm nero lucido per serie CD 500

Engineered for seamless integration with the JUNG CD 500 range, this hinged lid cover plate combines a break-proof thermoplastic construction with an integrated dust protection flap, ensuring long-term reliability in demanding environments. The glossy black finish (RAL 9005) adds a sleek, modern touch to any installation.

Overview

The JUNG CD590KLSW is a hinged lid cover plate designed to conceal and protect 50x50 mm central inserts, such as data communication connection units and multimedia sockets. It is compatible with JUNG CD 500 frames, available for both flush-mounted and surface-mounted installations. The cover plate features a spring-loaded hinged lid that automatically closes, protecting connectors from dust and debris when not in use. Its robust thermoplastic material is halogen-free and UV-resistant, making it suitable for a wide range of indoor applications.

What stands out

• Integrated dust protection flap keeps connectors clean and ready for use.
• Break-proof thermoplastic body with glossy black finish for durability and style.
• Compatible with all JUNG CD 500 frames, offering flexibility in design.
• Halogen-free and UV-resistant materials ensure safety and longevity.
• Impact resistance rated IK05, providing protection against mechanical stress.

Technical details

• Product type: Hinged lid cover plate
• Switch range compatibility: JUNG CD 500
• Module insert compatibility: 50x50 mm central inserts
• Colour: Black (RAL 9005)
• Material: Thermoplastic (break-proof)
• Surface finish: Glossy
• Mounting type: For use with CD 500 frames (flush-mounted or surface-mounted)
• Protection class: IP20 (when installed correctly with frame)
• Impact resistance: IK05
• Operating temperature range: -25 to +55 °C
• Storage temperature range: -25 to +70 °C
• Halogen-free: Yes
• UV resistance: Yes
• Certifications: CE

Our verdict

A reliable and aesthetically pleasing solution for protecting data and multimedia connections in both residential and commercial settings. The automatic closing lid and robust build quality make it a practical choice for high-traffic areas.
