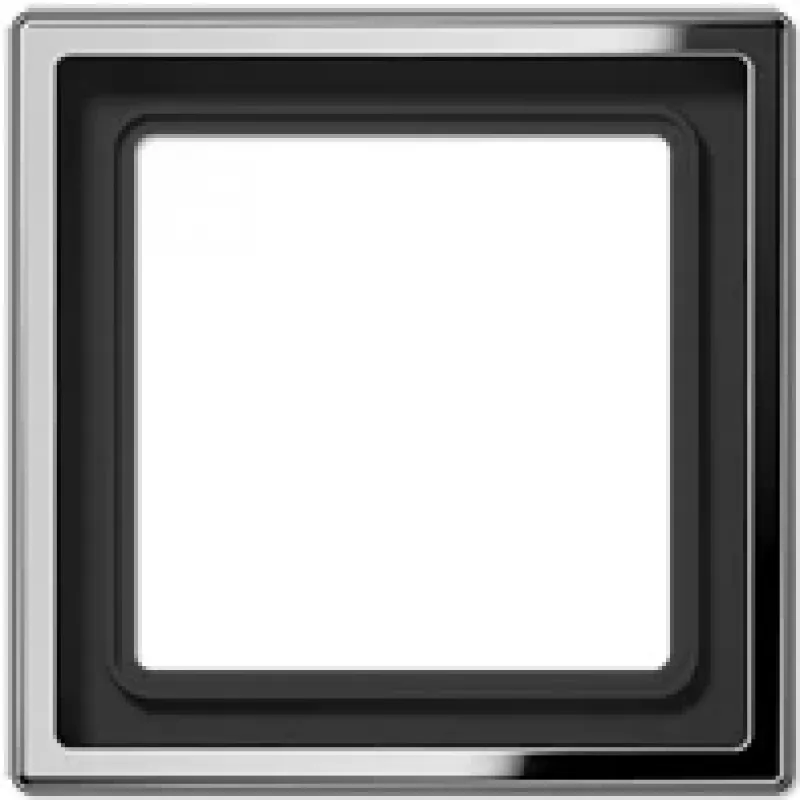

JUNG GCR 2981 placca 1 modulo, LS 990, cromo lucido

For electricians and homeowners updating Jung CD 500 series installations, the GCR2981 cover frame provides a sleek chrome finish that complements modern interiors. This 1-gang frame fits standard flush-mounted inserts, allowing you to refresh switches or sockets without replacing the entire mechanism.

Key specifications

• Design line: Jung CD 500
• Number of gangs: 1
• Material: Thermoplastic (shatterproof)
• Surface finish: Gloss chrome
• Mounting type: Flush-mounted
• Orientation: Vertical and horizontal
• Outer dimensions (W x H): 81 x 81 mm
• Inner dimensions (W x H): 55 x 55 mm
• Halogen-free: Yes
• UV-resistant: Yes
• Impact resistance: IK05
• Protection class: IP20
• Operating temperature range: -5 to +45 °C
• Storage temperature range: -25 to +55 °C

Why choose it

The shatterproof thermoplastic construction ensures durability in high-traffic areas, while the galvanized chrome surface resists wear and maintains its appearance over time. Its precise dimensions guarantee a perfect fit with compatible inserts, and the frame can be mounted vertically or horizontally to suit your layout.

Ideal use cases

• Upgrading existing Jung CD 500 switches and sockets to a chrome finish
• New installations in residential or commercial spaces where a modern aesthetic is desired
• Replacing damaged or discolored frames without changing the electrical mechanism

Good to know

The frame is halogen-free and UV-resistant, making it suitable for areas exposed to sunlight. It is designed for flush-mounted installation and works with all standard inserts from the Jung CD series, including switches, sockets, and dimmers.
