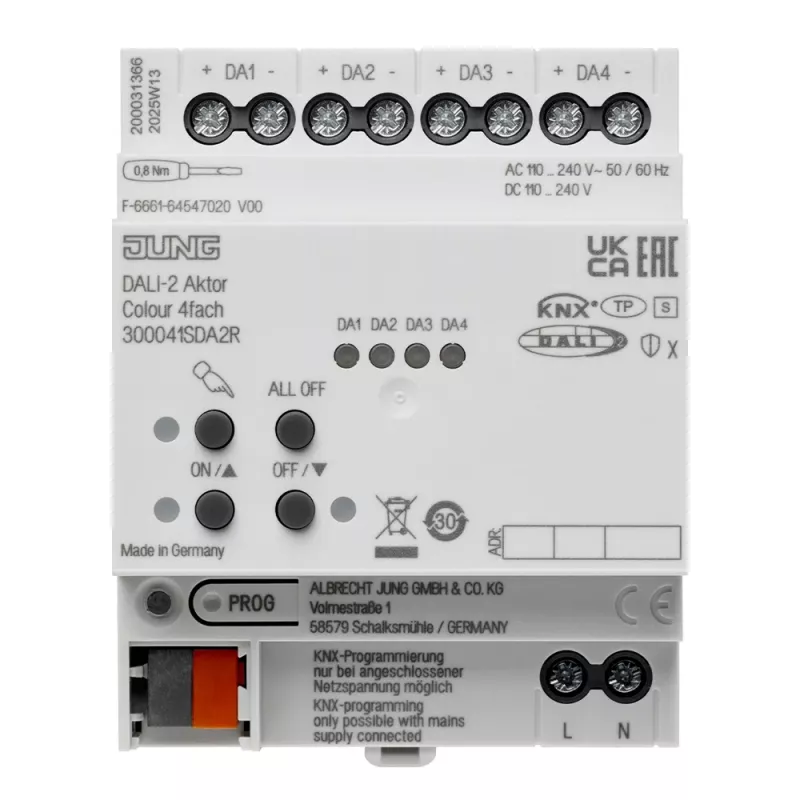

JUNG KNX DALI-2 Attuatore colore 4 canali, guida DIN, 4 TE, Secure (300041SDA2R)

This KNX DALI-2 actuator from JUNG stands out with its four independent DALI-2 channels, each capable of controlling up to 64 DALI devices, making it a flexible solution for professional lighting control. With integrated DALI power supplies per channel and support for KNX Secure, it ensures reliable and protected communication in building automation systems.

Highlights

• Four DALI-2 channels for individual control of lighting groups
• Supports switching, dimming, and colour control (RGB, RGBW, tunable white, XY colour)
• Integrated DALI power supply per channel, no external supply needed
• KNX Secure for encrypted communication
• Compact DIN rail mounting, only 4 TE wide

In daily use

Configured via ETS, the actuator provides precise control over DALI luminaires, including scene management and diagnostic functions. It operates directly from the KNX bus voltage (21-30 V DC), simplifying installation in distribution boards.

Full specifications

• Product type: KNX DALI-2 actuator
• Number of DALI channels: 4
• DALI standard: DALI-2 (IEC 62386)
• KNX standard: KNX, KNX Secure

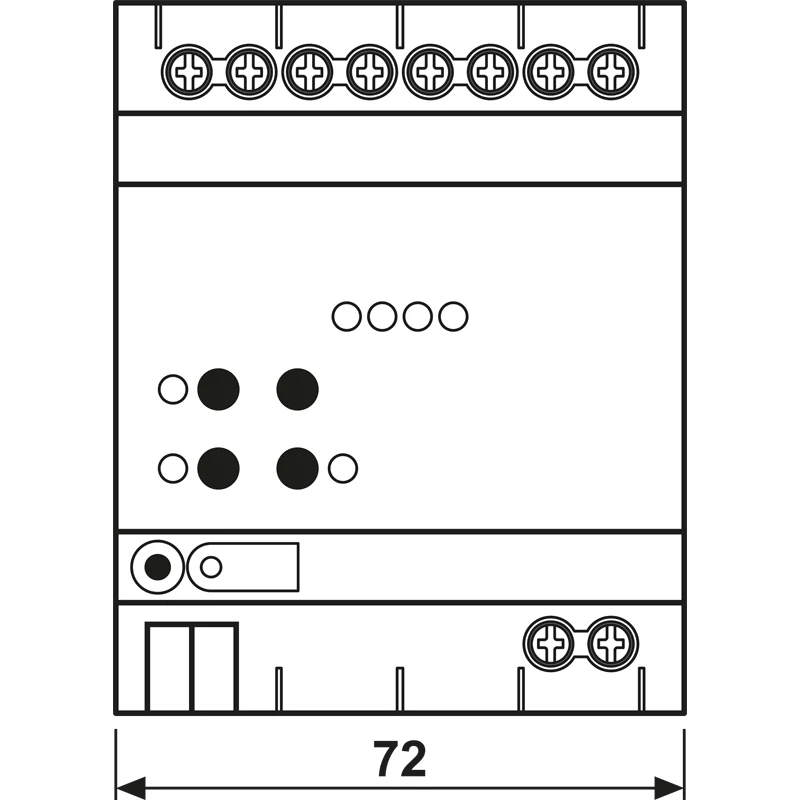

• Mounting: DIN rail (REG), 4 TE width
• Control functions: switching, dimming, colour control, scene control
• DALI output current per channel: 128 mA
• Max. DALI devices per channel: 64
• Max. DALI groups per channel: 16
• Max. DALI scenes per channel: 16
• KNX bus voltage: 21-30 V DC
• Auxiliary power supply: not required (KNX bus powered)
• Connections: KNX bus terminal, DALI terminals per channel
• Configuration software: ETS
• Diagnostic functions: DALI bus monitoring, error reporting
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Relative humidity: 5% to 93% (non-condensing)
• Compliance: CE, KNX certified

Final note

Ideal for projects requiring flexible and secure DALI lighting control within a KNX environment.
