JUNG LS 581 A WWM coperchio da parete 1 modulo, LS CUBE, duroplast laccato, bianco neve opaco

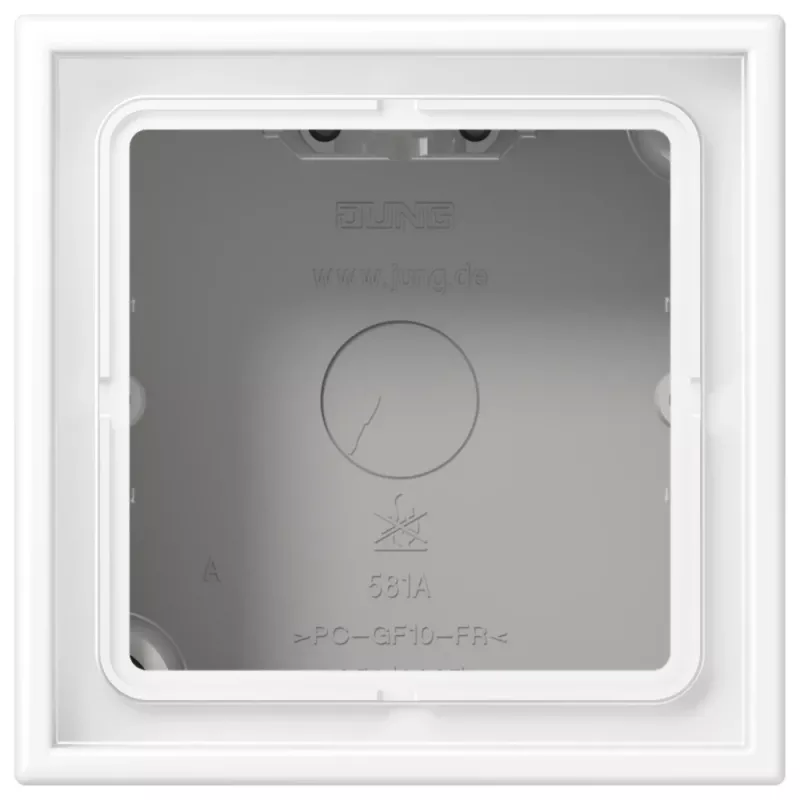

Electricians and installers working on surface-mounted wiring projects in residential or commercial buildings can use the Jung LS 581 A WWM to neatly enclose a single LS-series insert. This 1-gang enclosure with integrated frame provides a clean, finished look for switches, sockets, or push-buttons where flush mounting is not possible.

Key specifications

• Product type: Surface-mounted enclosure with frame
• Number of gangs: 1-gang
• Design line: LS Series
• Colour: Alpine white matt
• Material: Thermoplastic
• Surface finish: Matt
• Halogen-free: Yes
• UV-resistant: Yes
• Impact resistance: IK05
• Protection class: IP20
• Compatibility: Jung LS series inserts (switches, sockets, push-buttons)
• Installation orientation: Vertical or horizontal
• Frame dimensions (W x H): 81 x 81 mm
• Mounting depth: 47 mm
• Operating temperature: -5 °C to +45 °C
• Certifications: VDE (system-dependent)

Why choose it

The enclosure is made from halogen-free, UV-resistant thermoplastic with a matt finish, ensuring durability and a consistent appearance over time. Its IK05 impact resistance provides reliable protection against mechanical stress, while the IP20 rating is suitable for indoor installations.

Ideal use cases

• Surface-mounted electrical installations in solid walls where chasing is not desired
• Retrofitting existing buildings with minimal disruption
• Installations in utility rooms, garages, or workshops

Good to know

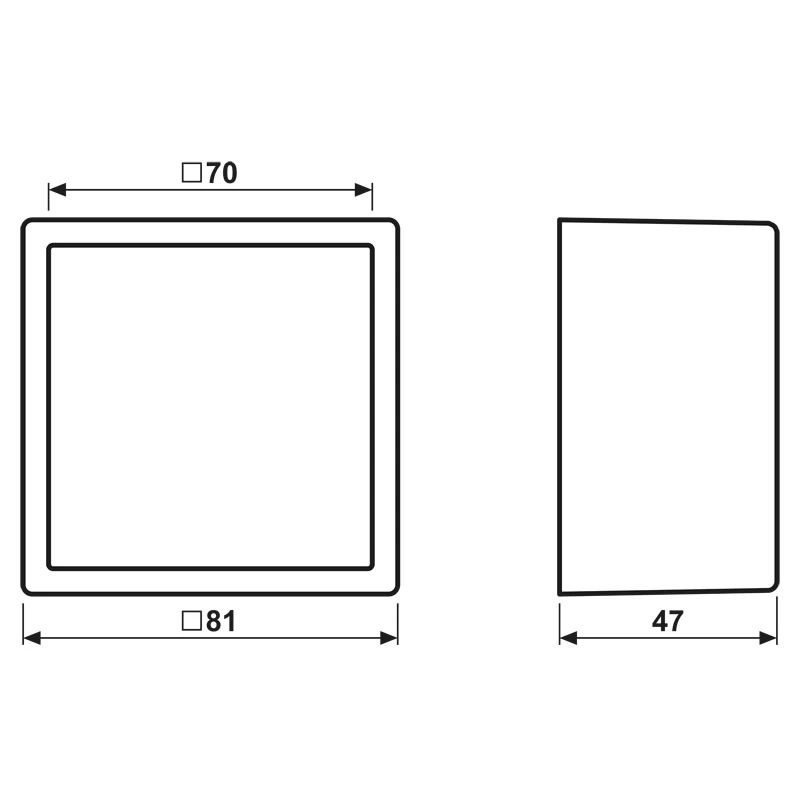

The frame dimensions are 81 x 81 mm, and the mounting depth is 47 mm. The enclosure can be installed vertically or horizontally to match the orientation of the insert.
