JUNG NRSCD0834WW Kit chiamata di emergenza con 4 cornici singole, serie CD, bianco alpino

This JUNG emergency call set stands out by bundling four one-gang frames with the complete DIN VDE 0834-1 compliant system, enabling a coordinated installation across multiple rooms in barrier-free bathrooms or patient areas without sourcing frames separately.

Highlights

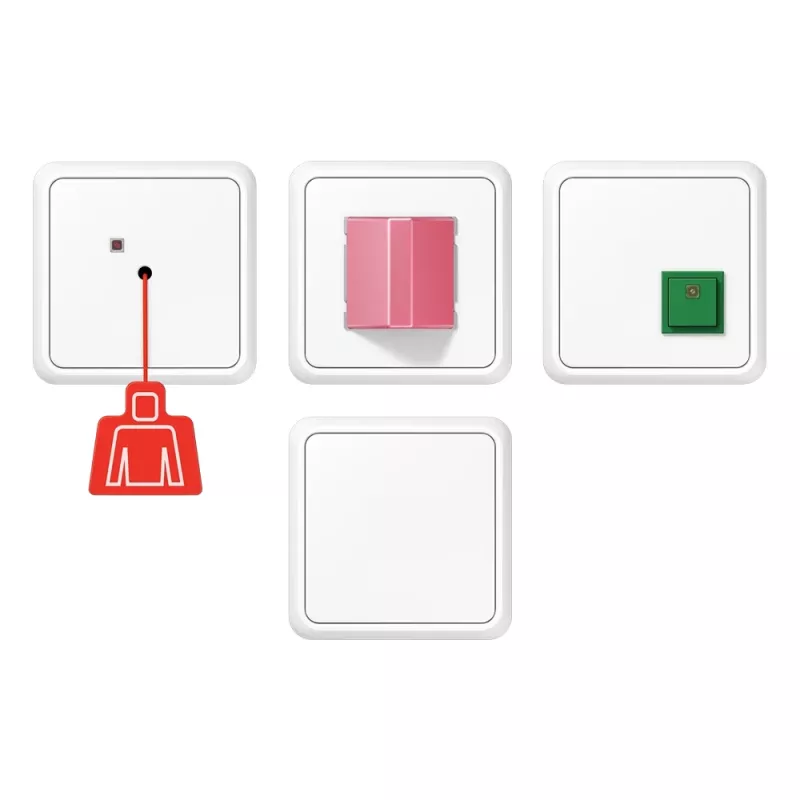

• Complete wired emergency call system for barrier-free WC, bathrooms, and patient rooms
• Includes power supply, call button, reset button, pull cord switch, and signal lamp
• Four 1-gang frames in JUNG CD design, Alpine White finish
• 24 V DC system operating voltage with 230 V AC mains power supply
• Visual signaling via red LED on call devices and red/white signal lamp; green LED on reset button

In daily use

The call button and pull cord switch trigger a clear red indication, while the reset button cancels the call with a green LED confirmation. The signal lamp provides both red and white indications for status at a glance. All components are designed for flush mounting in indoor environments.

Full specifications

• Product type: Emergency call system
• Standard compliance: DIN VDE 0834-1
• Number of frames included: 4
• Frame type: 1-gang
• Design line: JUNG CD Series
• Colour: Alpine White
• Mounting type: Flush-mounted
• Operating voltage (system): 24 V DC
• Mains voltage (power supply): 230 V AC, 50/60 Hz
• Call indication: Red LED (call button, pull cord), red/white (signal lamp)
• Reset indication: Green LED (reset button)
• Material: Thermoplastic
• Protection class: IP20
• Included accessories: Pull cord with handle for pull switch
• Installation environment: Indoor
• System type: Wired

Final note

All components share the same CD design line and Alpine White colour, ensuring a cohesive look across the installation.
