K2 Dome 6.10 SD base di montaggio per tetti piani per impianti fotovoltaici

Engineered for high wind and snow loads per Eurocode, the K2 Dome 6.10 SD delivers a pre-assembled, ballasted mounting solution for flat roofs. Its 10° tilt optimizes solar yield in portrait orientation without roof penetration.

Overview

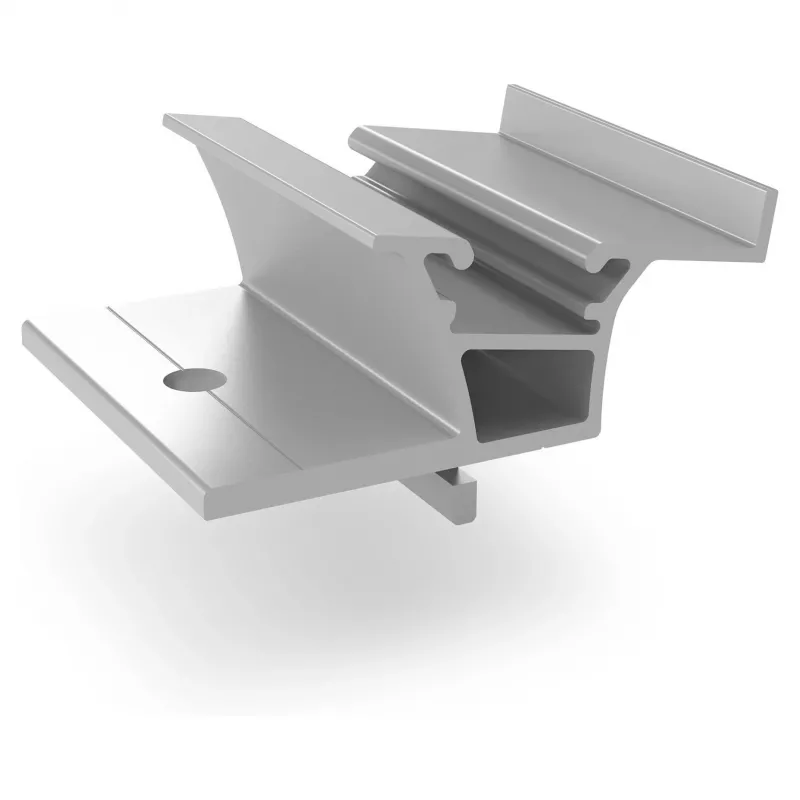

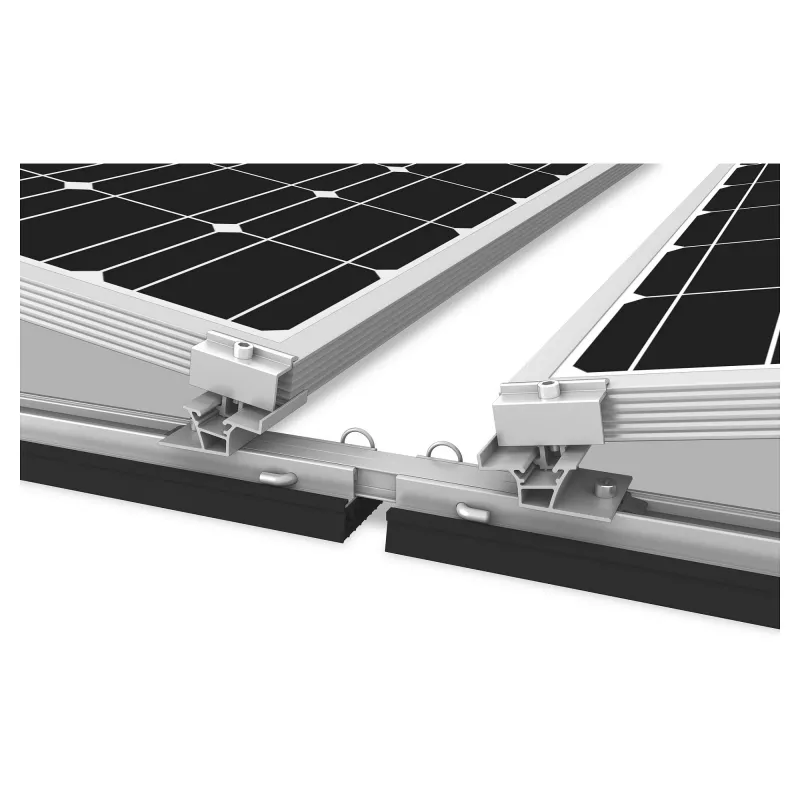

The K2 Dome 6.10 SD is a non-penetrating flat roof mounting base from the K2 Dome System. It supports photovoltaic modules in portrait orientation at a 10° tilt angle, ensuring excellent energy production on flat roofs. The base is suitable for bitumen, foil, gravel, and green roof coverings, making it versatile for various commercial and residential installations.

What stands out

• Pre-assembled components enable rapid installation, reducing labor time and costs.
• Aluminium EN AW-6063 T66 construction with polyamide parts ensures high corrosion resistance and durability.
• Ballasted design eliminates roof penetrations, preserving roof integrity and waterproofing.
• Compatible with K2 MiniRail, SpeedRail, and module clamps for flexible system configuration.
• TÜV certified for safety and performance.

Technical details

• Material: Aluminium EN AW-6063 T66 (base), Polyamide (components)
• Colour: Silver (aluminium), black (polyamide)
• Module orientation: Portrait
• Tilt angle: 10°
• Roof type: Flat roof
• Roof covering compatibility: Bitumen, foil, gravel, green roofs
• Installation type: Ballasted (non-penetrating)
• Wind and snow load resistance: Designed according to Eurocode standards
• Certification: TÜV certified

Our verdict

The K2 Dome 6.10 SD is a robust, certified mounting base that simplifies flat roof PV installations. Its pre-assembled design and compatibility with K2 rails make it an efficient choice for installers seeking reliability and speed.
