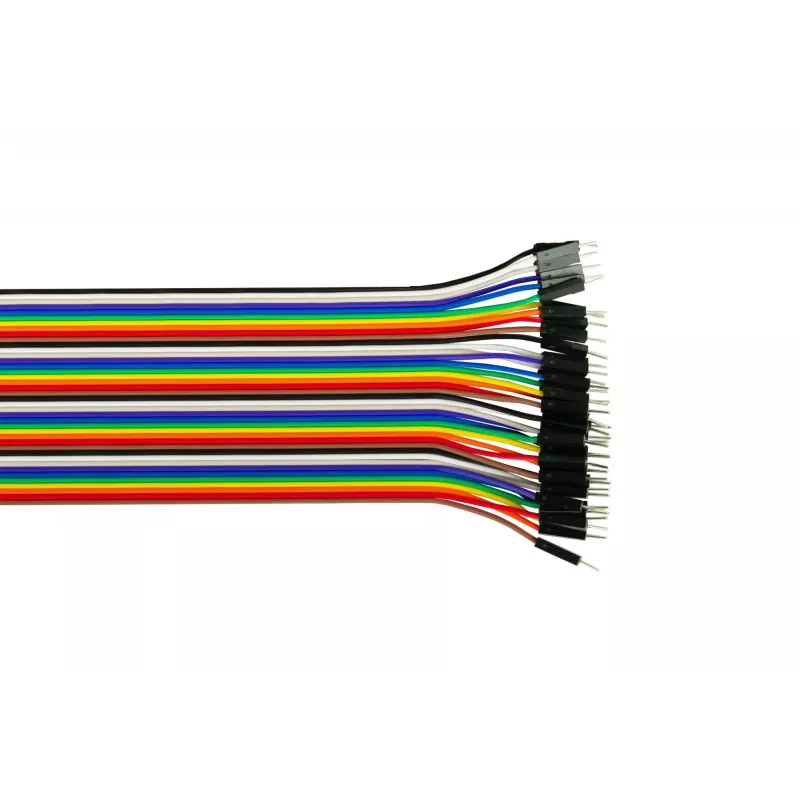

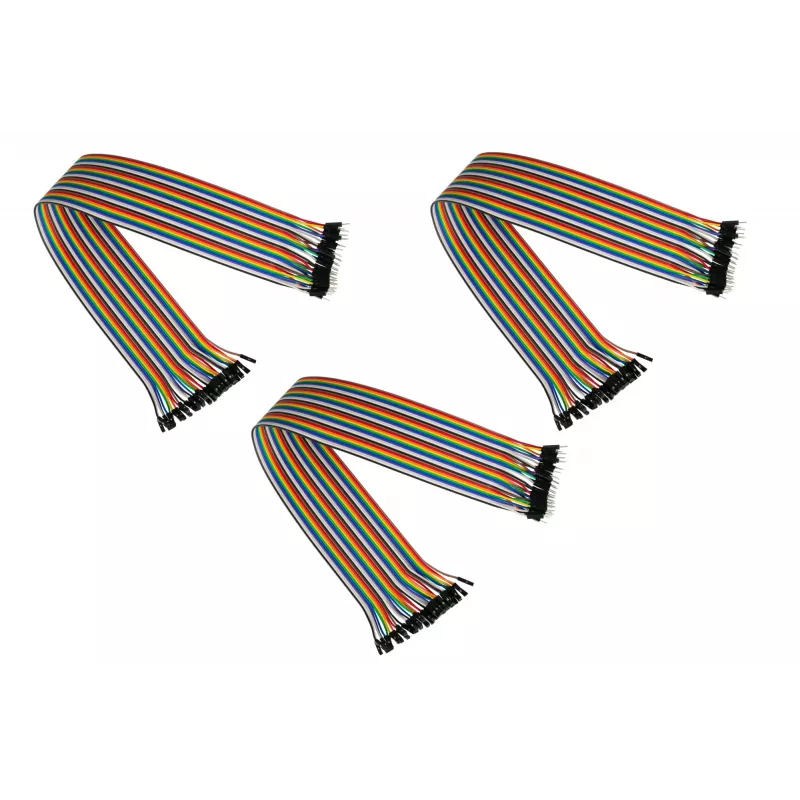

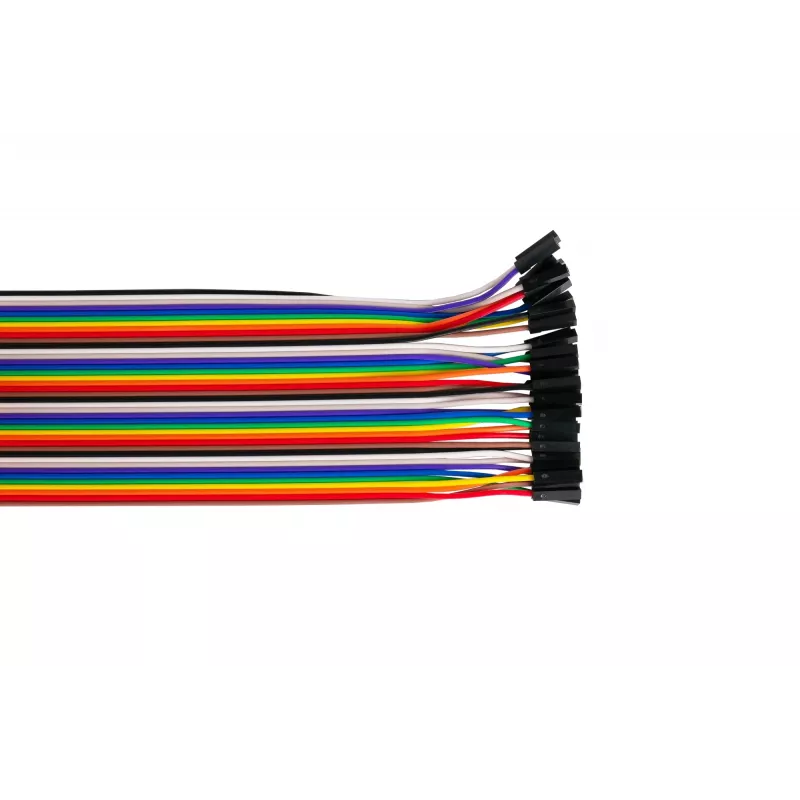

kabelmeister Jumper Wire 40 pin fili separabili per Arduino, Raspberry Pi ecc., maschio-femmina

The kabelmeister Jumper Wire 40-Pin set provides 40 separable male-to-female jumper wires, each 20 cm long, designed for prototyping with Arduino, Raspberry Pi, breadboards, and other microcontrollers. The wires are color-coded (rainbow) for easy identification and feature a 2.54 mm pitch connector compatible with standard breadboards.

Advantages

These jumper wires offer high flexibility and reusability, making them ideal for temporary circuit connections and DIY electronics projects. The separable design allows you to use individual wires as needed, reducing clutter. Tinned copper conductors ensure reliable conductivity, and PVC insulation provides durability.

Suitable for

• Arduino and Raspberry Pi prototyping
• Breadboard circuit connections
• Microcontroller projects
• DIY electronics and hobbyist applications

Key specifications

• Number of Pins: 40
• Connector Type: Male (Pin) to Female (Socket)

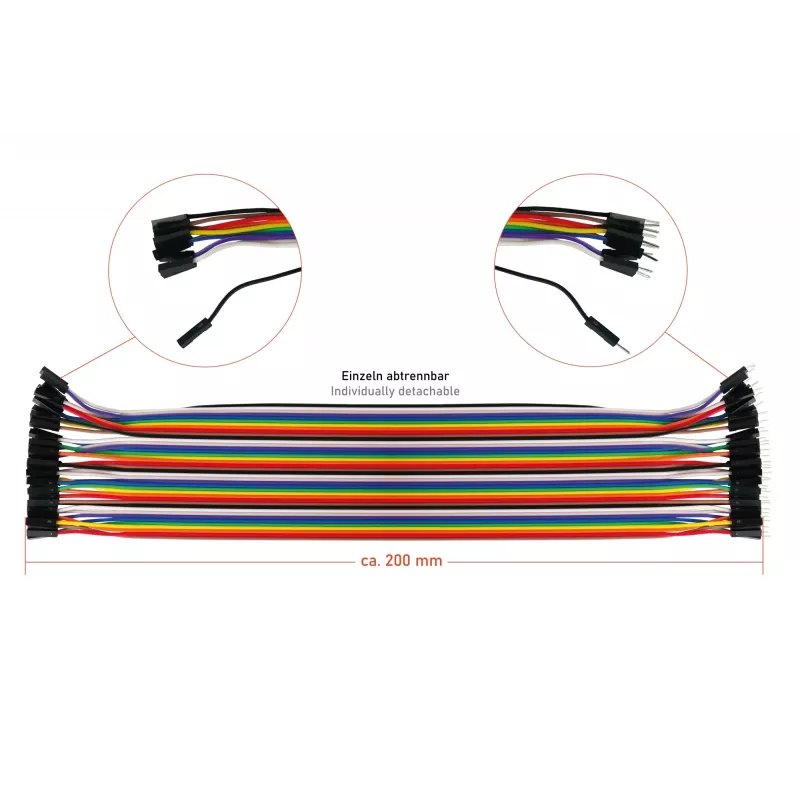

• Wire Length: 20 cm
• Wire Gauge: 26 AWG
• Connector Pitch: 2.54 mm (0.1 inch)
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Color Coding: Rainbow (Multi-color)
• Operating Voltage (Max): 50V DC
• Current Rating (Max): 1A
• Temperature Range: -25°C to +85°C
• Certifications: RoHS Compliant

Recommendations

For best results, use these jumper wires with standard breadboards and ensure connections are secure. Suitable for low-voltage DC circuits only.
