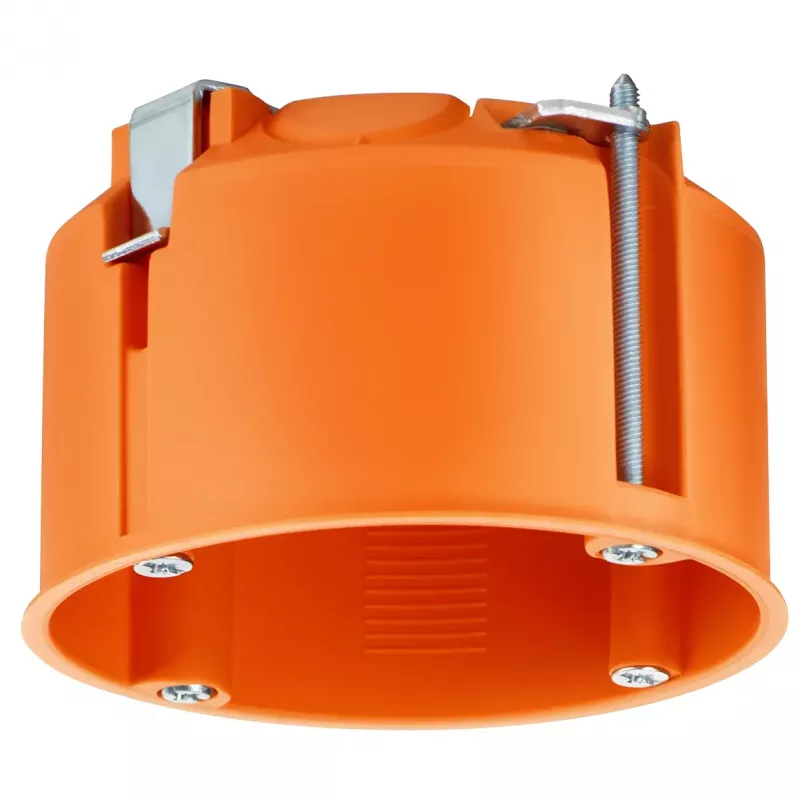

Kaiser Elektro 9063-50 scatola di allacciamento per plafoniere per pareti cave

The Kaiser Elektro 9063-50 Ceiling Light Connection Box is a professional-grade installation accessory designed for hollow walls. It provides a secure and airtight junction point for ceiling luminaires, ensuring reliable electrical connections in dry indoor environments.

Advantages

This connection box features a 5-pole plug-in terminal for quick and tool-free wiring, accommodating conductors up to 2.5 mm². Its airtight design prevents drafts and dust ingress, enhancing energy efficiency and longevity. The box is halogen-free, contributing to fire safety, and is suitable for both LED and halogen luminaires.

Suitable for

• Ceiling luminaires in hollow wall constructions
• LED and halogen light fixtures
• Dry indoor areas requiring IP20 protection

Key specifications

• Milling diameter: 68 mm
• Installation depth: 50 mm
• Number of cable entries: 8 (flexible)
• Terminal type: 5-pole plug-in terminal
• Max. conductor cross-section: 2.5 mm²
• Rated voltage: 400 V
• Rated current: 16 A
• Protection class: IP20
• Material: Plastic
• Colour: Orange
• Air-tight: Yes
• Number of luminaire screw domes: 2 (spacing 60 mm)

Recommendations

For optimal installation, ensure the hollow wall thickness is compatible with the 50 mm depth. Use appropriate tools for the 68 mm milling diameter. Always follow local electrical codes and safety regulations.
