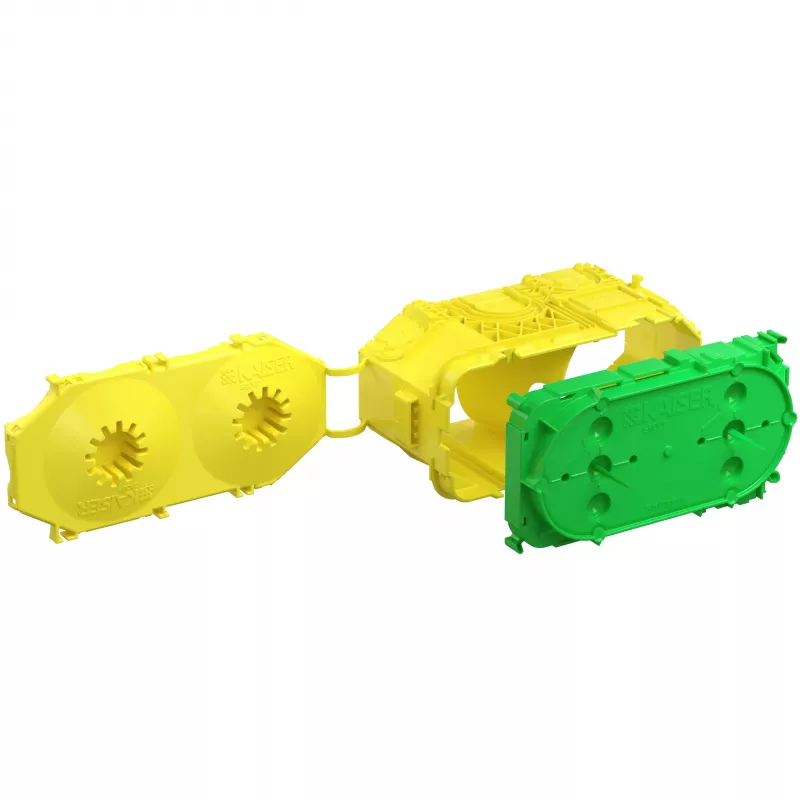

Kaiser Elektro Betonbau B1 scatola di collegamento doppia per apparecchi a 2 pezzi 1269-01

The Kaiser Elektro Concrete Construction B1 Double Device Connection Box 1269-01 is a high-quality flush-mounted junction box designed for use in concrete construction. This 2-part box is flame retardant (B1) and halogen-free, ensuring safety and durability. With a depth of 60 mm and device spacing of 71 mm, it provides ample space for electrical installations. The box features 4 cable entries for M20 and 4 for M25, offering flexibility for various cable sizes. It is air-tight and provides sound insulation, making it suitable for modern building requirements. The box comes with screw domes for device mounting and includes a plaster cover for protection during construction.

Advantages

Flame retardant B1 classification ensures high fire safety. Halogen-free material reduces toxic smoke in case of fire. Air-tight and sound-insulated design meets modern building standards. Easy installation with screw domes and included plaster cover.

Suitable for

• Concrete construction (Betonbau)
• Flush-mounted electrical installations
• Double gang device connections
• Fire-resistant building environments

Key specifications

• Product Type: Device Connection Box
• Installation: Flush-mounted
• Construction: Concrete Construction
• Number of Gangs: Double
• Design: 2-part
• Material: Halogen-free Plastic
• Fire Protection Class: B1
• Depth: 60 mm
• Device Spacing: 71 mm
• Cable Entries M20: 4
• Cable Entries M25: 4
• Air-tight: Yes
• Sound Insulation: Yes
• Combination Capability: Yes
• Mounting: For formwork installation
• Features: With screw domes for device mounting
• Included Accessories: Plaster cover
• Halogen-free: Yes

Recommendations

For professional electricians and builders requiring reliable, fire-safe connection boxes for concrete structures. Ensure compatibility with your device spacing and cable entry requirements.
