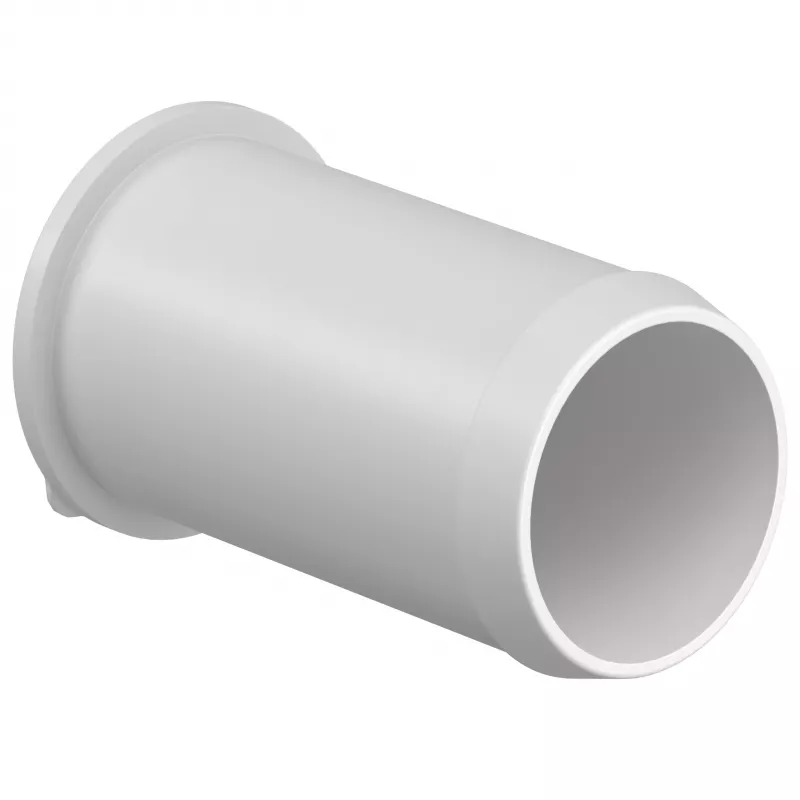

Kaiser Elektro connettore per tubi rotondo HFR 9060-78

The Kaiser Elektro Conduit Connector Round HFR 9060-78 is a high-quality push-fit coupling designed for connecting electrical installation conduits. Manufactured from halogen-free polypropylene, this connector ensures safety and durability in various environments. Its light grey RAL 7035 color and round shape make it a versatile choice for professional installations.

Advantages

Halogen-free material reduces toxic smoke emission in case of fire. Flame retardant and self-extinguishing properties enhance safety. Easy push-fit connection saves installation time. Suitable for a wide operating temperature range from -25 °C to +60 °C.

Suitable for

• Connecting electrical installation conduits in residential, commercial, and industrial buildings
• Use in environments requiring halogen-free and flame-retardant components
• Installations where quick and secure conduit coupling is needed

Key specifications

• Product Type: Conduit Connector
• Connector Type: Straight Coupling
• Nominal Conduit Size: M20
• Compatible Conduit Outer Diameter: 20 mm
• Material: Polypropylene (PP)
• Halogen-Free: Yes
• Color: Light Grey (RAL 7035)
• Flame Retardant: Yes
• Self-Extinguishing: Yes
• Operating Temperature Range: -25 °C to +60 °C
• Standard Compliance: DIN EN 61386-21
• Connection Method: Push-fit
• Shape: Round

Recommendations

For optimal performance, ensure the conduit outer diameter matches 20 mm. This connector is ideal for use with Kaiser Elektro conduits and other compatible systems. Always follow local installation regulations.
