KAISER ELEKTRO guaina di tenuta per cavi 4-8 mm 9059-44

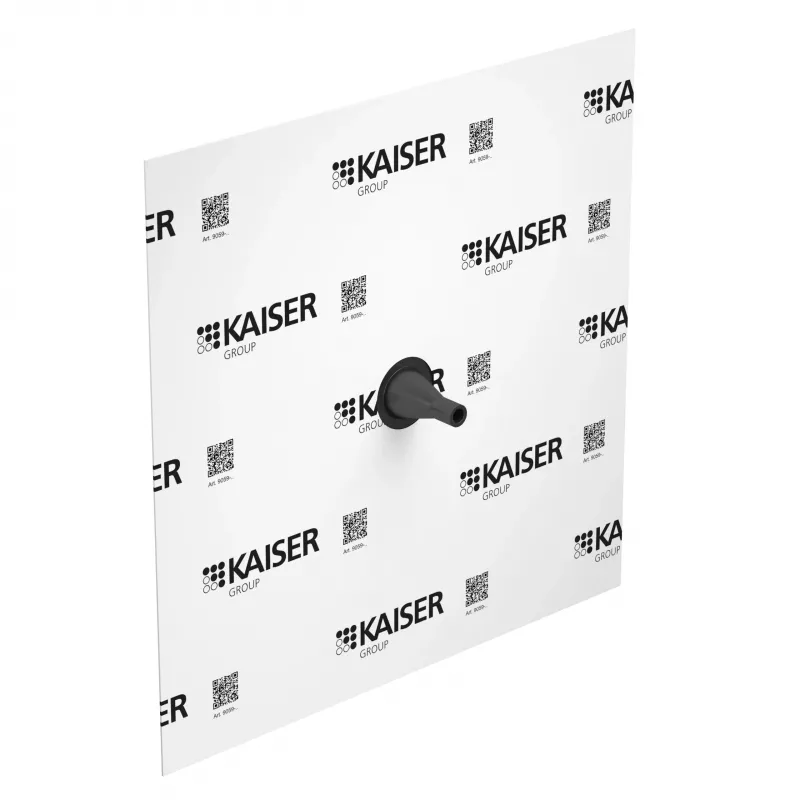

The KAISER ELEKTRO Cable Sealing Sleeve 9059-44 is a high-quality EPDM sealing sleeve designed for reliable cable entry sealing in junction boxes, device boxes, and conduits. With a cable diameter range of 4-8 mm and an M20 mounting opening, it provides a secure, push-in installation that achieves up to IP65 protection when properly installed. This sleeve is halogen-free, UV-resistant, and flame retardant, making it suitable for demanding indoor and outdoor applications.

Advantages

• Simple push-in installation saves time and effort
• Excellent sealing performance up to IP65
• Wide operating temperature range from -40°C to +120°C
• Resistant to acids, alkalis, and ozone
• Halogen-free and flame retardant for enhanced safety

Suitable for

• Sealing cable entries in electrical junction boxes and device boxes
• Use in conduits and cable glands
• Indoor and outdoor installations requiring weatherproof sealing
• Industrial environments with exposure to chemicals or extreme temperatures

Key specifications

• Product Type: Cable Sealing Sleeve
• Cable Diameter Range: 4 - 8 mm
• Material: EPDM (Ethylene Propylene Diene Monomer)
• Color: Black
• Mounting Opening Diameter: 20 mm (M20)
• IP Protection Rating (installed): Up to IP65
• Operating Temperature Range: -40°C to +120°C
• Halogen-free: Yes
• UV Resistance: Yes
• Flame Retardant: Yes
• Installation Type: Push-in

Recommendations

For optimal sealing performance, ensure the cable diameter is within the specified range and the mounting opening is clean and free of debris. The sleeve should be fully inserted to achieve the rated IP protection.
