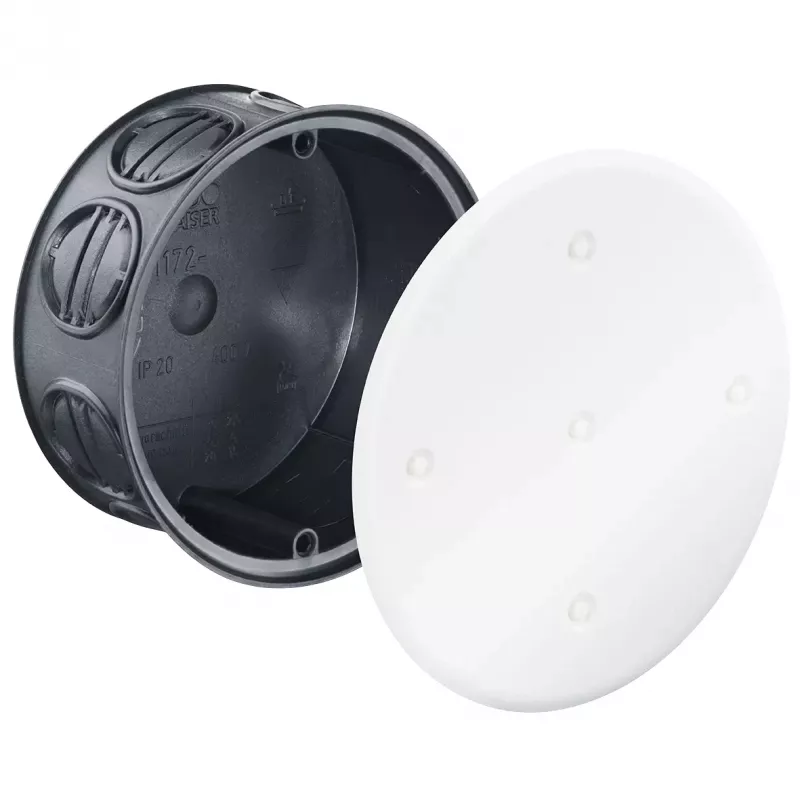

Kaiser Elektro KAIS scatola di derivazione 1172-92 con coperchio a vite

The Kaiser Elektro KAIS Junction Box 1172-92 with Screw Lid is a high-quality surface-mount junction box designed for reliable electrical installations. Manufactured by Kaiser Elektro, a trusted name in electrical components, this junction box offers robust protection and easy installation for various wiring applications.

Advantages

This junction box features a screw lid for secure closure, ensuring dust and moisture protection with an IP54 rating. Made from durable polypropylene (PP), it is halogen-free and withstands temperatures from -25 °C to +40 °C. The box includes 8 elastic cable entries (M20) for flexible cable management, and its compact internal depth of 30 mm makes it suitable for confined spaces.

Suitable for

• Surface-mounted electrical installations in residential and commercial buildings
• Connection and junction points for cables up to M20 size
• Indoor and outdoor applications requiring IP54 protection

Key specifications

• Product Type: Junction Box / Connection Box
• Lid Type: Screw Lid
• Material: Polypropylene (PP)
• Colour: Grey
• Protection Class: IP54
• Rated Insulation Voltage (Ui): 400 V
• Glow Wire Test: 650 °C
• Number of Cable Entries: 8
• Cable Entry Type: Elastic entries (M20)
• Halogen-Free: Yes
• Temperature Range: -25 °C to +40 °C
• Mounting Type: Surface Mount
• Internal Depth: Approx. 30 mm
• Standards/Certifications: VDE, CE

Recommendations

For optimal performance, use with appropriate cable glands and ensure proper sealing of unused entries. This junction box is ideal for new installations or retrofitting in existing systems.
