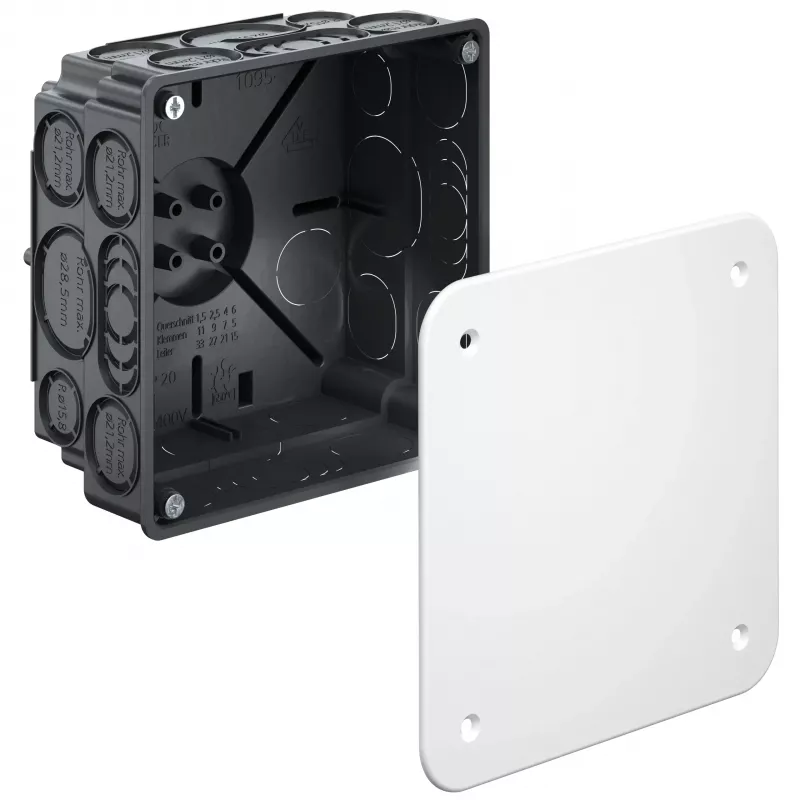

Kaiser Elektro Scatola di derivazione da incasso 100 UP 1095-01

The Kaiser Elektro Flush-Mounted Junction Box 100 UP 1095-01 is a high-quality junction box designed for flush-mounted installations in solid walls and masonry. Made from durable thermoplastic (polypropylene PP) in grey (RAL 7035), this box offers reliable protection and easy installation for electrical connections.

Advantages

This junction box features a snap-on lid for quick access and eight elastic sealing membranes for cable entries, ensuring a secure fit. It is halogen-free and passes the glow wire test at 650 °C, providing enhanced safety. The box is suitable for a wide temperature range from -5 °C to +60 °C.

Suitable for

• Flush-mounted electrical installations in solid walls and masonry
• Junction and connection points for cables
• Use with screw mounting for secure placement

Key specifications

• Installation Type: Flush-mounted (UP)
• Material: Thermoplastic (Polypropylene PP)
• Colour: Grey (RAL 7035)
• Ingress Protection: IP20
• Number of Cable Entries: 8
• Cable Entry Type: Elastic sealing membranes
• Lid Type: Snap-on lid
• Halogen-free: Yes
• Glow Wire Test: 650 °C
• Rated Insulation Voltage: 400 V
• Temperature Range: -5 °C to +60 °C
• Shape: Square

Recommendations

For optimal performance, use with appropriate cable glands and ensure proper mounting. This junction box is ideal for residential and commercial electrical installations requiring a reliable flush-mounted solution.
