Kaiser Elektro scatola di derivazione da soffitto 99 mm uscita 60 mm 1245-63

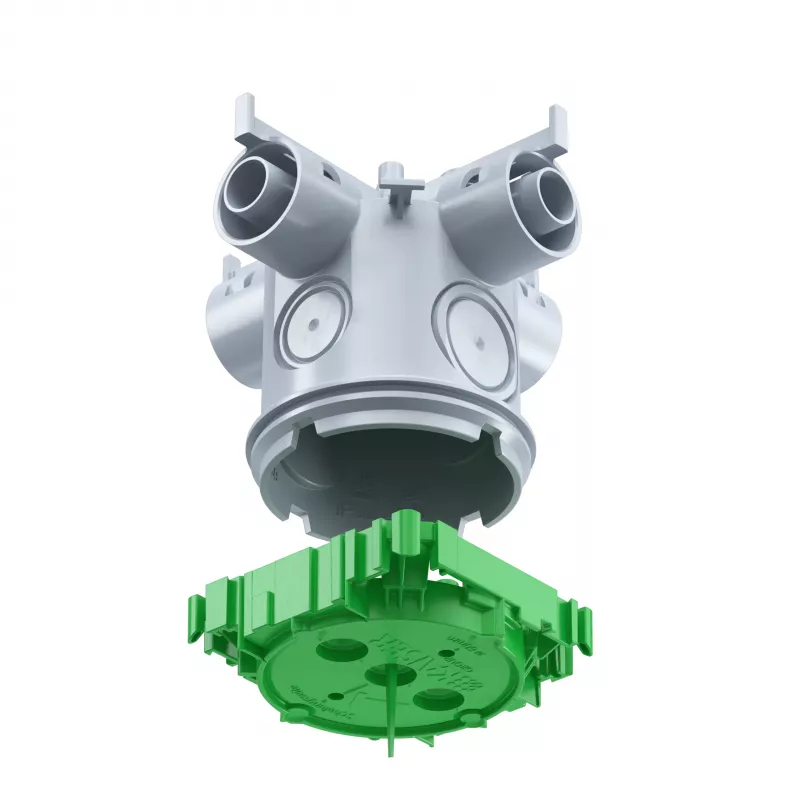

The Kaiser Elektro Ceiling Junction Box 1245-63 is a high-quality surface-mounted junction box designed for secure and reliable electrical connections in ceiling installations. With an outer diameter of 99 mm and an outlet diameter of 60 mm, this box provides ample space for wiring while maintaining a compact profile. Manufactured from durable, halogen-free, and flame-retardant plastic in grey, it ensures safety and longevity in various environments.

Advantages

This junction box offers easy installation with integrated terminal blocks for up to 2.5 mm² conductors, supporting a rated voltage of 400 V and current of 16 A. Its IP20 rating makes it suitable for indoor use, and the eight cable entries provide flexibility for multiple connections. The 3-pole terminal ensures efficient power distribution for lighting applications.

Suitable for

• Connecting luminaires and lights to ceilings
• Surface-mounted electrical installations in dry indoor areas
• Residential and commercial building projects

Key specifications

• Product Type: Ceiling Junction Box
• Mounting Type: Surface-mounted
• Material: Plastic
• Colour: Grey
• Outer Diameter: 99 mm
• Outlet Diameter: 60 mm
• Depth: 63 mm
• IP Rating: IP20
• Halogen-free: Yes
• Flame Retardant: Yes
• Number of Cable Entries: 8
• Max. Conductor Cross-section: 2.5 mm²
• Rated Voltage: 400 V
• Rated Current: 16 A
• Terminal Type: Integrated Terminal Block
• Number of Poles: 3-pole
• Operating Temperature Range: -5°C to +60°C

Recommendations

For optimal performance, ensure proper cable stripping and secure termination within the integrated terminal blocks. This junction box is ideal for new installations or retrofitting existing ceiling lights.
