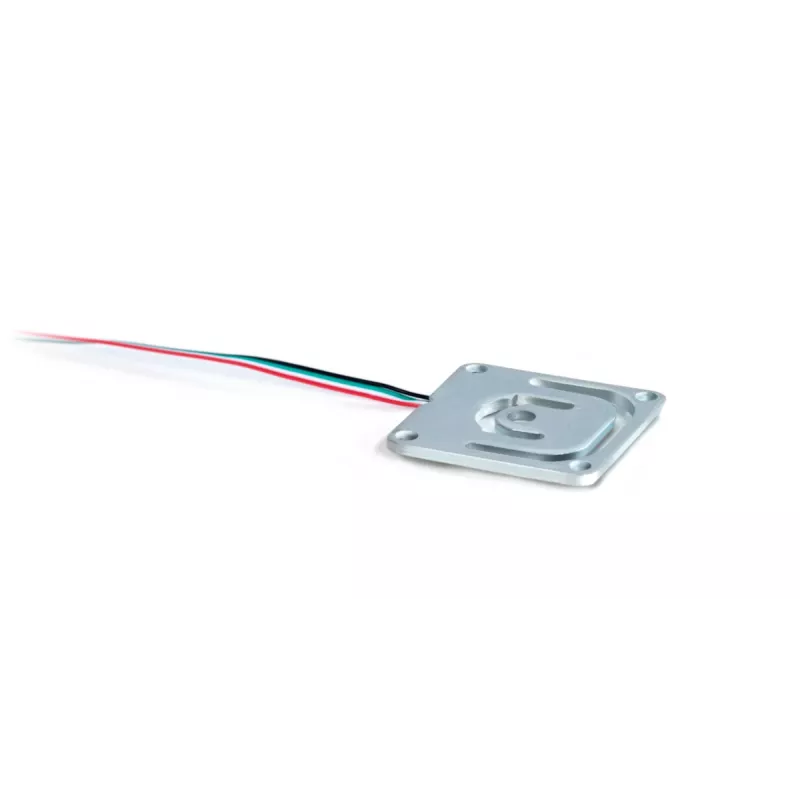

Kern CK 30-Y1 Cella di carico, capacità 30 kg, precisione C3, IP65, lega di alluminio

In industrial weighing applications, from bench scales to platform systems, the Kern CK 30-Y1 load cell delivers reliable and precise measurements. Its 30 kg rated capacity and C3 accuracy class make it suitable for a wide range of weighing tasks where consistent performance is required.

Key specifications

• Rated capacity: 30 kg
• Accuracy class: C3
• Rated output: 2.0 ± 0.002 mV/V
• Material: Aluminum alloy
• Protection class: IP65
• Input resistance: 400 ± 20 Ω
• Output resistance: 350 ± 3 Ω
• Recommended excitation voltage: 5-12 V DC
• Maximum excitation voltage: 18 V DC
• Compensated temperature range: -10°C to +40°C
• Operating temperature range: -20°C to +50°C
• Safe overload: 120% F.S.
• Ultimate overload: 150% F.S.
• Zero balance: ±1.0% F.S.
• Creep (30 min): ±0.02% F.S.
• Cable length: 3 m
• Recommended platform size: up to 400 x 400 mm

Why choose it

The CK 30-Y1 combines high accuracy with robust construction. Its aluminum alloy body is lightweight yet durable, and the IP65 rating ensures protection against dust and water jets, making it suitable for demanding environments. The C3 accuracy class guarantees reliable measurements for legal-for-trade and industrial applications.

Ideal use cases

• Bench scales and counting scales
• Platform scales up to 400 x 400 mm
• Industrial weighing systems
• Quality control and production monitoring

Good to know

The load cell features a 3-meter shielded cable for easy integration. It operates within a compensated temperature range of -10°C to +40°C, ensuring stable performance in varying conditions. For optimal results, use a stable excitation voltage between 5 and 12 V DC.
