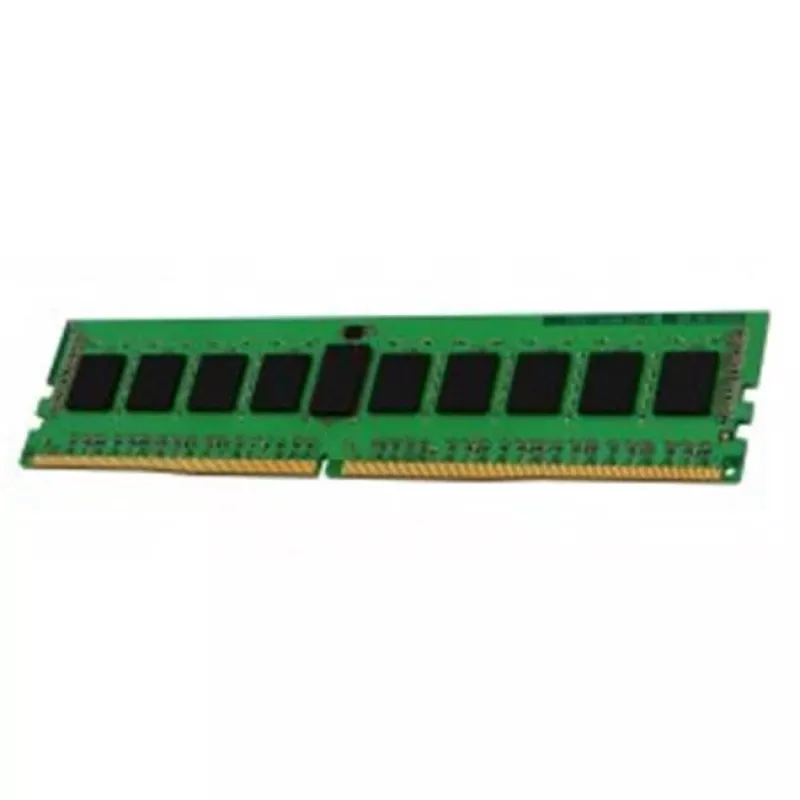

Kingston KVR32N22S8/8 | 8 GB | DDR4 | 3200 MHz | PC/server | Registered No | ECC No

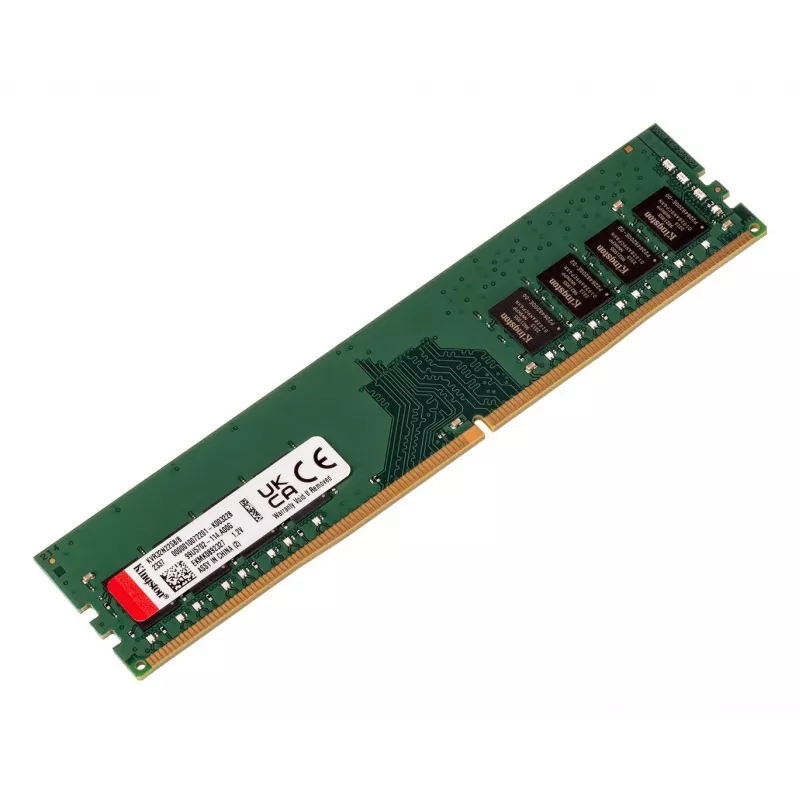

ValueRAM KVR32N22S8/8 is an 8GB DDR4-3200 288-pin DIMM memory module from Kingston designed for desktop systems and servers. The module is built as 1G x 64-bit (8GB) using eight 1G x 8-bit FBGA components and is programmed to JEDEC DDR4-3200 timing of 22-22-22 at 1.2V with gold contact fingers for reliable connection.

Advantages

The Kingston DDR4 8GB 3200MHz module offers a standard JEDEC timing profile for compatibility, a 288-pin DIMM form factor for easy installation in supported motherboards, and low-voltage 1.2V operation for efficient power use. Its CL22 latency and 3200 MHz clock speed provide a balance between performance and compatibility across many PC and server configurations.

Suitable for

• Desktop PCs requiring a single 8GB DDR4 module
• Entry-level workstations and servers with DDR4-3200 support
• System upgrades to improve multitasking and application responsiveness

Key specifications

• Capacity: 8 GB
• Type: DDR4 SDRAM
• Speed: 3200 MHz (DDR4-3200)
• CAS Latency: CL22 (22-22-22)
• Form factor: 288-pin DIMM
• Voltage: 1.2 V
• Module configuration: 1Rx8 (1G x 64-bit) using eight 1G x 8-bit FBGA components
• Manufacturer part number (MPN): KVR32N22S8/8
• EAN: 0740617296068

How to use

Power down the system and unplug it before installing the memory module. Open the chassis, locate an empty 288-pin DIMM slot compatible with DDR4 modules, align the notch on the module with the slot keyed connector, and press firmly until the module clicks into place and the retention clips engage. Reassemble the system, power it on, and verify the module is recognized in BIOS/UEFI or the operating system.

Recommendations

Install this Kingston DDR4 8GB 3200MHz module in a compatible motherboard that supports DDR4-3200 speeds and 288-pin DIMM form factor. For dual-channel operation, install matching modules in the recommended paired slots. Ensure BIOS/UEFI settings are set to the appropriate JEDEC profile or XMP if supported and required.
