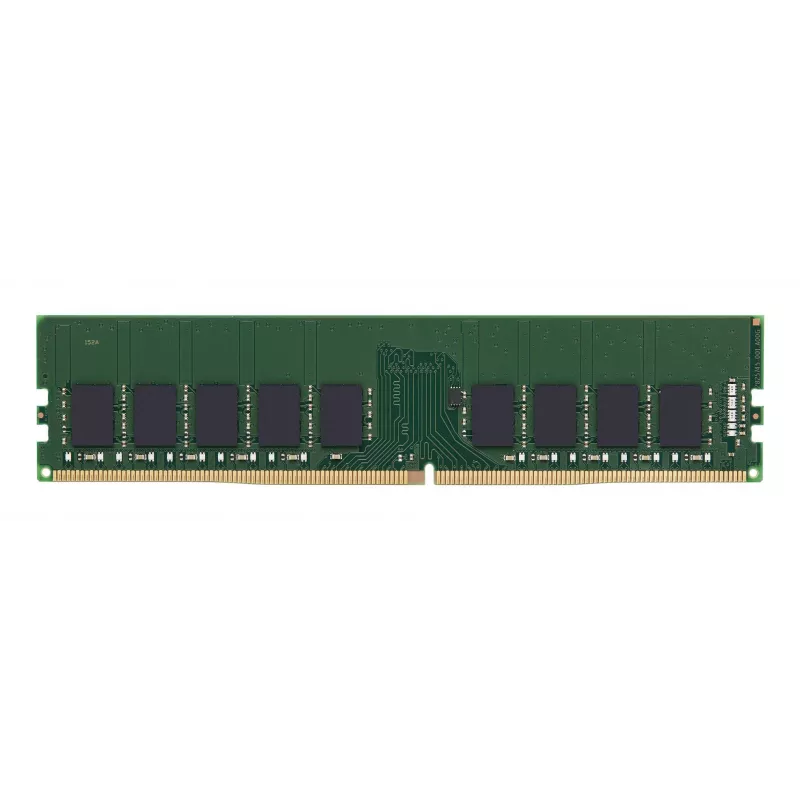

Kingston modulo DDR4 32 GB DIMM 288 pin (KSM32ED8/32HD)

Kingston KSM32ED8/32HD is a 32 GB DDR4-3200 ECC server memory module in a 288-pin DIMM format. The module is organized as 2G x 72-bit (2 ranks x8) using eighteen 2G x 8 FBGA components and is programmed to JEDEC DDR4-3200 timings of 22-22-22 at 1.2 V. Gold contact fingers provide reliable electrical connection for compatible server motherboards.

Advantages

This Kingston DDR4 32 GB 3200 MHz module supports ECC for detection and correction of single-bit memory errors, increasing data integrity in server environments. Its JEDEC-standard SPD timings (CL22) and 1.2 V operation ensure compatibility with systems designed for DDR4-3200 memory. The 288-pin DIMM form factor and industry-grade components make it suitable for rack and tower servers requiring stable, high-density memory.

Suitable for

• Server systems and workstations requiring ECC memory
• Enterprise applications with high uptime and data-integrity needs
• Memory upgrades where 288-pin DDR4 DIMM slots are available

Key specifications

• Capacity: 32 GB (2G x 72-bit)
• Memory type: DDR4 SDRAM
• Speed: DDR4-3200 (3200 MHz)
• CAS latency: CL22 (22-22-22)
• ECC: Yes (error-correcting code)
• Form factor: 288-pin DIMM
• Organization: 2Rx8, based on eighteen 2G x 8 FBGA components
• Voltage: 1.2 V
• Manufacturer part number (MPN): KSM32ED8/32HD
• EAN: 0740617348231

How to use

Power off the server and follow the motherboard or system vendor instructions for handling memory modules. Align the 288-pin DIMM with the memory slot keyed notch, insert the module evenly until the retention clips engage. After installation, power on and verify that the system recognizes the module and that ECC is enabled if required by the platform BIOS/UEFI.

Recommendations

Install modules in matched pairs or according to the server vendor memory population guidelines to ensure optimal performance and ECC operation. Use anti-static precautions when handling DIMMs and update system firmware if necessary for DDR4-3200 support.
