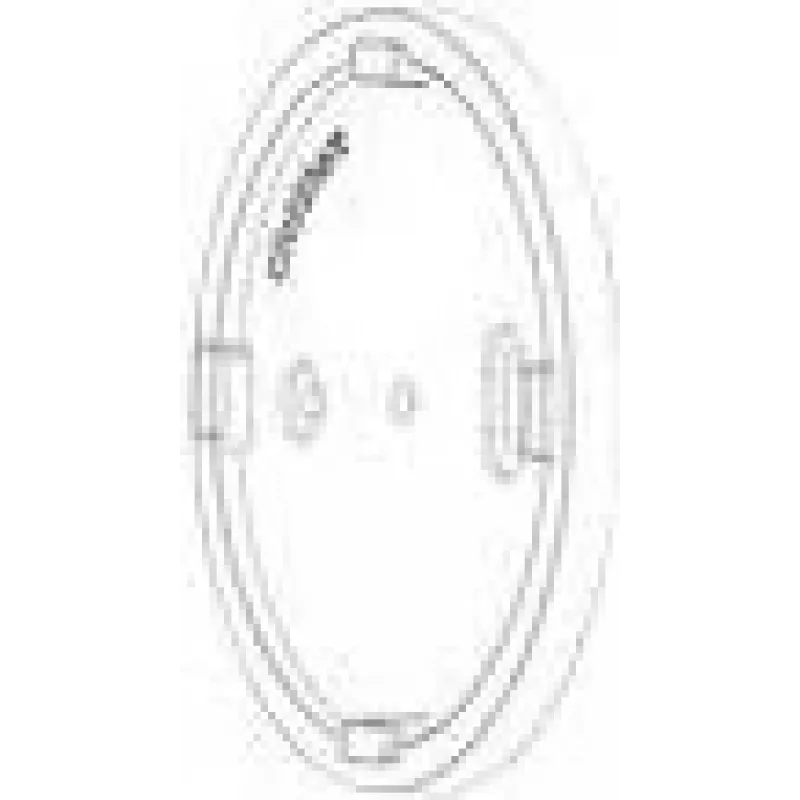

Kit di montaggio a parete BARCO per ClickShare CX-20 e CX-30 (MPN B573071K)

The BARCO wall mounting kit for ClickShare CX-20 and CX-30 provides a secure solution to attach the ClickShare base unit directly to a wall. Designed to accommodate the form factor of the CX-20 and CX-30 systems, the kit helps create a tidy, permanent installation that keeps the base unit stable and accessible while enabling organized cable routing for power and network connections.

Advantages

This wall mounting kit offers a compact footprint and a sturdy mounting interface that reduces desk clutter and minimizes the risk of accidental displacement of the ClickShare base unit. It supports consistent placement for better wireless connectivity and predictable device orientation during meetings. The design simplifies cable management, resulting in a neater appearance and easier maintenance of conference and huddle room setups.

Suitable for

• Conference rooms requiring a permanent ClickShare installation
• Small meeting or huddle spaces with limited table space
• Training rooms or presentation areas where tidy cable routing is desired
• Environments prioritizing stable, fixed placement of AV hardware

Key specifications

• Compatibility: designed for ClickShare base units CX-20 and CX-30
• Mounting type: fixed wall mount for vertical surface installation
• Material and finish: durable metal construction with protective coating for long-term use
• Cable routing: integrated pathways to guide power and network cables neatly behind the unit
• Load capacity: engineered to support the weight and dimensions of the compatible ClickShare base units

How to use

Position the mounting bracket on the intended wall surface at the desired height and mark the fixing points. Secure the bracket to the wall using appropriate anchors and fasteners for the wall material. Attach the ClickShare base unit to the bracket according to the kit’s alignment points, then route the power and network cables through the integrated pathways and connect them to the base unit. Verify that the unit is stable and that cables are secured to prevent strain on the connectors.

Recommendations

Install the bracket on a load-bearing section of wall and use wall anchors suited to the substrate (concrete, brick, or stud-mounted drywall). Maintain clearance around the unit for ventilation and access to ports. For optimal operation, mount the unit at a height that allows easy cable connection and periodic maintenance.
