Kit di montaggio DeLOCK D-Sub 9 maschio su RJ12 femmina bianco

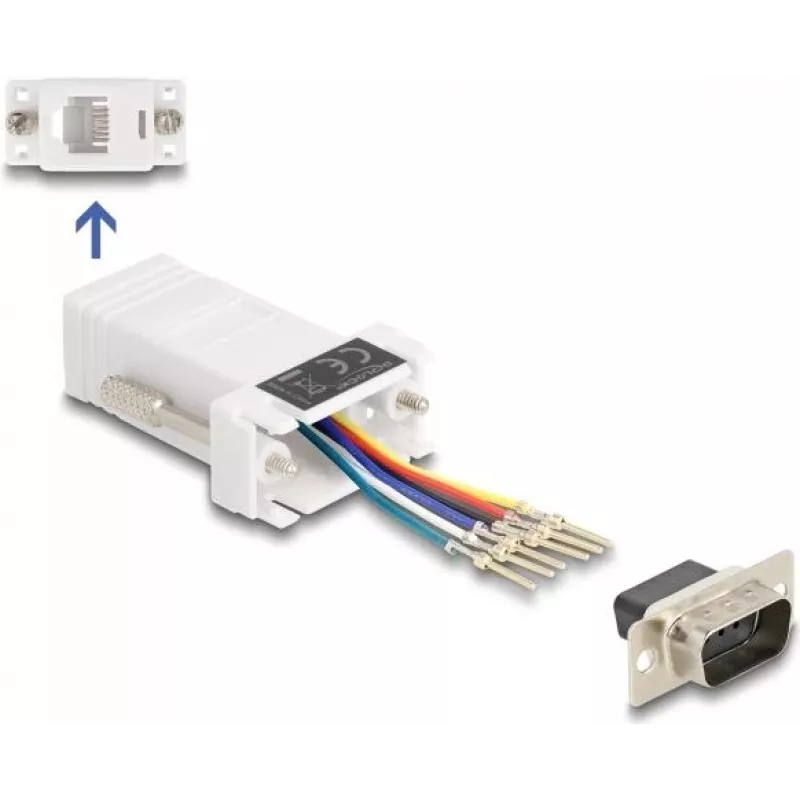

This DeLOCK D-Sub 9 pin male to RJ12 female assembly kit allows conversion of a D-Sub 9 serial interface to an RJ12 connection using an ISDN, telephone or RJ12 cable. The kit includes a D-Sub 9 housing and RJ12 female socket and is intended for applications where flexible pin assignment and a compact adapter are required. Contacts can be positioned individually inside the D-Sub 9 housing and snap into place to ensure reliable electrical contact.

Advantages

The assembly kit provides flexible and individual pin assignment for the D-Sub 9 connector and a secure snap-in mechanism for reliable contact. It supports use with standard ISDN and telephone cables and comes in a white housing that is suitable for visible installations. The modular design makes it suitable for custom wiring and repairs.

Suitable for

• Converting D-Sub 9 serial ports to RJ12 for telephony or ISDN connections
• Custom wiring and prototyping of serial interfaces
• Repairing or replacing damaged D-Sub 9 to RJ12 connections

Key specifications

• Connector 1: D-Sub 9 (male housing for contact assembly)
• Connector 2: RJ12 (female)
• Product colour: White
• Brand: DELOCK
• MPN: 67073
• EAN: 4043619670734

How to use

Open the D-Sub 9 housing and insert the required contacts according to the desired pinout. Place the assembled contacts into the housing until they click into position. Connect the RJ12 female socket to an ISDN, telephone or RJ12 cable and secure the housing cover. Test the connection with appropriate equipment to verify correct wiring before final installation.

Recommendations

Ensure correct pin assignment and test continuity before connecting live equipment. Use suitable tools for contact insertion and avoid excessive force when snapping the sockets into the D-Sub 9 housing.
