Kit di montaggio EK Water Blocks EK-Quantum Torque Static FF 45°

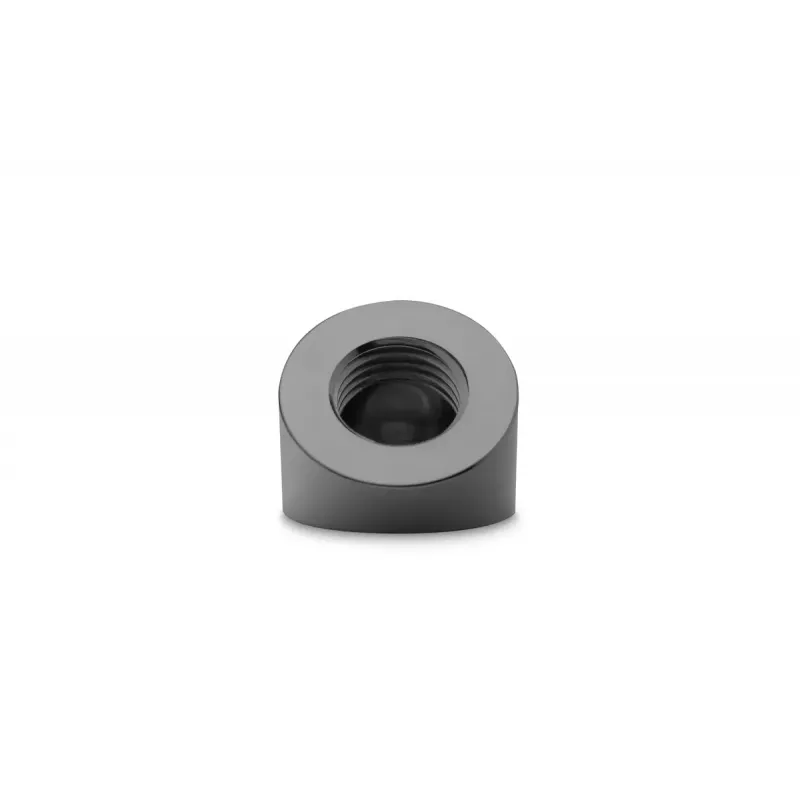

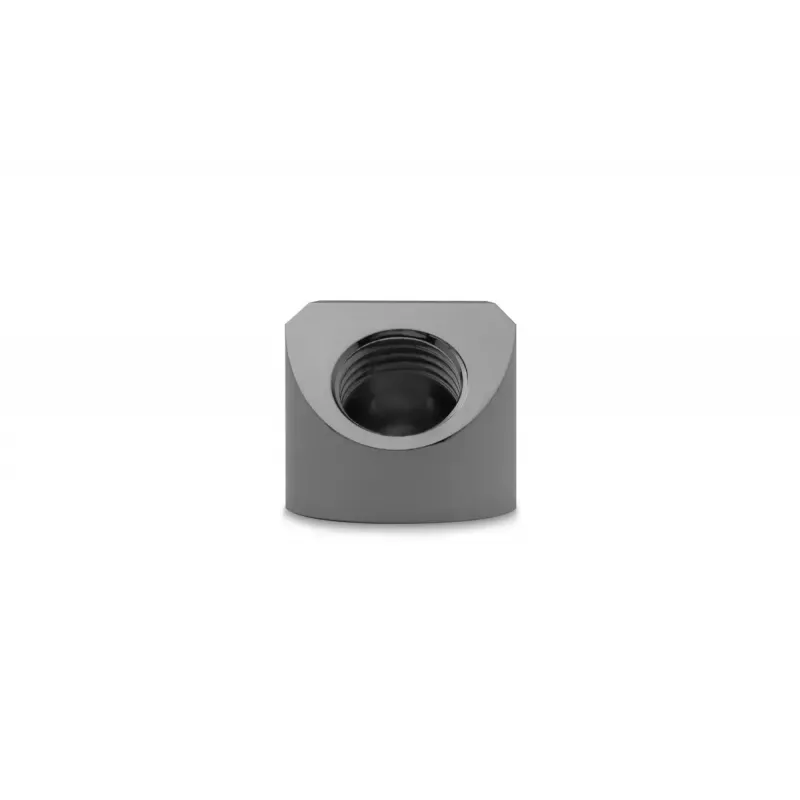

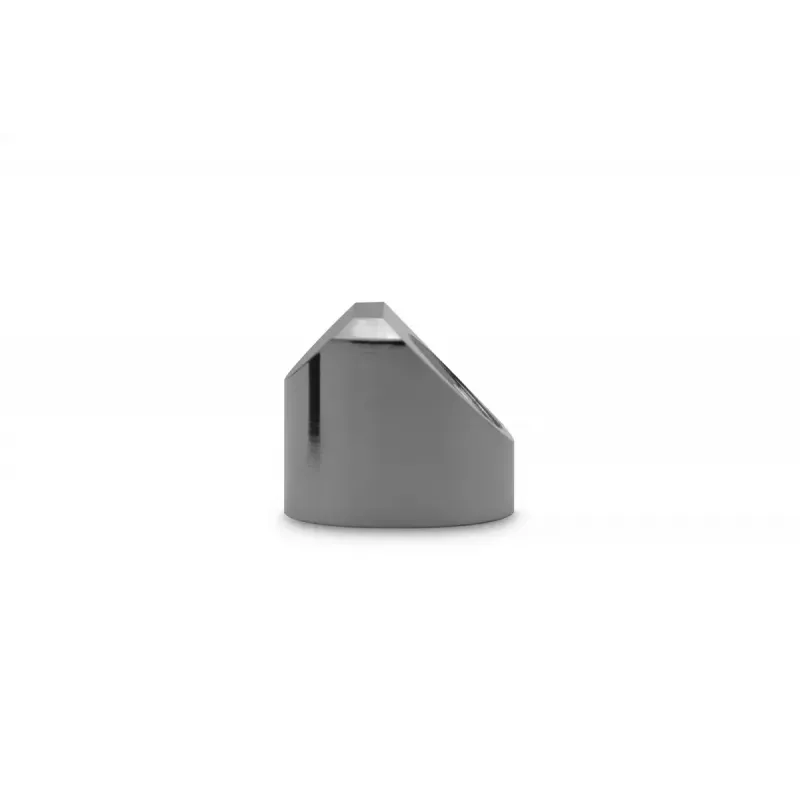

EK-Quantum Torque Static FF 45° is a 45° adapter fitting with two female G1/4" threads. Made of durable brass with a grey finish, the mounting kit has a height of 20.5 mm and a diameter of 23 mm. The adapter enables connection of two components or extenders with male G1/4" threads to expand tubing options in a water-cooled PC and to reduce or avoid tube bends.

Advantages

The EK-Quantum Torque series combines precise manufacturing and a robust industrial aesthetic. This static FF 45° adapter provides a secure, modular connection between liquid-cooling components and tubing while maintaining compatibility across EK Water Blocks fittings. A removable color ring option allows a subtle visual accent. The brass construction and grey finish offer durability and corrosion resistance appropriate for PC water-cooling loops.

Suitable for

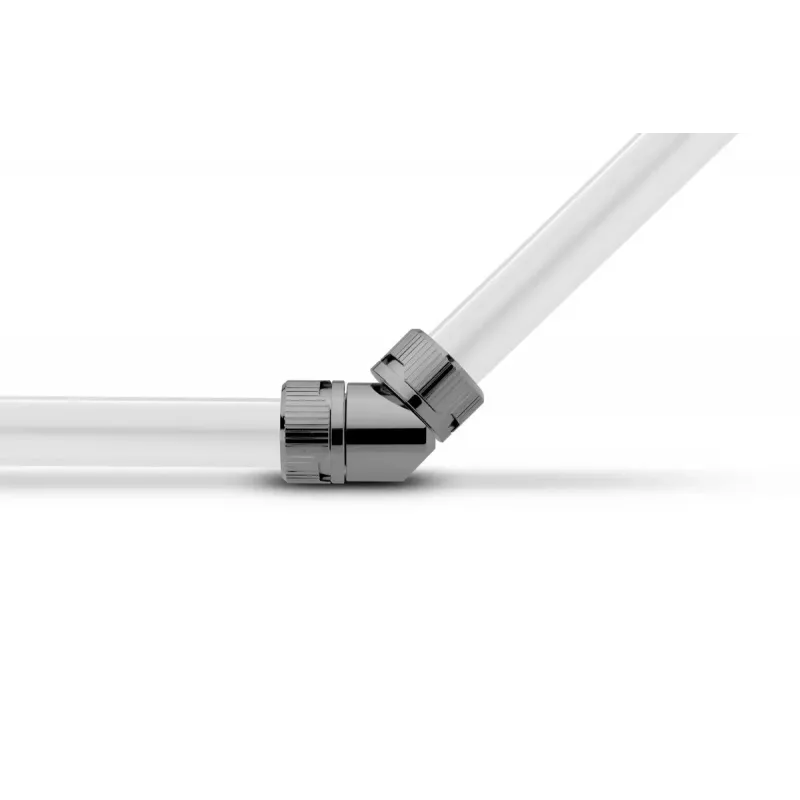

• Connecting two male G1/4" fittings or extenders in a water-cooling loop
• Changing tubing direction with a 45° offset to reduce tube stress
• Applications where compact angled connections are needed inside a PC case

Key specifications

• Type: Static 45° adapter, female-to-female (FF)
• Thread standard: G1/4" (both ends)
• Material: Brass
• Finish: Grey
• Height: 20.5 mm
• Diameter: 23 mm
• Brand: EK Water Blocks
• MPN / EAN: 3831109826645

How to use

Thread the adapter onto the male G1/4" threads of two fittings, adapters, or extenders until hand-tight, then secure with an appropriate tool if needed without over-torquing. Install the connected assembly in your tubing run to achieve the desired 45° change in direction or to join components. Ensure all thread seals or O-rings specified by the connected fittings are present and seated correctly before filling the loop.

Recommendations

Inspect threads and seals before installation, tighten to manufacturer-recommended torque to prevent leaks, and perform a pressure or leak test after completing the loop. Use compatible EK Torque fittings and standard G1/4" components to maintain reliable connections.
