Kit di montaggio LGA 1700 per serie Orcus di RAIJINTEK (MPN 0R40B00239)

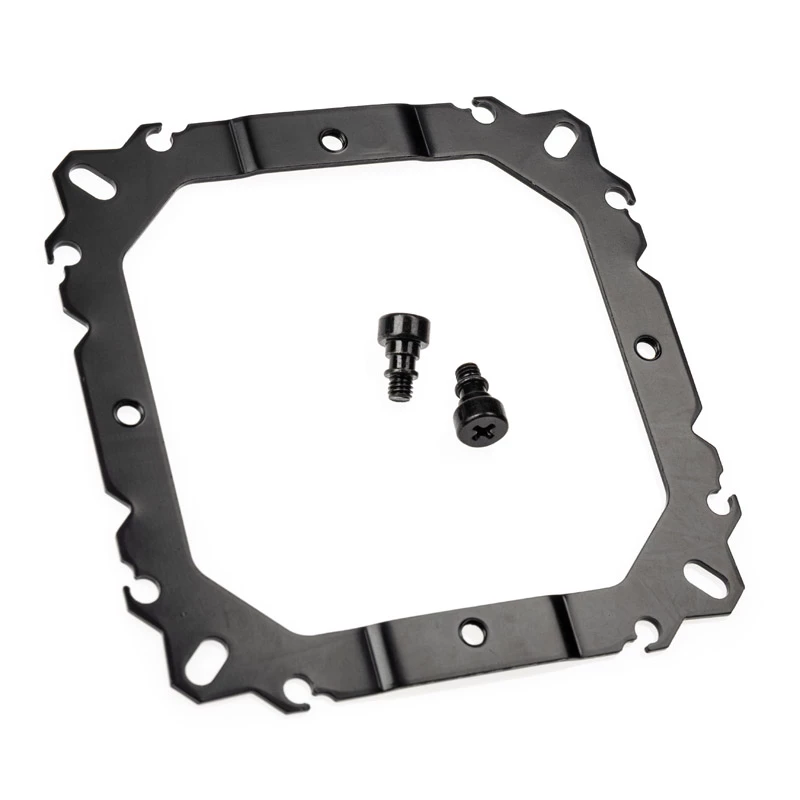

RAIJINTEK Mounting Kit LGA 1700 for Orcus Series is an adapter set that enables Orcus-series CPU coolers to be mounted on Intel LGA 1700 sockets used in 12th and 13th generation Intel processors. The kit contains the mechanical brackets, a reinforced backplate and the fasteners required to secure an Orcus cooler to a motherboard with LGA 1700 mounting holes, allowing compatibility for upgrades, replacements or new PC builds.

Advantages

The mounting kit provides a direct mechanical solution to adapt existing Orcus coolers to the LGA 1700 socket without modifying the cooler or motherboard. Components are designed for a stable and flat mounting surface to ensure consistent contact pressure between the cooler base and CPU heat spreader. Supplied fasteners and backplate simplify installation and improve mounting reliability compared with makeshift adapters.

Suitable for

• Upgrading an Orcus-series CPU cooler for use with Intel 12th or 13th generation processors
• Replacing a worn or missing LGA 1700 mounting assembly on a PC cooler
• Building a new desktop system where an Orcus cooler must be fitted to an LGA 1700 motherboard

Key specifications

• Compatibility: Intel LGA 1700 socket mounting holes
• Contents: mounting brackets, reinforced backplate, assortment of screws and spacers
• Material: metal brackets and steel fasteners for structural stability
• Purpose: mechanical adapter for Orcus-series CPU coolers to LGA 1700

How to use

Prepare the system by powering down and grounding yourself to avoid electrostatic discharge. Remove the existing cooler according to the cooler manufacturer’s instructions and clean the CPU heat spreader surface. Position the supplied backplate on the rear of the motherboard aligning with the LGA 1700 hole pattern, then install the brackets over the CPU area on the front side. Fit the spacers and screws supplied, and tighten evenly in a cross pattern to achieve uniform pressure. Reapply thermal interface material if required and mount the Orcus cooler onto the new brackets following the cooler’s standard mounting procedure.

Recommendations

Use a torque-limited or cautious approach when tightening fasteners: tighten screws incrementally and evenly to avoid motherboard bending and to maintain even contact between cooler and CPU. Verify that standoffs and spacers match the Orcus cooler’s mounting points before applying full pressure. If unsure, consult the cooler manual or a technician to ensure correct installation and to avoid damage to the CPU or motherboard.
