Kit di montaggio universale Telegärtner H02010B0013 grigio

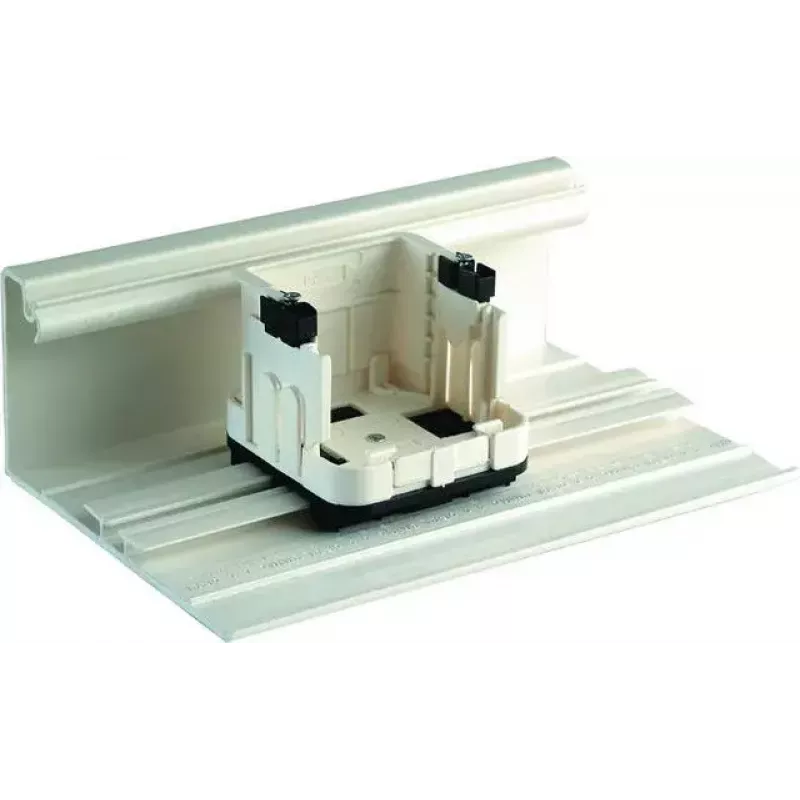

The Telegärtner Universal Equipment Mounting Set H02010B0013 is a grey, three-sided half-shell mounting solution designed to hold data and communication outlets (AMJ/UMJ series) securely inside common perimeter cable ducts and mounting channels. It accommodates required bending radii for copper and fibre-optic cables and can be fixed to various carrier rails and duct systems, offering a compact and durable way to install RJ45 and ISDN outlets in residential and commercial environments.

Advantages

The mounting set is compatible with many wiring duct manufacturers (e.g., Ackermann, Rehau, Tehalit) and can be snapped or fixed onto C-rails, top-hat rails and combi-rails with 35 mm pitch. Its three-sided shell can be fitted to shield outlets from power cables, and the design supports reliable mechanical support while keeping a small footprint. The grey finish provides a neutral appearance suitable for diverse installations.

Suitable for

• Installing AMJ and UMJ data outlets into perimeter cable ducts
• Mounting RJ45 and ISDN S0 modules where space is limited
• Retrofitting outlets in existing duct systems from various manufacturers

Key specifications

• Manufacturer: Telegärtner
• Model / MPN: H02010B0013
• Color: Grey
• Compatible with: Ackermann, Rehau, Tehalit and similar cable ducts
• Mounting: Fixable to C-rails, top-hat rails and combi-rails (35 mm pitch)
• Design: Three-sided half-shell for outlet protection and bend-radius accommodation
• Suitable outlets: AMJ/UMJ series, RJ45 (8P) and ISDN S0 modules

How to use

Place the half-shell mounting set into the chosen perimeter cable duct or onto the compatible rail. Position the data outlet (AMJ/UMJ module) inside the half-shell so that cable entry and bend radii are respected. If electromagnetic separation from power cables is required, slide the three-sided shell into place to provide shielding. Secure the mounting set to the duct or rail with appropriate clips or screws compatible with the duct manufacturer and rail type.

Recommendations

Ensure cables maintain their minimum bend radius inside the mounting set and verify mechanical compatibility with the target duct system before final installation. Use the mounting set with AMJ/UMJ outlets specified for RJ45 or ISDN to avoid mismatched components.
