Kit di supporto Brodit 202010 nero alluminio plastica

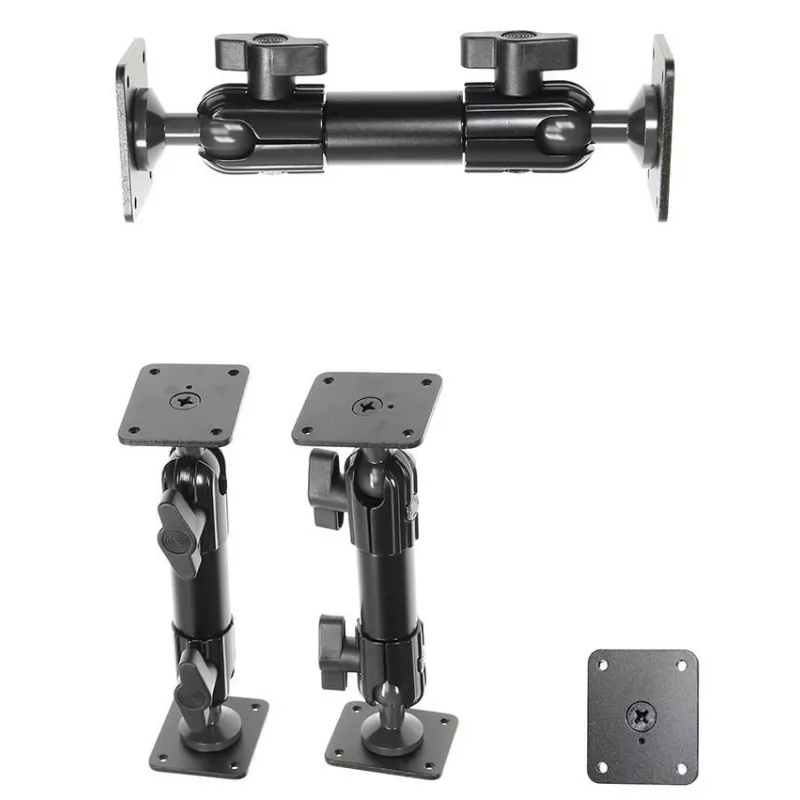

The Brodit 202010 Standard Duty Pedestal Mount provides a stable installation for devices in vehicles or on any flat surface. Constructed from black aluminium and plastic, the mount supports devices up to 2 kg and features a 2 cm ball head for secure connections. AMPS-pattern holes make it compatible with Brodit holders that include a tilt-swivel mechanism, while the rod and ball heads allow flexible positioning.

Advantages

The aluminium rod and plastic wingnuts offer a balance of strength and low weight. Ball heads tilt 210° and swivel 360° to enable precise angling of the device. AMPS hole pattern ensures compatibility with a wide range of Brodit tilt-swivel holders. The black finish is unobtrusive and suitable for vehicle interiors and flat mounting surfaces.

Suitable for

• Mounting mobile devices, tablets or small equipment up to 2 kg
• Vehicle dashboards, consoles or other flat surfaces
• Installations requiring adjustable tilt (210°) and full swivel (360°)

Key specifications

• Brand: Brodit
• Model / MPN: 202010
• EAN: 7320282020101
• Material: aluminium rod, plastic wingnuts
• Color: Black
• Maximum supported weight: 2 kg
• Ball diameter: 2 cm
• Ball head tilt: 210°; swivel: 360°
• Mounting pattern: AMPS (compatible with Brodit tilt-swivel holders)

How to use

Attach the pedestal base to a flat surface using appropriate fasteners (not included). Secure the aluminium rod to the base and mount the device holder onto the 2 cm ball head using the AMPS hole pattern. Adjust the angle by loosening the plastic wingnuts, position the ball heads to the desired tilt and swivel, then tighten the wingnuts to lock the position. Verify that the installed device weight does not exceed 2 kg.

Recommendations

For reliable long-term use, use corrosion-resistant fasteners suitable for the mounting surface and periodically check that wingnuts and fasteners remain tight. Avoid exceeding the 2 kg weight limit and position the mount to prevent obstruction of vehicle controls or driver view.
