Supporto a doppia sfera RAM Mounts RAM-101U-2461

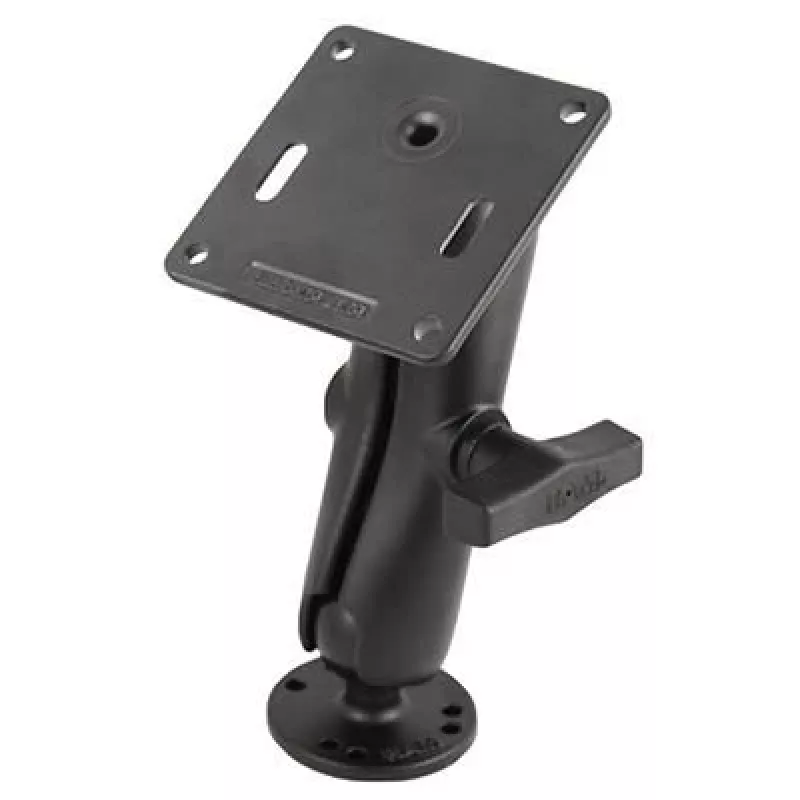

The RAM-101U-2461 is a double ball mount featuring a standard-length double socket arm, a 2.5" (63.5 mm) diameter round base with the universal AMPS hole pattern, and a 3.625" (92.075 mm) square VESA plate. The VESA plate includes a 75 x 75 mm hole pattern. The mount is constructed from aluminum, finished in black, and supports devices up to 1.8 kg while providing a compact and stable attachment solution.

Advantages

The patented 1.5" (38.1 mm) rubber ball-and-socket system provides nearly infinite adjustment and secure positioning with adjustment points at both socket ends of the arm. Aluminum construction offers strength with reduced weight, and the universal AMPS base plus the 75 x 75 mm VESA plate ensure broad compatibility with accessories and devices.

Suitable for

• Mounting small tablets and displays up to 1.8 kg
• Attaching GPS units, small monitors or control panels using AMPS or VESA interfaces
• Use in vehicles, boats, or workstations where compact, adjustable mounts are needed

Key specifications

• Model: RAM-101U-2461
• Material: Aluminum
• Finish: Black
• Ball diameter: 1.5" (38.1 mm)
• Base diameter: 2.5" (63.5 mm) with AMPS hole pattern
• VESA plate: 3.625" square with 75 x 75 mm hole pattern
• Maximum recommended load: 1.8 kg
• MPN: RAM-101U-2461
• EAN: 793442902888

How to use

Attach the round AMPS base to a suitable flat surface using appropriate fasteners for your installation. Connect one socket of the double arm to the base and the other socket to the 75 x 75 mm VESA plate. Secure your device to the VESA plate using the correct screws for the device's mounting holes. Adjust the ball-and-socket joints at either end of the arm to achieve the desired viewing angle, then tighten the sockets to hold the position.

Recommendations

Do not exceed the maximum recommended load of 1.8 kg. Use corrosion-resistant hardware for marine installations and periodically check fasteners and socket tightness to maintain a secure mount.
