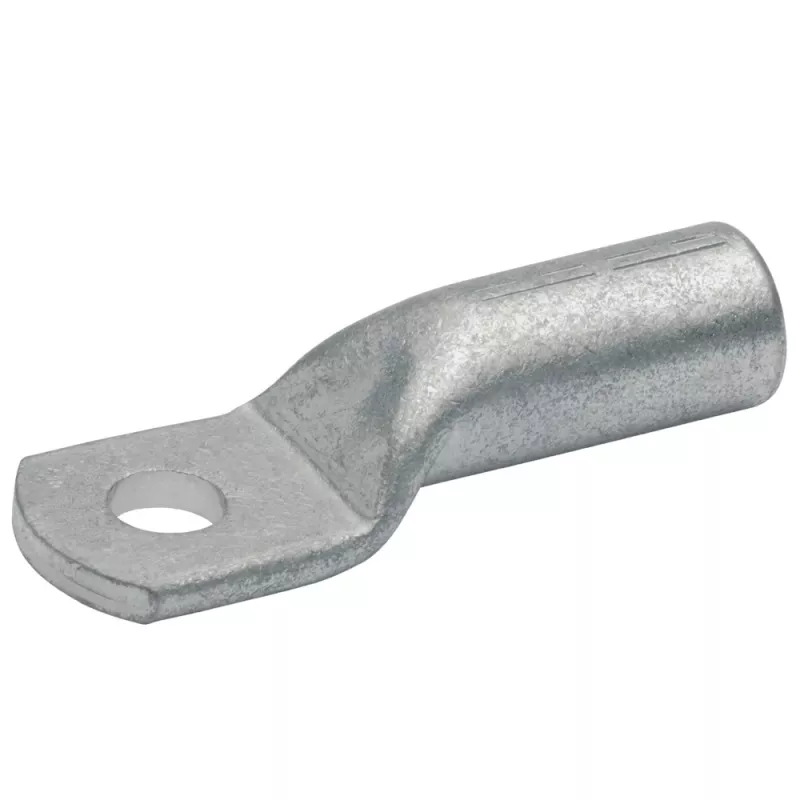

Klauke 106R12 capocorda a tubo, rame stagnato, 50 mm², foro bullone M12

The Klauke 106R12 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Made from electrolytic copper with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This lug is suitable for crimping onto copper conductors with a cross-section of 50 mm² and features a 12 mm (M12) bolt hole for secure fastening.

Advantages

Tin-plated surface provides high corrosion resistance and long service life. Seamless tube construction ensures uniform conductivity and mechanical strength. Complies with DIN 46235 standard for consistent quality. RoHS compliant for environmental safety.

Suitable for

• Power distribution and electrical installations
• Industrial machinery and control panels
• Automotive and marine electrical systems
• Renewable energy systems (solar, wind)

Key specifications

• Conductor Cross-Section: 50 mm²
• Bolt Hole Diameter: 12 mm (M12)
• Material: Electrolytic Copper, Tin-Plated
• Lug Type: Tubular Cable Lug
• Standard: DIN 46235
• Connection Method: Crimp
• Insulation: Uninsulated
• Operating Temperature: -50°C to +150°C
• Voltage Rating: Up to 1000 V
• Overall Length: 45 mm
• Palm Width: 22 mm
• Barrel Outer Diameter: 11.5 mm
• Barrel Inner Diameter: 10.5 mm
• Color: Metallic (Tin-Grey)
• Number of Bolt Holes: 1

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper conductor preparation. Always follow manufacturer guidelines for installation.
