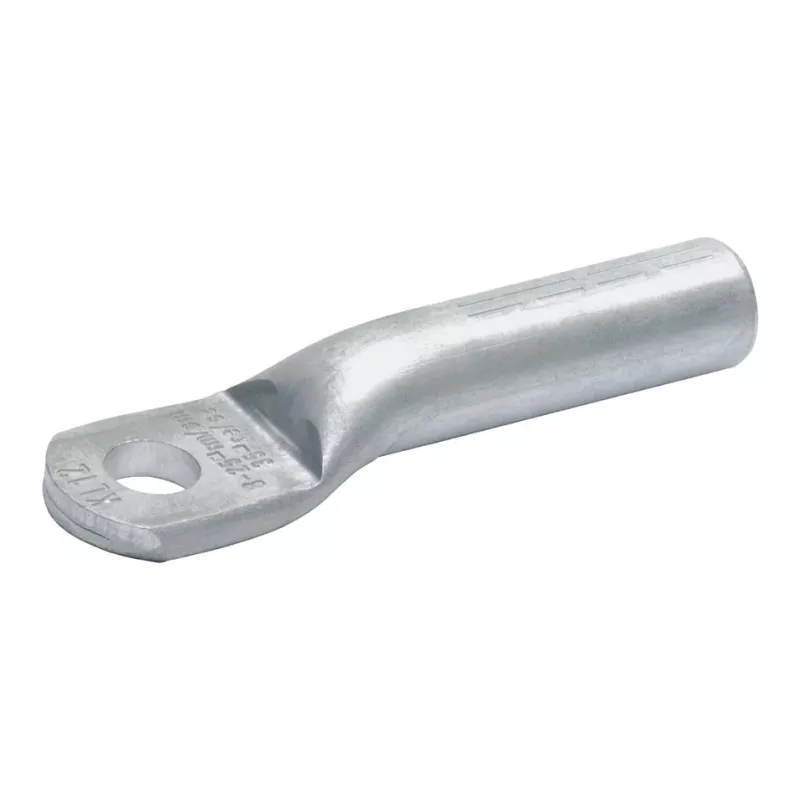

Klauke 207R10 capocorda a tubo in alluminio 70 mm² 86 mm lunghezza 10 pezzi

The Klauke 207R10 is a high-quality aluminium tube lug designed for the reliable termination of aluminium conductors. Manufactured by Klauke, a trusted brand in electrical connection technology, this compression lug ensures a secure and durable connection for applications up to 1 kV. The pack contains 10 pieces, making it suitable for both professional and industrial use.

Advantages

• High-quality aluminium construction for excellent conductivity and corrosion resistance.
• Complies with DIN 46267 standard for consistent performance.
• Suitable for use with standard compression tools for aluminium lugs.
• Wide operating temperature range from -50°C to +150°C.

Suitable for

• Termination of aluminium conductors in electrical installations
• Power distribution systems
• Industrial and commercial wiring
• Renewable energy applications such as solar and wind power

Key specifications

• Product Type: Tube Lug
• Brand Series: Klauke 207R Series
• Material: Aluminium
• Conductor Material Compatibility: Aluminium
• Conductor Cross-section: 70 mm²
• Connection Method: Compression
• Overall Length: 86 mm
• Inner Diameter (Tube): 11.2 mm
• Outer Diameter (Tube): 16 mm
• Quantity per Pack: 10 pieces
• Standard Compliance: DIN 46267
• Surface Finish: Untreated (Natural Aluminium)
• Operating Temperature Range: -50°C to +150°C
• Voltage Rating: Up to 1 kV

Recommendations

For optimal performance, use with a suitable compression tool designed for aluminium lugs. Ensure proper stripping and cleaning of the conductor before installation.
