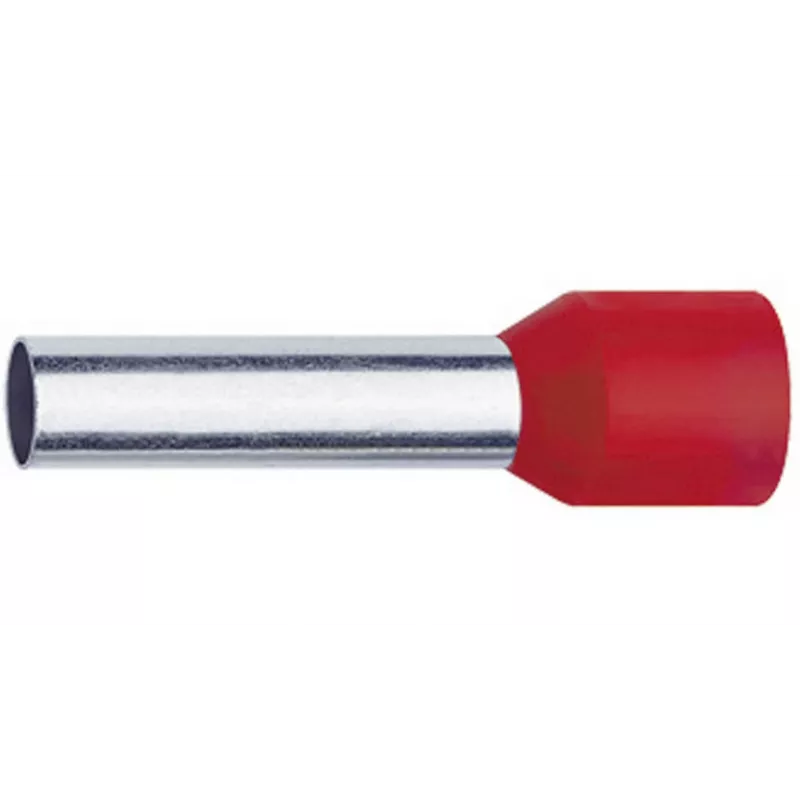

Klauke 47612 Capicorda isolato, 10 mm², rosso, lunghezza pin 12 mm, 100 pezzi

Electricians and panel builders use these red insulated wire ferrules to terminate fine-stranded conductors from 10 mm² to 12 mm². The funnel-shaped polypropylene collar guides individual strands into the tin-plated electrolytic copper tube, preventing splaying and ensuring a reliable crimp connection in terminal blocks, circuit breakers, and industrial controls.

Key specifications

• Conductor cross-section: 10 mm²
• Colour: red
• Metal tube length: 12 mm
• Insulation material: polypropylene (PP)
• Ferrule material: electrolytic copper, tin-plated
• Insulation type: insulated with plastic collar
• Quantity per pack: 100 pieces
• Standard compliance: DIN 46228 Part 4
• Temperature range: -40 °C to +105 °C
• Voltage rating: 600 V
• Flammability rating: UL 94 V-0
• Application: fine-stranded and super fine-stranded conductors
• Entry type: funnel-shaped
• RoHS compliant: Yes
• Ferrule type: single wire ferrule
• Connection method: crimp
• Conductor compatibility: flexible conductors

Why choose it

The tin-plated copper tube provides low contact resistance and corrosion protection, while the colour-coded collar allows quick identification of the conductor size. The funnel-shaped entry simplifies insertion of fine strands, reducing installation time and the risk of loose connections.

Ideal use cases

• Terminating flexible conductors in control cabinets
• Wiring terminal blocks in industrial machinery
• Preparing conductors for screw or spring clamp connections

Good to know

The ferrules are supplied in a pack of 100, suitable for maintenance and production environments. They comply with DIN 46228 Part 4, ensuring dimensional consistency with standard crimping tools.
