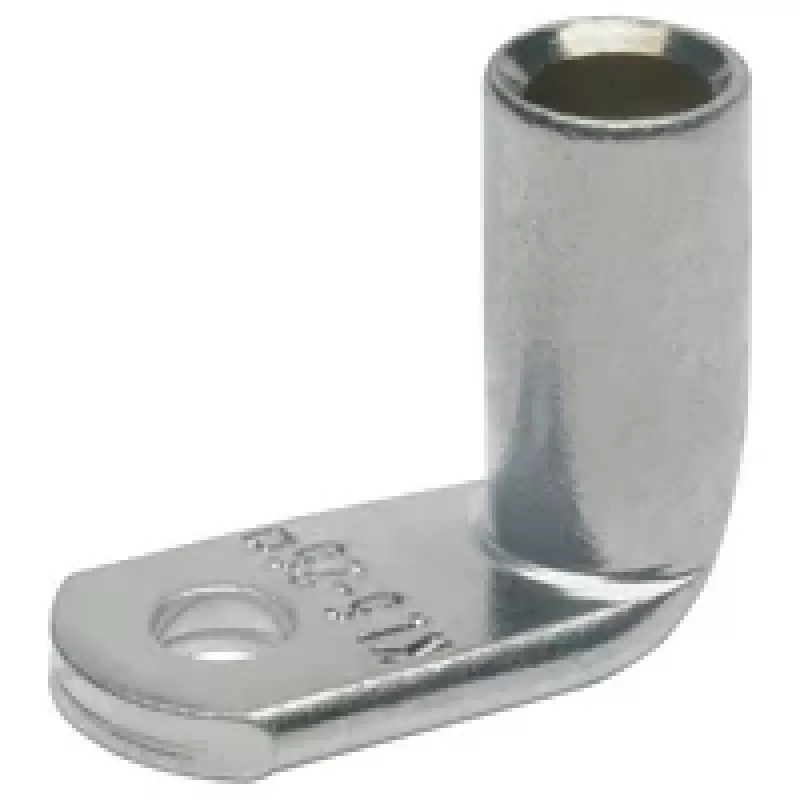

Klauke 49R12 capocorda a tubo - rame stagnato - piegato 90° - 120 mm²

The Klauke 49R12 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a galvanic tin plating, this angled (90°) lug ensures excellent conductivity and corrosion resistance. Suitable for stranded copper conductors (Classes 2, 5, and 6), it is ideal for professional crimping applications in industrial and commercial environments.

Advantages

Tin-plated surface prevents oxidation and ensures long-lasting performance. The angled design facilitates connections in tight spaces. Inspection hole allows visual verification of proper conductor insertion. RoHS compliant for environmental safety.

Suitable for

• Power distribution systems
• Control cabinets and switchgear
• Electrical installations requiring secure crimp connections
• Industrial machinery and equipment

Key specifications

• Product Type: Tubular Cable Lug
• Design: Angled (90°)
• Material: Electrolytic Copper (E-Cu), Tin-plated
• Cable Cross-section: 120 mm²
• Bolt Hole Diameter: 12 mm (M12)
• Overall Length (L): 67 mm
• Barrel Length (L2): 38 mm
• Barrel Outer Diameter (D): 17.5 mm
• Palm Width (B): 28 mm
• Palm Thickness (S): 3.5 mm
• Connection Method: Crimp
• Inspection Hole: Yes
• Standard Compliance: RoHS

Recommendations

For optimal performance, use with appropriate crimping tools and dies recommended by Klauke. Ensure conductor is fully inserted into the barrel before crimping. Verify connection integrity after installation.
