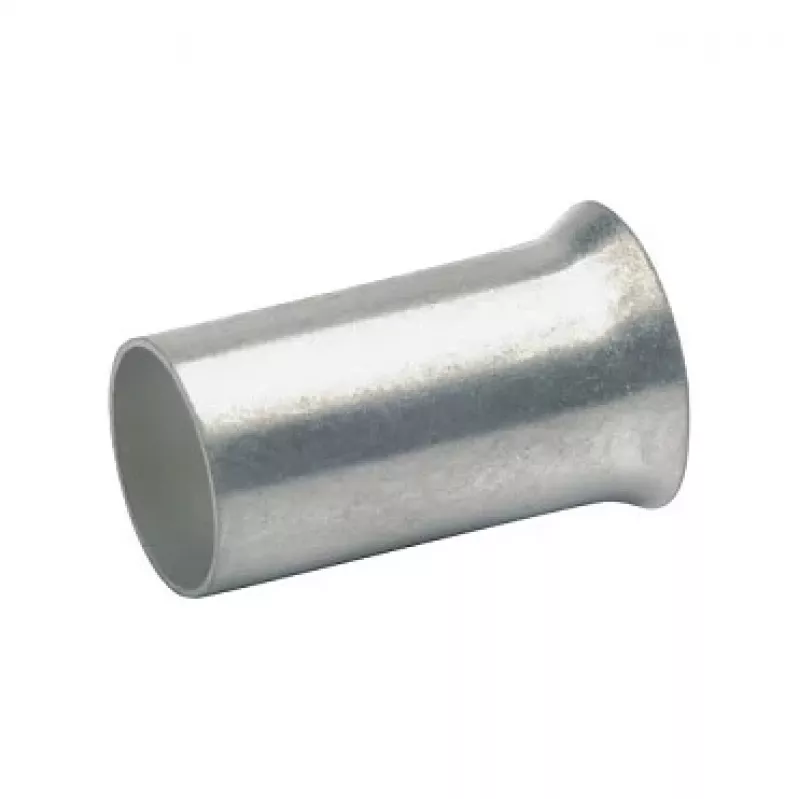

Klauke 716V puntalino - non isolato - rame - stagnato elettroliticamente - 0,75 mm² - dritto - metallico

The Klauke 716V is a high-quality wire end ferrule designed for reliable and secure connections in electrical installations. Made from electro-tinned copper, it ensures excellent conductivity and corrosion resistance. This uninsulated ferrule is suitable for fine-stranded and super fine-stranded conductors, providing a durable termination for wires up to 0.75 mm². Compliant with DIN 46228 Part 1, it meets stringent industry standards for performance and safety.

Advantages

Electro-tinned copper construction offers superior conductivity and protection against oxidation. The ferrule's straight shape and precise dimensions ensure easy insertion and a tight fit. Halogen-free and RoHS compliant, it supports environmentally friendly and safe electrical systems. With a wide temperature range from -40°C to +125°C and a maximum voltage rating of 600 V, it is suitable for demanding applications.

Suitable for

• Control cabinets and switchgear
• Automation and industrial machinery
• Electrical panel wiring
• Fine-stranded and super fine-stranded conductor terminations

Key specifications

• Product Type: Wire End Ferrule
• Insulation: Uninsulated
• Material: Copper
• Surface Treatment: Electro-tinned
• Wire Cross-Section: 0.75 mm²
• Contact Length (L1): 8 mm
• Total Length (L2): 14 mm
• Inner Diameter (d1): 1.3 mm
• Outer Diameter (d2): 1.6 mm
• Flange Diameter (d3): 2.5 mm
• Color: Metallic
• Standard: DIN 46228 Part 1
• Temperature Range: -40°C to +125°C
• Max. Voltage: 600 V
• RoHS Compliant: Yes
• Halogen-free: Yes
• Conductor Type: Fine-stranded and super fine-stranded
• Shape: Straight
• Packaging Unit: 100 pieces
• Manufacturer Series: 716

Recommendations

For optimal performance, use with a suitable crimping tool designed for wire end ferrules. Ensure the conductor is stripped to the correct length before insertion. Always follow manufacturer guidelines and applicable electrical codes.
