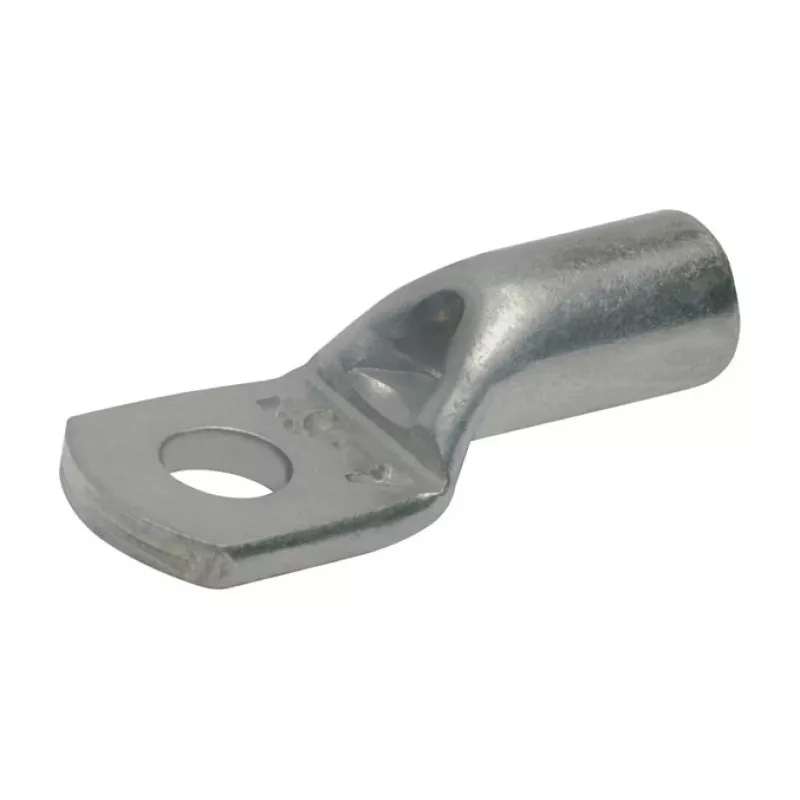

Klauke 92R5 capocorda tubolare, rame stagnato, 1,5 mm², M5, dritto, non isolato

The Klauke 92R5 is a high-quality tubular ring terminal designed for reliable electrical connections. Made from tin-plated copper, it offers excellent corrosion resistance and conductivity. This uninsulated terminal is suitable for wire cross-sections of 1.5 mm² and features a straight design with a bolt hole diameter of M5 (5 mm). Ideal for crimping applications in industrial and commercial settings.

Advantages

Tin-plated copper ensures long-lasting performance and protection against oxidation. The tubular barrel provides secure wire insertion and a strong crimp. Straight connection angle simplifies installation in tight spaces. Complies with DIN 46235 standards for quality assurance.

Suitable for

• Electrical connections in control cabinets
• Power distribution systems
• Automotive and marine wiring
• Industrial machinery and equipment

Key specifications

• Product Type: Tubular Ring Terminal
• Material: Copper (Cu), Tin-plated
• Wire Cross-section: 1.5 mm²
• Bolt Hole Diameter: M5 (5 mm)
• Terminal Type: Ring
• Barrel Type: Tubular
• Connection Angle: Straight
• Insulation: Uninsulated
• Colour: Metallic (Tin)
• Operating Temperature: Up to +105°C

Recommendations

For optimal performance, use with a suitable crimping tool designed for tubular terminals. Ensure proper wire stripping and insertion before crimping. Always follow manufacturer guidelines and applicable electrical codes.
