Klauke EKWF120ML Attrezzo idraulico di crimpatura a batteria con caricabatterie

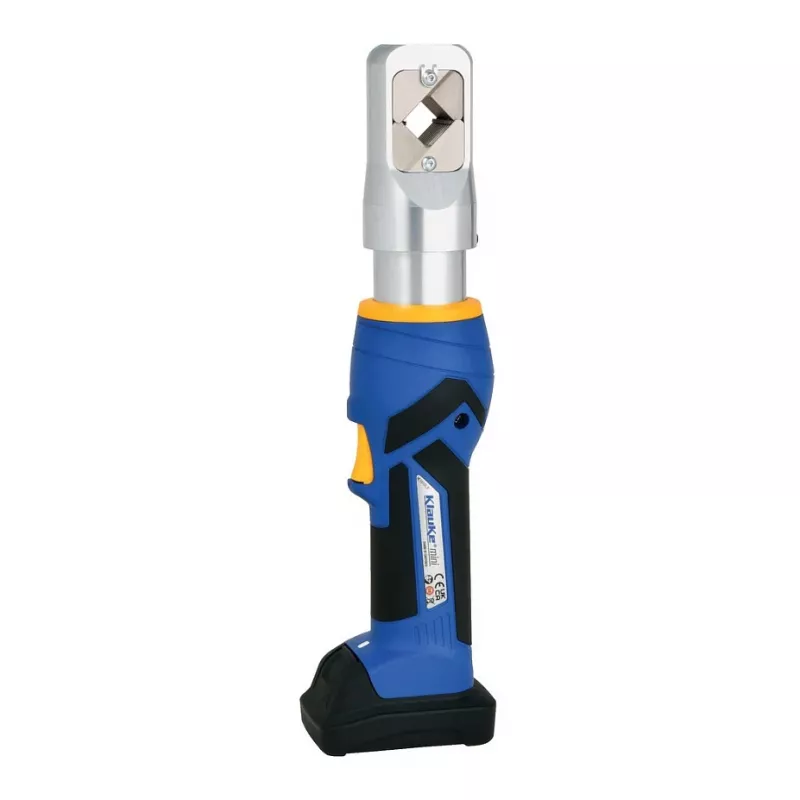

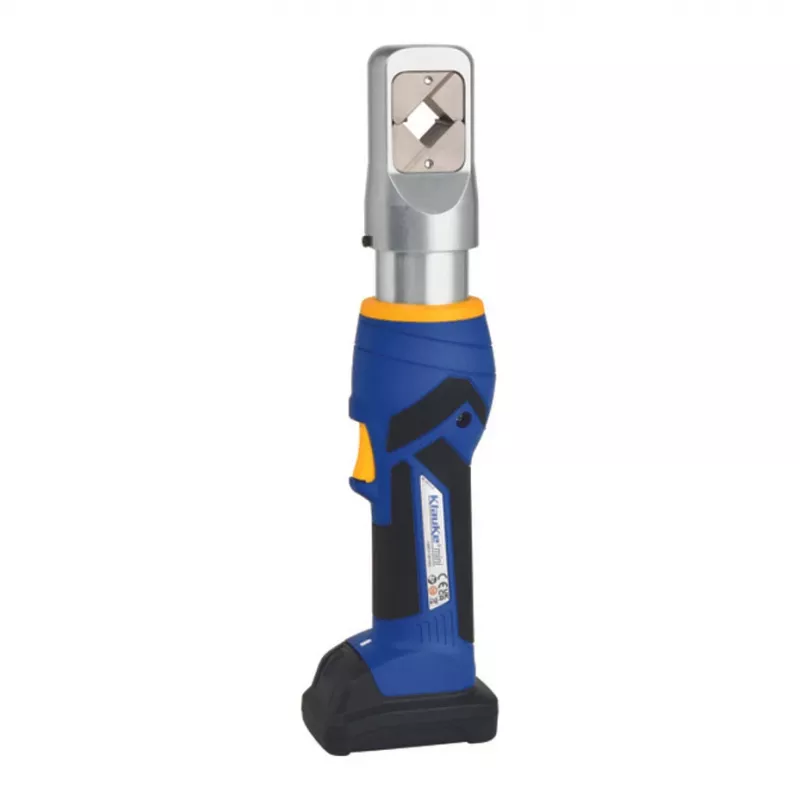

The Klauke EKWF120ML is a professional cordless hydraulic crimping tool designed for efficient and reliable crimping of copper cables. With a brushless motor and 360° rotatable head, it offers exceptional flexibility and performance for electrical installations. The tool is powered by a 10.8 V Li-Ion battery and includes a charger and plastic case for convenient transport and storage.

Advantages

This tool delivers a crimping force of 15 kN, ensuring secure connections. The automatic retraction after crimping speeds up workflow, while the LED work area illumination enhances visibility in low-light conditions. The one-button operating concept simplifies use, and the 2-stage hydraulic system provides efficient power management.

Suitable for

• Electrical contractors and installers
• Industrial maintenance and repair
• Automotive and renewable energy sectors
• Crimping copper cables from 6 to 50 mm²

Key specifications

• Crimping Force: 15 kN
• Crimping Range (Copper): 6 - 50 mm²
• Crimping Type: Hexagonal
• Battery: Li-Ion 10.8 V, 1.5 Ah
• Charging Time: Approx. 30 min
• Crimps per Charge (10 mm² Cu): Approx. 150
• Head Rotation: 360°
• Automatic Retraction: Yes
• Motor: Brushless
• Work Area Illumination: LED
• Operating Temperature: -10°C to +40°C
• Hydraulic System: 2-stage
• Piston Stroke: 12 mm
• Tool Control: One-button

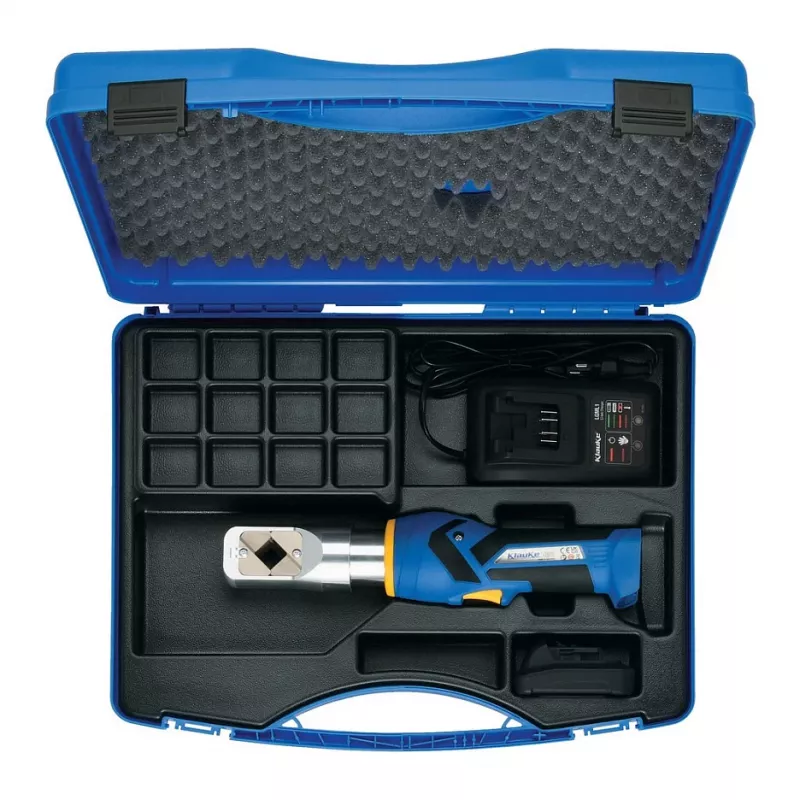

• Included: 1x Battery, 1x Charger, Plastic Case

Recommendations

For optimal performance, use only original Klauke batteries and chargers. Ensure the tool is properly maintained and stored in the provided case when not in use.
